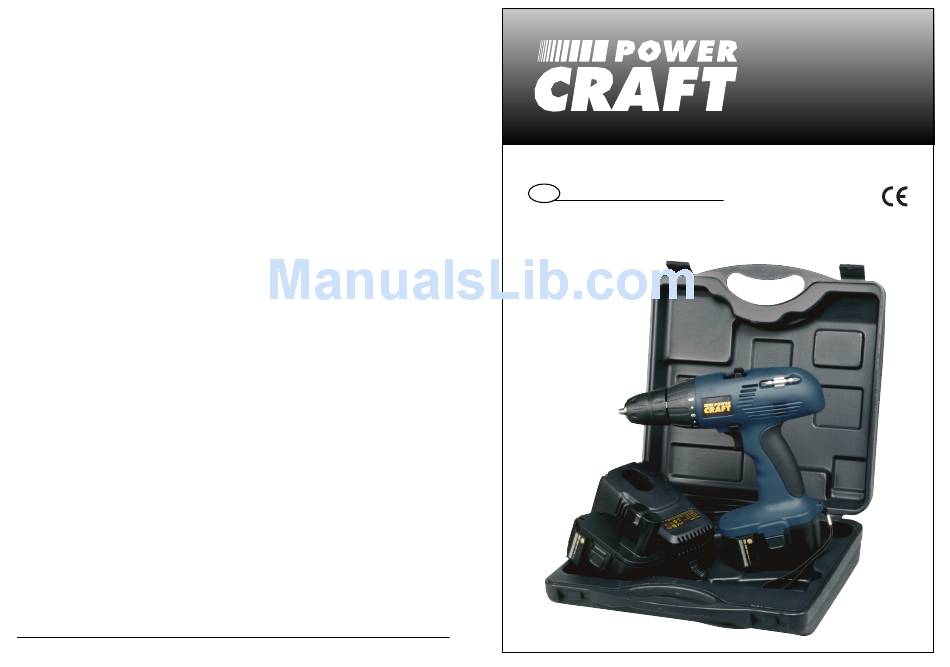

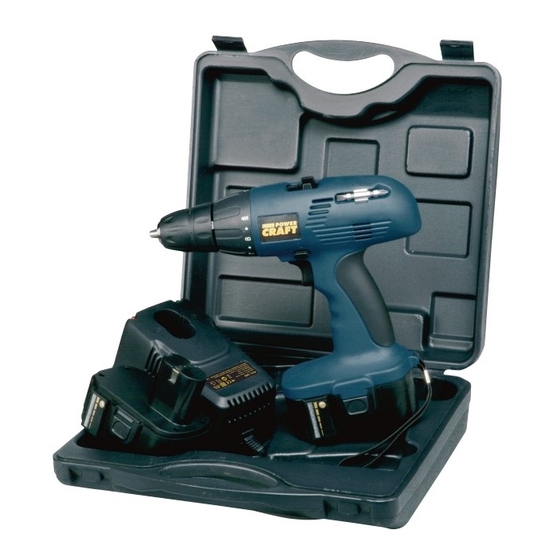

- Page 1 GB Subject to change USERS MANUAL Art. No. CDM6051 PCC-1800 07/06 www.servotool.nl GB-0604-11...
- Page 2 Exploded view Fig. A Fig. B Fig. C Powercraft Powercraft...
- Page 3 Spare parts list PCC-1800 Position no. Description Powercraft no. Switch 406654 Battery CDA6011 Keyless chuck 0,8 - 10 mm 406470 Bolt left for chuck 406403 Motor 406653 Left/right button 406656 Charger 406655 Fig.D Fig.E Fig.F Powercraft Powercraft...
- Page 4 Fig.G Powercraft Powercraft...
- Page 5 CORDLESS DRILL PCC-1800 The numbers in the text refer to the diagrams on pages 2 - 4 For your own safety and that of others, we recommend that you read this instruction manual carefully before using this saw. Keep this instruction manual and the documentation provided with the saw for future reference.
- Page 6 Product information Fig. A On/off switch Speed selector switch Torque setting ring Chuck Battery Direction switch 2. SAFETY INSTRUCTIONS Explanation of the symbols Read instructions carefully In accordance with essential applicable safety standards of European directives Class II machine – Double insulation – You don’t need any earthed plug. Denotes risk of personal injury, loss of life or damage to the tool in case of non- observance of the instructions in this manual.
- Page 7 Faulty and/or discarded electrical or electronic apparatus have to be collected at General safety instructions the appropriate recycling locations. Warning! Read all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. The term “power tool” in all of the warnings listed below refers to your mains operated (corded) power tool or battery operated (cordless) power tool.
- Page 8 If devices are provided for the connection of dust extraction and collection facilities, ensure • When the battery is charged the cordless drill has to be used until you start noticing that the these are connected and properly used. Use of these devices can reduce dust related power of the drill is diminishing and that the maximum rotational speed is not reached.
- Page 9 Switching the device on and off Service Fig. A Please use a qualified expert who uses original replacement parts to repair your power tool. • Depress the on/off switch (1). It regulates the speed of the appliance by transmitting power This will ensure proper functioning of the power tool.
- Page 10 15. Never throw the battery block onto a fire or into water. This will risk explosion! • Press the locking buttons (10) on both sides before removing the battery, and disengage the battery from the base of the appliance. Electrical safety OPERATION Always check that the voltage on the batterypack corresponds to the voltage on the rating plate.
