HOW PLUG 'N POWER WORKS

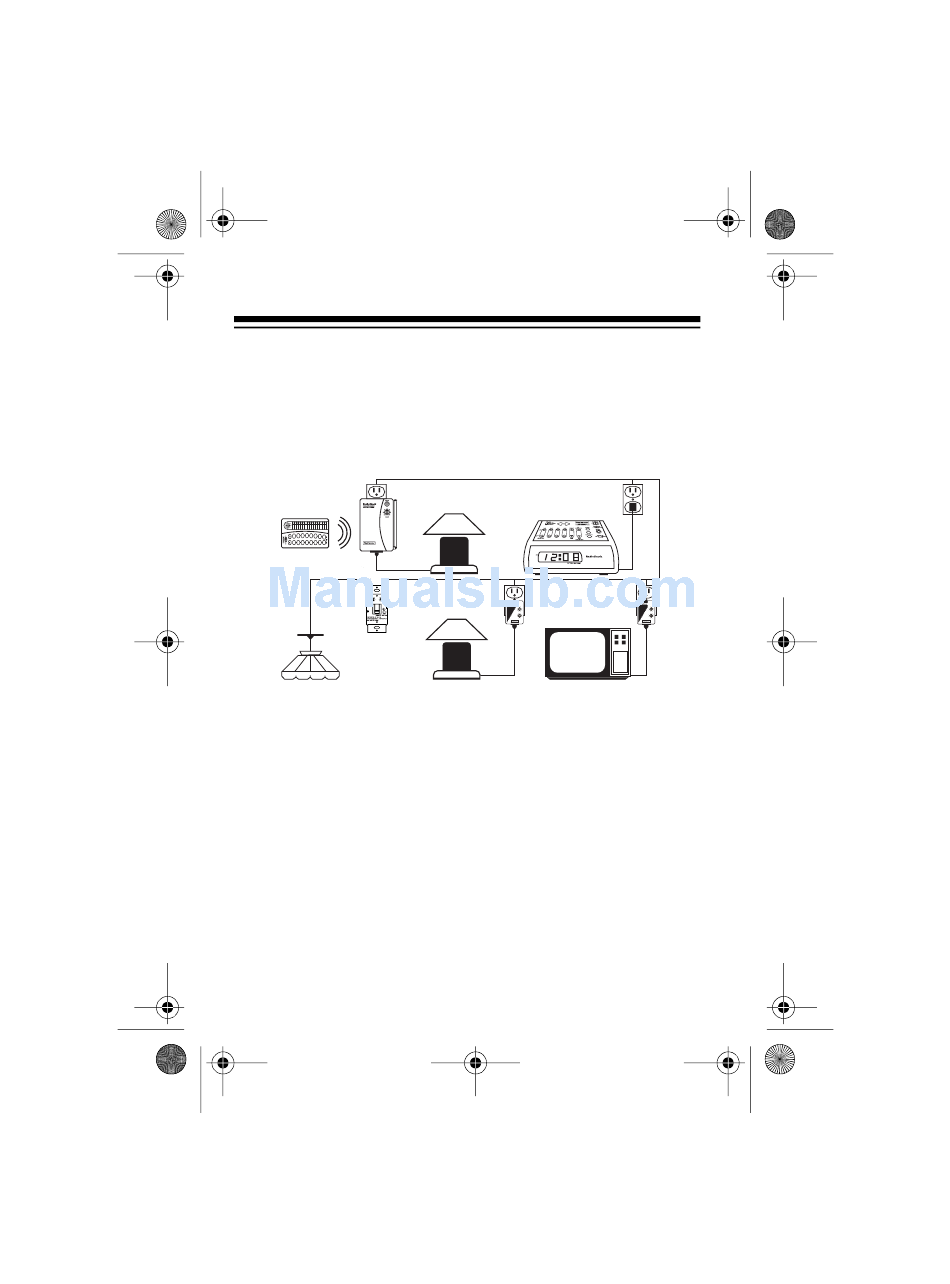

Plug 'N Power controllers such as your Wireless Remote
Control System send high frequency signals through your
household wiring. The remote control sends radio fre-
quency signals to the control system's receiver, which re-
transmits the signals over your house wiring to other Plug
'N Power modules.
1 A
13 5 M E
9 I
Be sure to carefully read this manual and the instructions
that come with the modules. They are designed to help
you get the most from your Plug 'N Power system.

SETTING CODES

Two different types of codes — house codes and unit
codes — let you control many different modules or
groups of modules within your home. It is important that
you understand how these codes are used before you set
up your system.
6
1 1
15 3 15 3
13 5 13 5
11 7 11 7
9 9
UNIT A UNIT
O C O A C
M E M E
K I G K I G
HOUSE HOUSE
APPLIANCE MODULE
