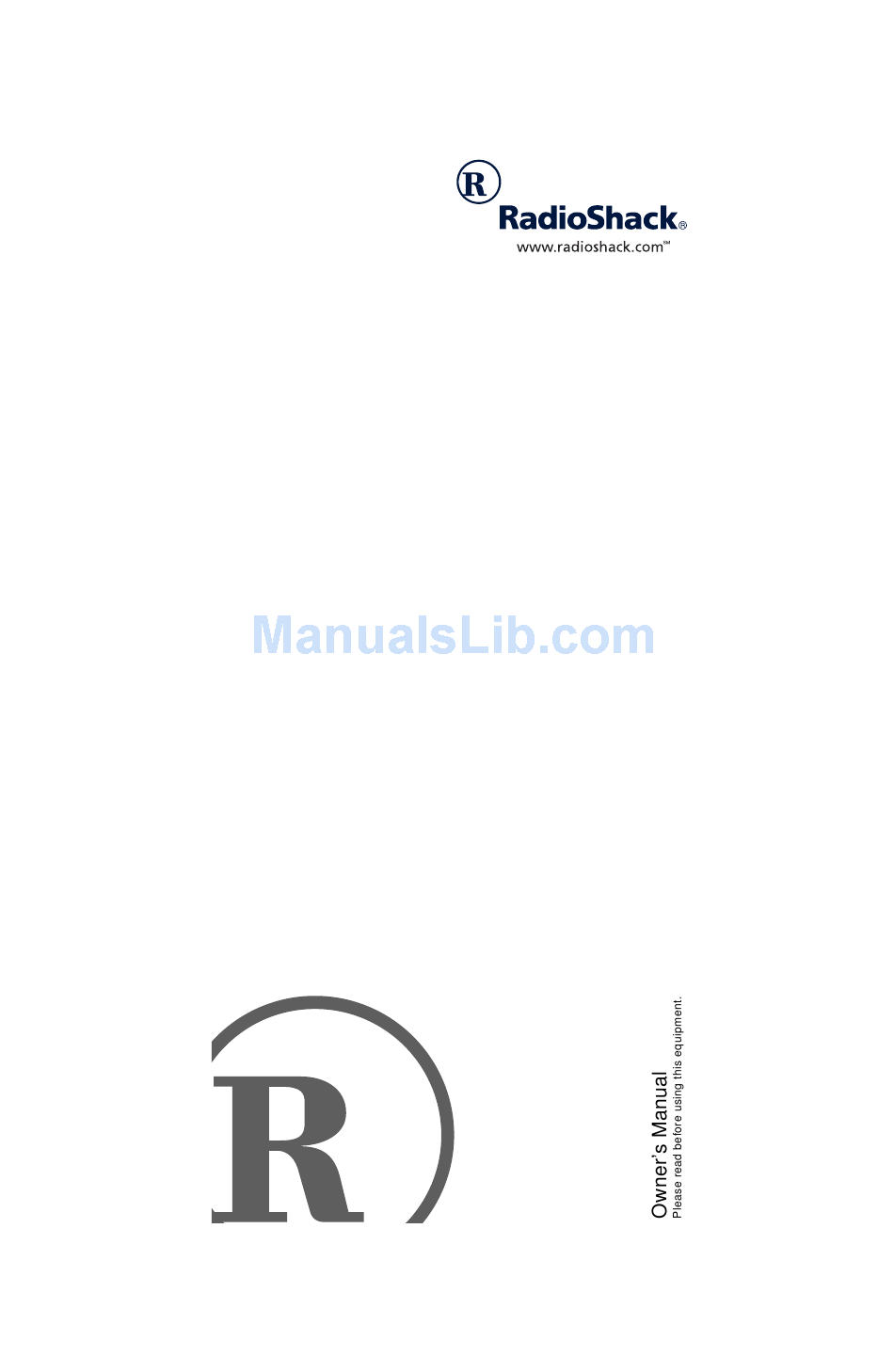

  • Page 1 5-In-One Learning Light-Up Remote...

  • Page 2: Table Of Contents

    ˆ Contents Features ... 4 A Quick Look at the Keys ... 5 Preparation ... 8 Installing Batteries ... 8 Device Types ... 9 Setting Up Your Remote ... 9 Programming Favorite Channel Scan ... 10 Resetting Scan ... 11 Programming Macros ...
  • Page 3 Manufacturers’ Codes ... 23 Amplifier Codes ... 23 Cable Codes ... 24 Home Automation Codes ... 25 Laser Disc Codes ... 26 Video Codes ... 26 Receiver Codes ... 26 Satellite Codes ... 28 Television Codes ... 29 VCR Codes ... 33 DVD Player Codes ...

  • Page 4: Features

    ˆ Features Your Radio Shack 5-In-One Learning Light-Up Remote allows you to control your TV, VCR, cable/SAT/DSS converter, DVD player, and an auxiliary device with one easy-to-use remote control. Its features include: Learning — stores and recalls additional remote control functions Sleep Timer —...

  • Page 5: A Quick Look At The Keys

    ˆ A Quick Look at the Keys Your Radio Shack 5-In-One Learning Light-Up Remote controls the most-used functions on your TV, VCR, ca- ble/SAT/DSS converter, DVD player, and an auxiliary device. After you set up the remote control, its command keys will work like the keys on your original remote controls.
  • Page 6 MENU, GUIDE, INFO, Use to view interactive menus and EXIT for TV, VCR, CBL/SAT, and DVD. MUSIC, MOVIES, Use to program instant tuning of SPORTS, and NEWS up to three channels per cate- gory (see “Programming Mac- ros” on Page 12). SCAN (FAV) Use to scan all or only favorite channels (see “Using Channel...
  • Page 7 Punch Fast through Forward to VCR Punch Record through to VCR STOP Punch Stop through to VCR PAUSE Punch Pause through to VCR * On some cable/satellite remote controls, do not punch through to VCR transport control. Instead, these keys act as Page Up and Page Down, respective- A Quick Look at the Keys CBL/ Fast...

  • Page 8: Preparation

    ˆ Preparation After installing the batteries (not included), you can im- mediately use the remote (with its factory-programmed settings) to control an RCA TV, VCR, and DIRECTV re- ceiver, as well as a Pioneer DVD player and auxiliary de- vice. To control other brands, you must perform some simple programming to overwrite the default parameters.

  • Page 9: Device Types

    When batteries become low, the remote control stops operating to protect stored settings. Replacing the bat- teries with new ones restores full functionality and does not require you to reprogram your remote control. Warning: Dispose of old batteries promptly and proper- ly.

  • Page 10: Programming Favorite Channel Scan

    3. On the remote control, press the desired device key , or CBL/SAT Note: For TV/VCR combinations, press use the VCR code listed for your model under “TV- VCR Combo Codes” on Page 38. If your TV/VCR combination also lists a TV code, you must program the TV separately by repeating Steps 3–5 to add volume control.

  • Page 11: Resetting Scan

    Note: Once you have programmed ite Channel Scan, you cannot use it for Channel Scan unless you reset it (see “Resetting Scan”). 1. Select for the favorite channel scan. CBL/SAT 2. Hold down until the red light blinks twice. 3. Press to start the program.

  • Page 12: Programming Macros

    3. Press . You can now use the remote for Chan- 9 9 6 nel Scan (see “Using Channel Scan” on Page 17). 4. Hold down until the red light blinks twice. PROGRAMMING MACROS Your remote has four macro keys ( , and ) that you can use to store up to SPORTS...

  • Page 13: Programming The Power Key

    PROGRAMMING THE POWER KEY Your remote can store a power on/off sequence to con- trol the power of up to four devices with a single key press. Once the desired sequence is stored, acts as a master power key when held down for at least 2 seconds.

  • Page 14: Resetting Reassigned Device Keys

    3. Press the device key for the device you are adding (for example, ) then press the device key for the unused key where the additional device will be assigned (for example, twice to accept the reassignment. 4. Set up the reassigned key to control your device (see “Setting Up Your Remote”...

  • Page 15: Learning Functions

    Learning Functions Do not use the following keys for learning: device keys, SLEEP SCAN LIGHT MUSIC , or NEWS RECORD Follow these steps to learn functions from other remotes. 1. Hold down until the red light blinks twice. 2. Press .

  • Page 16: Operation

    learned the function ( 4. Press the key for the learned function you want to delete twice. The LED blinks twice after the second press. 5. To clear additional functions stored on other keys, repeat Steps 1–4. ˆ Operation Note: The command keys on the 5-In-One Remote work the same as the keys on your original remote controls.

  • Page 17: Using The Light

    USING THE LIGHT Your remote has a backlight so you can see the keys in the dark. To turn on the light, press of the remote. When you press a key, the remote lights for a few sec- onds. To turn off the light, press USING CHANNEL SCAN Important: If you have set up Channel Scan, you cannot use Channel Scan until you...

  • Page 18: Changing Volume Lock

    grammed (see “Programming the Power Key” on Page 13). To turn off all devices, hold down seconds. You should see each device turn off in se- quence. Note: If you do not hold down only the current device turns off. To turn off all devices, you must hold down POWER CHANGING VOLUME LOCK...

  • Page 19: Volume Unlock On A Dvd

    Volume Unlock on a DVD 1. Press 2. Hold down until the red light blinks twice. 3. Press 9 9 3 4. Press . The red light blinks four times. VOL– Volume Unlock on an Auxiliary Device 1. Press 2. Hold down until the red light blinks twice.

  • Page 20: Locking/Unlocking The Sleep Timer

    3. Press again within 10 seconds to add SLEEP another 15 minutes to the sleep time. Repeat as desired up to a maximum of 60 minutes. 4. To deactivate the Sleep Timer, press any key. The red light stops blinking. Locking/Unlocking the Sleep Timer The 5-in-One Remote’s built-in sleep function can be en- abled even if another device has a sleep device.

  • Page 21: Checking Your Code

    device, starting with the most popular codes. Because of the library’s size, this procedure may take some time. When the red light blinks three times, the search of every code is complete. 6. Press once to lock in the code. Note: If the device turns off during the search, but does not operate after you lock in the code, begin the search again, pausing longer between key presses.

  • Page 22: Troubleshooting

    ˆ Troubleshooting 1. The button is slightly recessed to avoid accidental programming changes. You might need to use a pointed device, such as a ballpoint pen, to apply sufficient pressure. 2. If the remote control stops working after you have successfully tested the control for each device, or if you are unable to get the remote control to work at all, do the following:...

  • Page 23: Manufacturers' Codes

    ˆ Manufacturers’ Codes The following lists tell you which 4-digit codes to enter to set up the 5-In-One Remote Learning Light-Up Remote. Notes: • The remote control might not have every command featured on your original remote controls. • Use the supplied label to record the manufacturers’ codes for your remote-controlled devices.

  • Page 24: Cable Codes

    0022, 0207 Archer 0153, 0022, 0207, 0797 Cabletenna 0022 Cableview 0022 Century 0153 Citizen 0153, 0315 Colour Voice 0025 Contec 0019 Emerson 0797 Everquest 0015 Focus 0400 GC Electronics 0207 Garrard 0153 Gemini 0015, 0797 General Instrument 0476, 0810 GoldStar...

  • Page 25: Home Automation Codes

    Brand Pioneer 0144, 0533, 0877 Popular Mechanics 0400 Pulsar 0000 Quasar 0000 0021 RadioShack 0015, 0303, 0315, 0797, 0883 Realistic 0207 Recoton 0400 Runco 0000 Samsung 0144 Scientific Atlanta 0008, 0477, 0877 Signal 0015 Sprucer 0021 Starcom 0003, 0015 Stargate 0015, 0797 Starquest 0015...

  • Page 26: Laser Disc Codes

    Brand Universal X10 0167 0167 Laser Disc Codes Brand Denon 0059 Mitsubishi 0059 0059 Optimus 0059 Pioneer 0059 Video Codes Brand Archer 0160 GC Electronics 0160 Jebsee 0160 RadioShack 0160 Receiver Codes Brand 0531 Aiwa 0158, 0189, 0121, 0405, 1089, 1405 Capetronic 0531, 0690...
  • Page 27 Brand 0074 Jensen 0754 Kenwood 0027, 0042, 1027, 1052, 1313, 1569 Koss 0744 0744 Linn 0189 0039 Magnavox 0531, 0189, 0364, 0391, 1089, 1189 Marantz 0039, 0189, 1089, 1189 NTDE Geniesom 0744 Onkyo 0135 Optimus 0531, 0670, 0080, 0042, 0219, 0229, 0286, 0440, 0622, 0690, 0738, 0744, 0754, 0797, 0801, 0849, 1023, 1074...

  • Page 28: Satellite Codes

    Brand Technics 0039, 0309, 1308, 1309, 1518 Techwood 0364 Thorens 1189 Victor 0074 Wards 0158, 0014, 0189, 0080 Yamaha 0176, 1176 Zenith 0622, 0744 Satellite Codes Brand AlphaStar 0772 Echostar 0775, 0218, 0269, 1005 Expressvu 0775 General Instrument 0627, 0361, 0869 0775 Hitachi 0819...

  • Page 29: Television Codes

    Brand Uniden 0724, 0722, 0052 Zenith 0856 Television Codes Brand 0030, 0019 Admiral 0093, 0463 Aiko 0092 Akai 0030 Alaron 0179 America Action 0180 Anam 0180 Audiovox 0451, 0180, 0092, 0623 Baysonic 0180 Belcor 0019 Bell & Howell 0154, 0016 Bradford 0180 Brockwood...
  • Page 30 Brand Daewoo 0451, 0019, 0092, 0623, 0624 Daytron 0019 Denon 0145 Dumont 0017, 0019 Electroband 0000 Emerson 0154, 0236, 0463, 0180, 0178, 0019, 0179, 0623, 0624 Envision 0030 Fisher 0154 Fujitsu 0179 Funai 0180, 0179, 0171 Futuretech 0180 0047, 0051, 0451, 0093, 0178,...
  • Page 31 Brand Luxman 0056 0150, 0030, 0178, 0019 0060, 0030, 0019, 0056 Magnavox 0054, 0030, 0179, 1254 Majestic 0016 Marantz 0054, 0030 Matsushita 0250 Megatron 0178, 0145 Memorex 0154, 0250, 0463, 0150, 0178, 0179, 0056, 0016 Midland 0047, 0017, 0051, 0747 Mitsubishi 0093, 0150, 0178, 0019 Motorola...
  • Page 32 Brand Quasar 0051, 0250, 0165 0047, 0051, 0093, 0019, 0747, 1047, 1147, 1247, 1347, 1447 RadioShack 0047, 0154, 0165, 0180, 0030, 0178, 0019, 0056, 0747 Realistic 0154, 0165, 0180, 0030, 0178, 0019, 0056 Runco 0017, 0030 0180, 0019 Sampo 0030 Samsung 0060, 0030, 0178, 0019, 0056 Sansei...

  • Page 33: Vcr Codes

    Brand Techwood 0051, 0056 Teknika 0054, 0180, 0150, 0060, 0019, 0179, 0056, 0016, 0092 Telefunken 0056 Toshiba 0154, 0156, 0060, 1256 Vector Research 0030 Victor 0053 Vidikron 0054 Vidtech 0178, 0019 Wards 0054, 0165, 0030, 0178, 0019, 0179, 0056, 0016 White Westinghouse 0463, 0623, 0624 Yamaha...
  • Page 34 0240 Daewoo 0045, 0278 Denon 0042 Dynatech 0000 Electrohome 0037 Electrophonic 0037 Emerex 0032 Emerson 0037, 0184, 0000, 0121, 0043, 0209, 0278, 0479 Fisher 0047, 0104 Fuji 0035 Funai 0000 0060, 0035, 0048, 0240, 0202 Garrard 0000 Go Video 0432...
  • Page 35 Brand Logik 0072 0035 0240, 0043 MGN Technology 0240 0240, 0000 Magnasonic 0278, 0593 Magnavox 0035, 0039, 0081, 0000 Magnin 0240 Marantz 0035, 0081 Marta 0037 Matsushita 0035, 0162, 0454 Memorex 0035, 0037, 0048, 0039, 0047, 0240, 0000, 0104, 0209, 0162, 0046, 0268, 0299, 0307, 0454, 0479, 1037, 1162, 1262 Minolta...
  • Page 36 Brand Profitronic 0240 Proscan 0060, 0202 Protec 0072 Pulsar 0039 Quarter 0046 Quartz 0046 Quasar 0035, 0162, 0454, 1162 0060, 0035, 0048, 0240, 0042, 0202, 0619 RadioShack 0000, 1037 Radix 0037 Randex 0037 Realistic 0035, 0037, 0048, 0047, 0000, 0104, 0046 ReplayTV 0614, 0616 Runco...

  • Page 37: Dvd Player Codes

    Brand Teknika 0035, 0037, 0000 Thomas 0000 Tivo 0618 Toshiba 0045, 0043 Totevision 0037, 0240 Unitech 0240 Vector 0045 Video Concepts 0045 Videosonic 0240 Wards 0060, 0035, 0048, 0047, 0081, 0240, 0000, 0042, 0072 White Westinghouse 0209, 0072, 0278 XR-1000 0035, 0000, 0072 Zenith 0039, 0000, 0209, 0479...

  • Page 38: Tv-Vcr Combo Codes

    TV-VCR Combo Codes Brand Broksonic 0479 (TV:0463) Citizen 0278 Colt 0072 Curtis Mathes 0035 (TV:0051) Daewoo 0278 (TV:0624) Emerson 0278 (TV:0624), 0479 (TV:0463) Funai 0000 0035 (TV:0051), 0048 (TV:0093), 0060 (TV:0047), 0240 GoldStar 0037 (TV:0056) Harley Davidson 0000 Hitachi 0000 Lloyd’s...

  • Page 39: Specifications

    Brand Optimus 0162 (TV:0250), 0593, 1162, 1262 Orion 0000, 0479 (TV:0463) Panasonic 0035 (TV:0051), 0162 (TV:0250), 1162, 1262 Penney 0035 (TV:0051), 0037 (TV:0056), 0240 Quasar 0035 (TV:0051), 0162 (TV:0250) RadioShack 1037 0035 (TV:0051), 0048 (TV:0093), 0060 (TV:0047), 0240 Sansui 0000, 0479 (TV:0463) Sanyo 0240 Sears...
  • Page 40 Limited Ninety-Day Warranty This product is warranted by RadioShack against manufacturing de- fects in material and workmanship under normal use for ninety (90) days from the date of purchase from RadioShack company-owned stores and authorized RadioShack franchisees and dealers. EXCEPT AS PROVIDED HEREIN, RadioShack MAKES NO EXPRESS WAR- RANTIES AND ANY IMPLIED WARRANTIES, INCLUDING THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PUR-...
