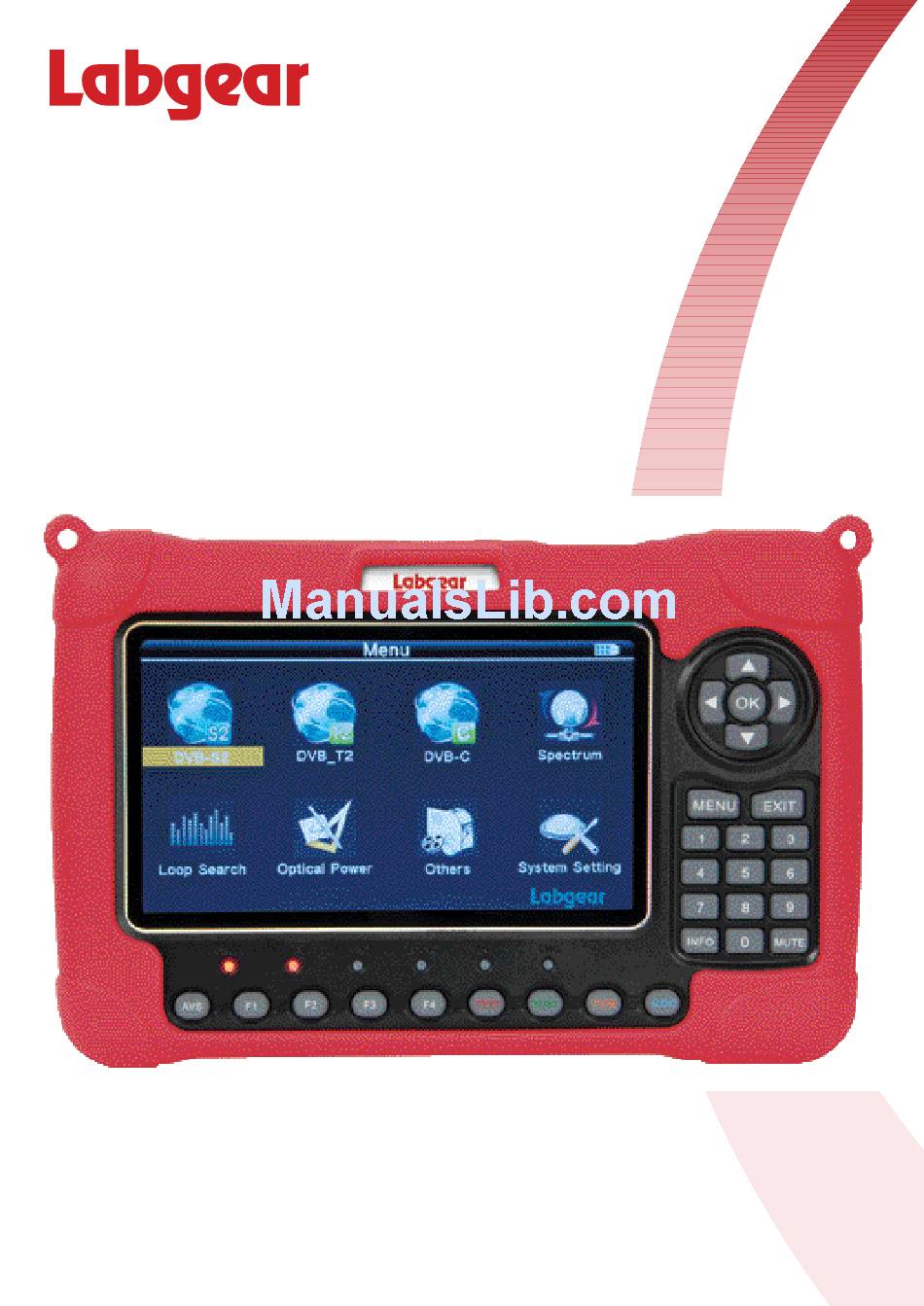

- Page 1 S601a Multiplatform Meter and Analyser User Guide...
-
Page 2: Table Of Contents
S601a - Contents Contents Safety warnings and important information .............. Introduction, Key Features,Pack Contents & Battery Charging ........ Product Overview ....................... 7-8.1 Connections & Main Menu ..................Satellite Find Menu ...................... 8.2-8.3 Quick Search and Loop Search ................. 8.4-8.6 Program Info, Angle Information & Multimedia ............ -
Page 3: Battery Charging
S601a - Introduction and Features 2 Introduction Thank you for choosing the Labgear S601a, a comprehensive instrument for analysing settingup and testing all types of satellite and terrestrial signal receiver and distribution systems, pre-loaded with masses of data and tools to make your job simpler and quicker. -
Page 4: Product Overview
S601a - Product Overview 6 Product Overview 10 11 No Description Function No Description Function LNB In Connect to satellite antenna cable Switch AV mode: AV Normal/AV IN/AV AV-S OUT (In AV out mode, speaker is off) ANT IN Connect to antenna of DVB-T/T2 signal... -
Page 5: Satellite Find Menu
S601a - Product Overview & Main Menu 7 Connections USB Device Charger/PSU CCTV In Connection Connection TV Antenna AV In Connection Optical Connection HDMI/AV Out to display Satellite LNB Connection 8 Main Menu Make the required connections as above, switch the power... - Page 6 S601a - Satellite Find Menu 8.1.1 Satellite Press u to enter the Satellite List and scroll q to find the satellite you want and press OK. 8.1.2 Local Frequency Scroll down to Local Frequency press u to enter the LNB List and scroll q to find the LNB type you want and press OK.
- Page 7 S601a - Quick and Loop Search 8.1.11 Quick Search In the Satellite Find menu when Satellite is selected if you press OK the screen to the right opens, press OK again to start quick search.If you have set the Longitude and Latitude in Angle Calculation, the angle of LNB, the orientation and elevation of antenna will all be displayed on the screen.
- Page 8 S601a - Program Info - Multimedia 8.2 DVB-T2 In the Main Menu select DVB-T2, Press OK to enter Scan Setup. Scroll down to adjust the settings below: 8.2.1 Country Setting Use the t u keys to select country. 8.2.2 Channel No.
- Page 9 S601a - Satellite Installation / Setting • Constellation: Press the Blue key to view the satellite constellation. 8.3 DVB-C In the Main Menu select DVB-C, Press OK to enter Scan Setup. Scroll down to adjust the settings below: 8.3.1 Country Setting Use the t u keys to select country.
- Page 10 S601a - Auto Scan / TP Manager • S/Q: Press the Orange key to enlarge signal strength and quality readings. • Constellation: Press the Blue key to view the satellite constellation. 8.4 Spectrum • Satellite-Spectrum • Terrestrial-Spectrum • Cable-Spectrum 8.4.1 Satellte Spectrum Use the t u keys to change Center Frequency;...
- Page 11 S601a - Channel Editor / EPG 8.5 Loop Search Select Loop Search, then press OK in Loop Search. 8 TPs will be shown. Press OK then use the t u keys to select a TP to monitor and press OK. The meter will then scan continuously through the 8 TPs.
- Page 12 S601a - Auto Scan / TP Manager • To Lock channels use the pq keys to select a channel, press the Green key icon will appear. Press the Green key again to unlock. • To Delete channels use the pq keys to select a channel, press the Orange key, use the pq keys to select “Delete Select”...
-
Page 13: Specifications
S601a - Specifications 8.7.4 Media Playback - Video, Music and Photos To playback media files you will need to connect a USB device holding the media files you want to play to the USB socket. • Movie - select the movie from the Main Menu Press the Green key to change the folder file view to show a detailed list, press Green again to return to folder view. -
Page 14: Troubleshooting
S601a - Troubleshooting Problem Possible Causes Solution Check to make sure meter power switch is on Display does not light Power switch is not on or battery power is low Connect to charger/mains adaptor and make sure it is switched on... - Page 15 Please recycle where facilities exist. Check with your Local Authority for recycling advice. © Labgear 2017 V1...
