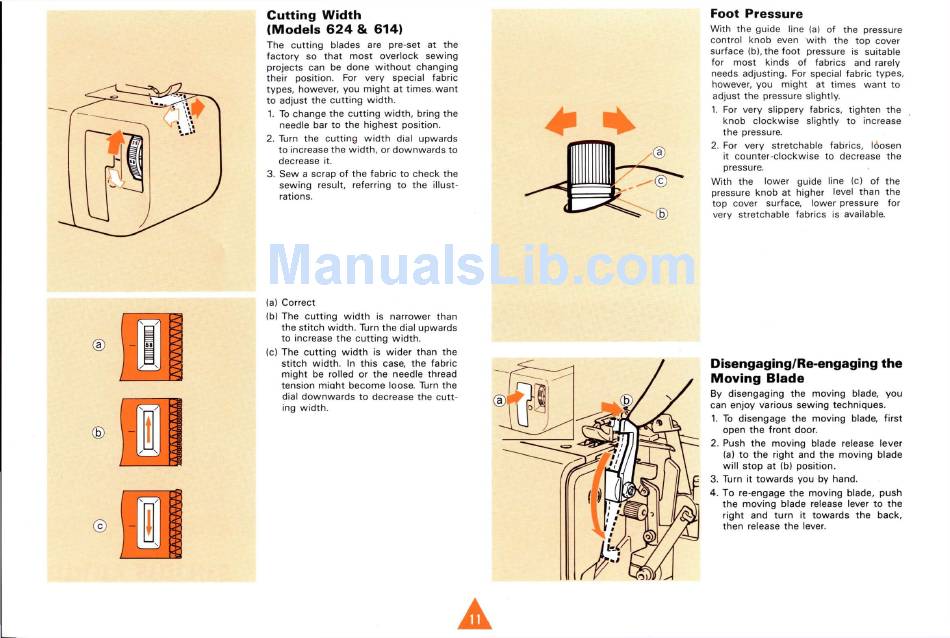

Cutting Width
(Models 6 2 4 & 614)
The cutting blades are pre-set at the
factory so that most overlook sewing
projects can be done w i t h o u t changing
their position. For very special
fabric
types, however, you might at times, want
to adjust the cutting w i d t h .
1. To change the cutting w i d t h , bring the
needle bar to the highest position.
2. Turn the cutting w i d t h dial upwards
to increase the w i d t h , or downwards to
decrease it.
3. Sew a scrap of the fabric to check the
sewing result, referring to the illust-
rations.
f
/
®
i
(a) Correct
(b) The cutting w i d t h is narrower than
the stitch w i d t h . Turn the dial upwards
to increase the cutting w i d t h .
(c) The cutting w i d t h is wider than the
stitch w i d t h . In this case, the fabric
might be rolled or the needle thread
tension miqht become loose. Turn the
dial downwards to decrease the cutt-
ing w i d t h .
©
A
Foot Pressure
With the guide line (a) of the pressure
control knob even w i t h the top cover
surface (b), the foot pressure is suitable
for
most
kinds
of
fabrics
and rarely
needs adjusting. For special fabric types,
however, you
might
at times want to
adjust the pressure slightly.
1. For very slippery fabrics, tighten the
knob clockwise slightly to
increase
the pressure.
2. For very stretchable fabrics, loosen
it counter-clockwise to decrease the
pressure.
With the
lower
guide line (c) of the
pressure knob at higher
level than the
top cover
surface,
lower pressure
for
very stretchable fabrics is available.
Disengaging/Re-engaging the
Moving Blade
By disengaging the moving blade, you
can enjoy various sewing techniques.
1. To disengage the moving blade, first
open the front door.
2. Push the moving blade release lever
(a) to the right and the moving blade
will stop at (b) position.
3. Turn it towards you by hand.
4. To re-engage the moving blade, push
the moving blade release lever to the
right and turn it towards the back,
then release the lever.
