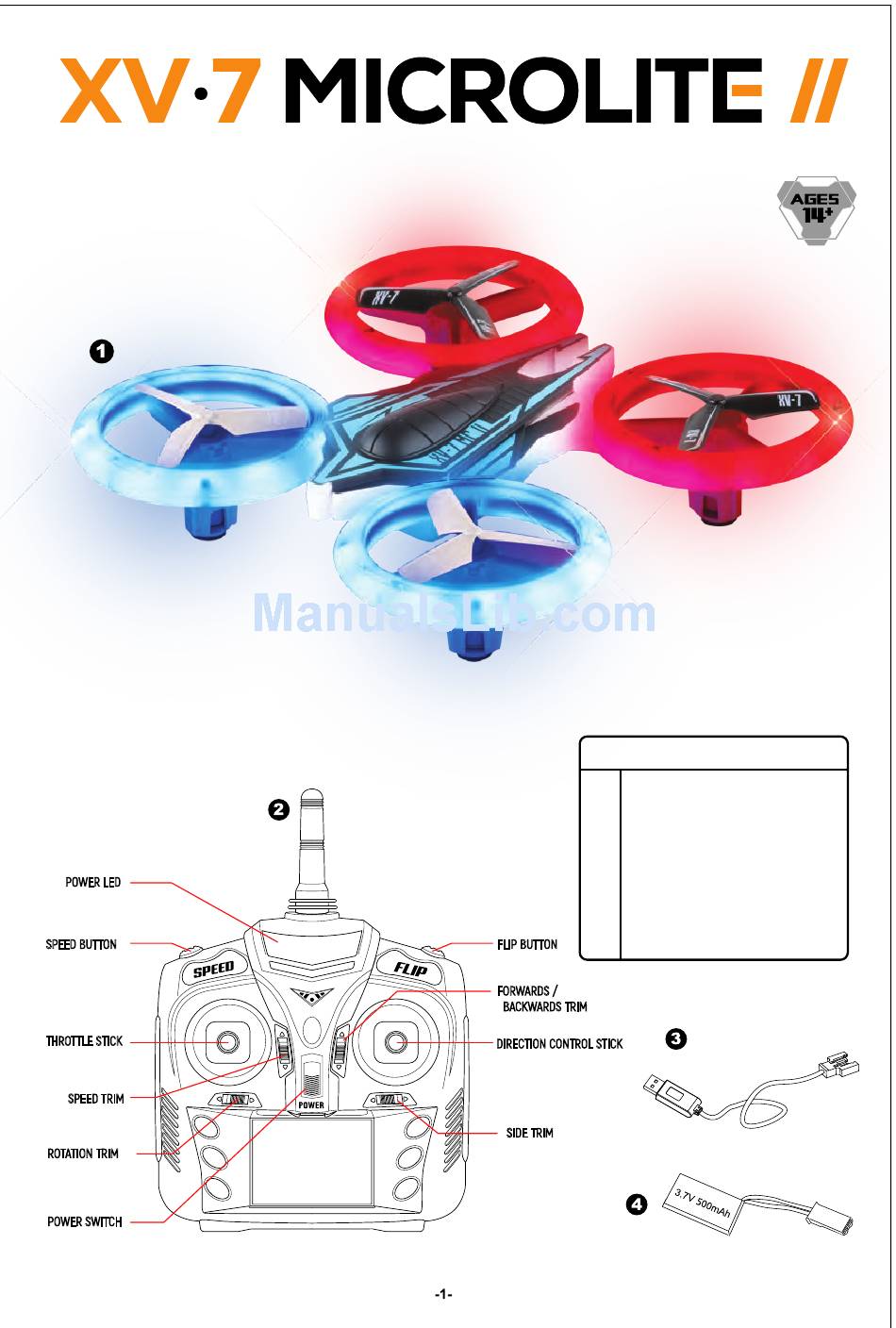

INSTRUCTION MANUAL
Thank you for your purchase of
the XV-7 Microlite II Quadcopter.
You' r e just moments away from
creating stunning aerial
acrobatics, leaving stunning light
trails in the dark !
POWER LED
SPEED BUTTON
THROTTLE STICK
SPEED TRIM
ROTATION TRIM
POWER SWITCH
INCLUDED CONTENTS
1
XV-7 Microlite II Unit
2
3
USB Charging Cable
4
3.7 Rechargeable Lithium Battery
Instruction Manual
Replacement Parts (not shown)
FLIP BUTTON
FORWARDS /
BACKWARDS TRIM
DIRECTION CONTROL STICK
SIDE TRIM
