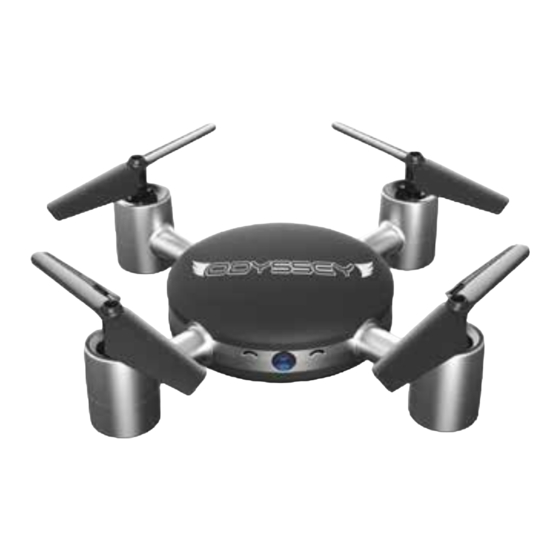

- Page 1 INSTRUCTION & REFERENCE MANUAL • Model no. ODY-1715 FOR AGES LIVE STREAMING VIDEO DRONE Thank you for your purchase of the Infinity NX Live Streaming Video Drone. You’re just moments away from creating stunning aerial acrobatics!
-
Page 2: Safety Guidelines
Please read this manual carefully before use and retain it for future reference. Product/spare parts included in this packaging WHAT’S IN THE BOX Infinity NX Drone Unit Rechargeable LiPo Battery 2.4 Ghz Radio Transmitter Smartphone Holder USB Charger USB Charger... -
Page 3: Orientation Confirmation
The Drone Unit Major parts of the Drone Propeller Protecting Motor Guard Camera Orientation Confirmation Head of the Propeller A Propeller B model (Clockwise Motor) (Counter Clockwise Motor) Left Right Propeller B Propeller A (Counter Clockwise (Clockwise Motor) Tail of the Motor) model Power on the model and make sure that the propellers are installed in the right... - Page 4 Smartphone App “MJX H” Introduction to the Control & Functions 1. Hide the interface 9. Mode Switches 15. 3D visual effects 22. App control switch 2. 180° screen eversion 10. Low-level/ 16. File play Medium-level 17. WIFI signal of 3. 360° Roll 23.
-
Page 5: Installing The Batteries In The Remote Control
Remote Control Button & Feature Locations Antenna Manual Flip & Power Roll Button Indicator Light Button Video Shooting Photo Button Trim C (Forward Trim Setting) Left Control Directional Stick Stick (Press down to enter SmartFly Mode) Trim D (Reverse Trim Setting) Trim B Trim A Strafe Left/Right... - Page 6 How to Charge the Drone Battery Disconnect the battery wire plug from the power supply wire plug . Pull on the silver foil to remove the battery from the Drone. Then connect the battery wire plug with the USB charging cable plug, and insert the USB interface to any USB charging outlet to charge the battery.
-
Page 7: Preparation For Flight
Preparation for Flight APP Remote control software download For Android systems, please visit our website www.mjxrc.com to download the software “MJX H”. For Apple IOS system, please go to the APP store to download the software “MJX H”. (Or download either mobile phone APP by scanning the QR code below.) QR Code QR Code Android... -
Page 8: Drone Calibration
Enter into the APP Control 1.Open the software 2.Cilck the “CONTROL” 3.Activate the mobile “MJX H” button. phone APP real-time remote control interface. Drone Calibration Please perform calibration for the first flight or when the flight performance is poor. Poor flight performance (except vibration created by camera mount) or even complete failure may result from out-of-date calibration. -
Page 9: Emergency Stop
Emergency Stop Whether using the controller or the smart phone APP, if you encounter an emergency, it’s easy to perform an immediate landing. Just pull the left control stick to the left-bottom corner while pulling the right control stick to the right-bottom corner (Pic.5). Note: If you are using the Remote Control Transmitter, perform the same operation for Emergency Stop. - Page 10 ● When the model is flying in Smart Fly (Headless mode), you should keep facing the forward direction. Otherwise, the model will be difficult to control. The model control is shown as below: Push up the forward/ Turn the sideward backward control stick, the flight control stick right, model will fly forward, away...
-
Page 11: Mode Switch
Mode Switch Touch “ ” to choose the control stick mode. Forward/Backward control Upward/Downward control Foward/Backward trimmer Leftward/Rightward Left/Right turning control control Left/Right turning Left/Right sideward trimmer flight trimmer M OD E 1 Forward/Backward control Upward/Downward control Foward/Backward trimmer Left/Right turning control Leftward/Rightward control... - Page 12 Forward/Backward control Upward/Downward control Foward/Backward trimmer Leftward/Rightward Left/Right turning control control Left/Right sideward Left/Right turning flight trimmer trimmer M OD E 4 Medium / Low Throttle Control Switch 1. Touch “ ” to change the throttle control. 2. When “ ”...
- Page 13 Draw the route downward, Backward and the drone will fly backward. Draw the route to the left, Leftward and the drone will fly left. flight Rightward Draw the route to the right, flight the drone will fly right. Trimming Functions 1.
- Page 14 2. If the drone turns to the left or right even when there is no control signal given, adjust the left/right trimmer. 3. If the drone spins even when there is no control signal given, adjust the left/right turning trimmer. Drone Control Whether using the smartphone app or the included remote control, the controls are similar.
- Page 15 Push down the throttle control stick–rotation speeds of the Downward rotors will decrease, and the drone will descend accordingly. Turn the left/right turning control stick to the left, and Turn left the drone will turn left. Turn the left/right turning control stick to the right, Turn right and the drone will turn...
-
Page 16: Troubleshooting
Troubleshooting Problem Possible Cause Solution The drone is 1. The model is in gyro 1. Put the model on the ground powered on and detecting state. or any flat & still surface. the indicator light 2. The gyro component is flashing quickly. is damaged. - Page 17 Notes on Changes & Modifications a) Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. b) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
- Page 18 Flying in extreme heat or cold can adversely affect your flying control and response of the vehicle. WARRANTY REFERENCE Attach your receipt and/or proof-of-purchase here as future reference, in case you ever need to contact Odyssey Toys about your warranty or any issues you may have.
- Page 19 GENERAL CARE & MAINTENANCE • Do not submerge the unit in any liquids. • Do not expose the unit to extreme hot or cold • Keep the unit dry. temperatures. • Disconnect the unit and monitor from USB • Do not hit, drop, or smash the unit. power sources when not in use.
- Page 20 20855 NE 16 Avenue No. C22 • Miami, FL 33179 United States For Customer Service please email: Care@OdysseyToys.com Please note the units model number and name in your email. Model no. ODY-1715 Infinity NX Live Streamin Video Drone Extra Parts Available! • Extra Batteries Visit Odyssey online to order: •...
