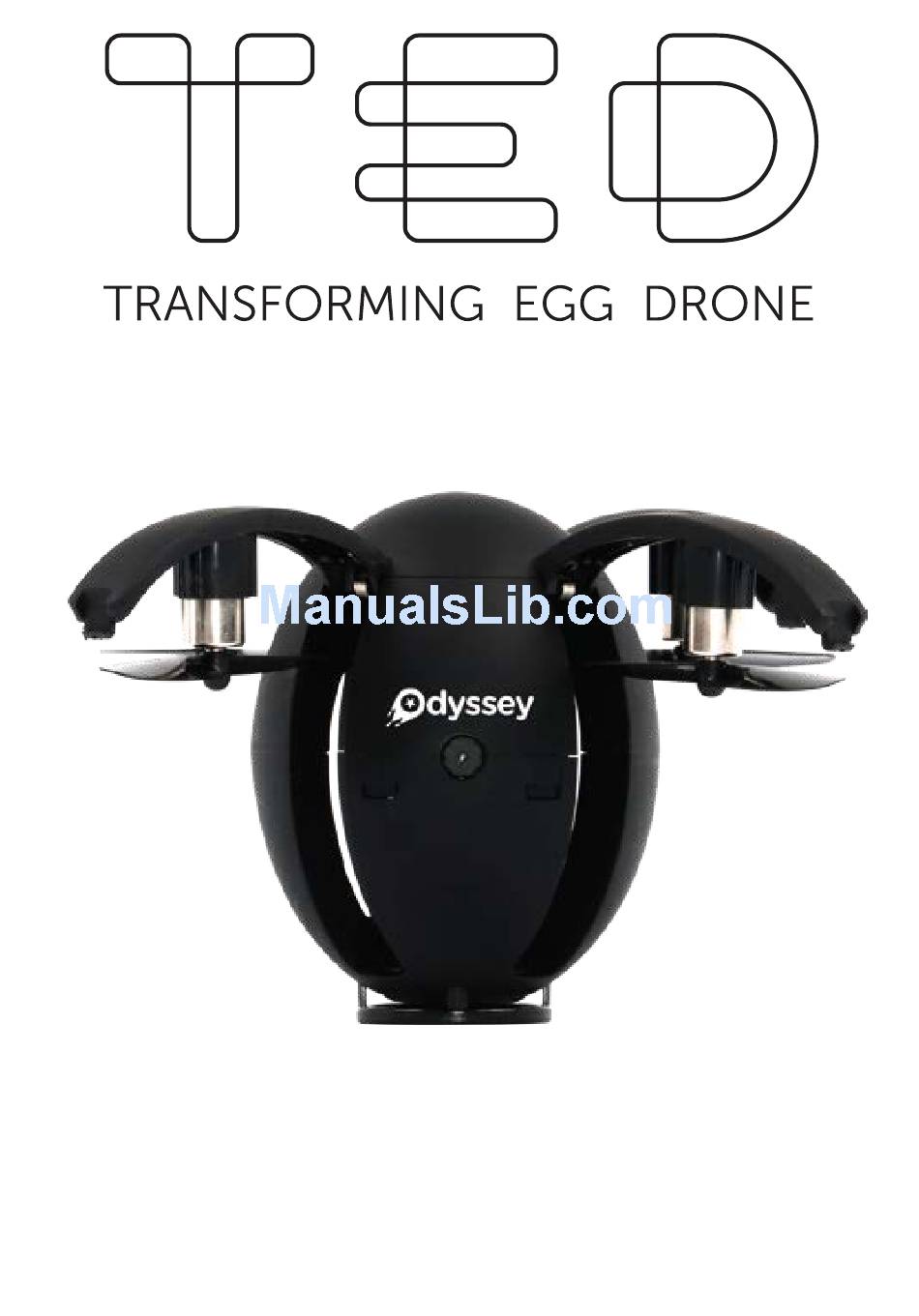

- Page 1 User Manual ODY-1719...
- Page 2 We hope you enjoy your purchase of the T.E.D. and that this user manual helps you get your drone off the ground and taking photos! Included Contents 1. T.E.D. Unit 2.4 Ghz 2. Rechargeable 3.7v Lithium Battery 3. USB Charging Cable 4.
- Page 3 Specifications Charging Time: About 40 minutes Flying Time: About 6-7 minutes Weight: 1.1 Ounce Controlling Distance: About 20 meters Battery for Quadcopter: 3.7V 200mAh Motor Blade Camera Power / Blade Release • short press to release blades • hold down for ON/OFF...
- Page 4 Flight Preparation Arm Folding Please Note: The T.E.D.’s arms and propel- lers are folded within the body and you must use the bottom button on the underside the drone to pop the arms out. Step 1: Remove your drone from its box and turn it over.
- Page 5 and back right blades are A and match with the A blades and the bottom left and top right are B and match with the B blades. Please ensure proper installation of the propellers to fly the drone. Step 1: The drone comes with four replace- ment propellers which should be used in case a propeller is lost or breaks due to an accident.
- Page 6 Charging the T.E.D. Battery Please Note: The T.E.D. comes with a partially charged battery, however in the case that you need to charge the battery please follow the instructions below. You do not need to remove the battery from the drone to charge it.
- Page 7 • Do not overcharge the battery, once the red light disappears, discontent the battery. • Do not use non-Odyssey batteries and battery chargers. Only use those which come packaged with this device. If you need additional batteries or chargers, they are available in our Parts Shop on www.od-...
- Page 8 • For safety and best practice, unplug the battery connection from the power source inside the drone when not in operation. Downloading the Application and Pairing Your Device to the Drone Notice: The T.E.D. quadcopter’s transmitter is application based; you must download the free app to fly the drone.
- Page 9 Step 1: Use your phone to scan the QR code or install the app by accessing the Play/iTunes store and searching for PANTONMA. Step 2: Press and hold the power button, on the bottom of the drone. The drone will turn on and the lights will flash.
- Page 10 Let’s Fly - Flying T.E.D. Menu Buttons Photo: Use the camera on your drone to take a photo. Video: Use the camera on your drone to record a video. Gravity Sensor: Fly the drone by using the phone’s movements as the controller. Hide/Show Display: Show or hide the throttle and Directional Sticks from your screen.
- Page 11 Light: Turn light on/off on the drone 3D VR: Allows you to watch your videos in virtual headset mode (not included). Back: Return to the previous Menu Right Stick: Moves the drone side to side and forward and backwards. Forward/Back Trim: Tap to center the drone if drifting forward or backward.
- Page 12 Left/Right Hand Switch: Switch the left and right joysticks, great for lefties. Turning Trim: Tap to center the drone if drifting in rotation or spinning in circles. Left Stick: Moves the drone up, down, and in rotations. Left Throttle Stick Right Directional Stick...
- Page 13 Flight Controls Please Note: Before every flight, the drone will have to be paired to the application. There are two ways to fly the T.E.D., by Gravity Sensor and Throttle Control. Gravity Sensor: This setting will allow your drone to move in any direction that you move your phone.
- Page 14 Touch Control: The directions below are for touch control which requires you to tap the Throttle Sticks on the phone. This is the most common way of flying drones. Step 1. With your T.E.D. on and connect- ed to the Wi-Fi, tap the Auto Take Off button.
- Page 15 Step 2. Use the left Throttle Stick to control altitude and direction. Use the right Throttle Stick to maneuver forward and backward & left and right directions. Ascending, Descending – Left / Right Throttle Stick Ease the left Throttle Stick upwards to make the T.E.D.
- Page 16 Speed There are two speeds on the drone which can be changed by tapping the speed button. Speed 1: 1 Tap Slow at 30% Speed 2: 3 Taps Fast at 100% Landing Gently press the Auto Landing button until landing on the ground. You can also initiate an emergency STOP by pressing the same button for 3 seconds.
- Page 17 Landing button. Please note you must reset while drone is connected to your device AND on a flat surface (not in flight). You can also manually reset the trim while in flight it. The following are a few adjustments that you can make to the flight characteristics if the Auto Trim does not fix drifting: Forward/Backward Trimmer: If the T.E.D.
- Page 18 Flying in SmartFly Tech mode and using Auto Back The T.E.D. features SmartFly Tech and a Auto Back feature. Generally when you are flying a drone, your front and back usually change position as you rotate and fly in different directions. This can make it difficult to tell which direction the drone is flying in.
- Page 19 SmartFly Tech Mode In this mode, you do not need to worry about the orientation of the drone. Whatever position the drone’s front is in before taking off will be your front IF you initiate the SmartFly Tech mode. This is useful if you would like to have to the drone return to your general direction (i.e.
- Page 20 Initiating SmartFly Tech & Auto Back Step 1 Before taking off, place the drone on a flat surface Step 2 Press the SmartFly Tech button, which is located above the right joystick. Step 3 Take flight and fly the drone. When you are ready to return home ensure that the back of the drone is facing you.
- Page 21 Taking Photos & Videos iPhone Users: When you connect your phone to the WiFi, your phone will ask you if you want to allow your camera to access photos. Choose Yes to allow the drone to take photos and save them to your gallery. Taking Selfies Step 1.
- Page 22 Step 5. Your photos/videos are also saved to your phone’s camera roll. To view the photos, go to your gallery and looking at the most recent photos and/or accessing the T.E.D. folder your phone has created for the photos. Step 6. Share your photos with your friends!
- Page 23 Odyssey Toys • Miami, FL 33179 For Customer Service please email: Care@OdysseyToys.com Please note the units model number and name in your email.Extra Parts Avail- able! Visit Odyssey online to order: • Extra Batteries • New rotor blades Model no. ODY-1719...
- Page 24 FCC ID: YAQKD90100130...
