INSTRUCTION & REFERENCE MANUAL • Model no. ODY-2017BF2

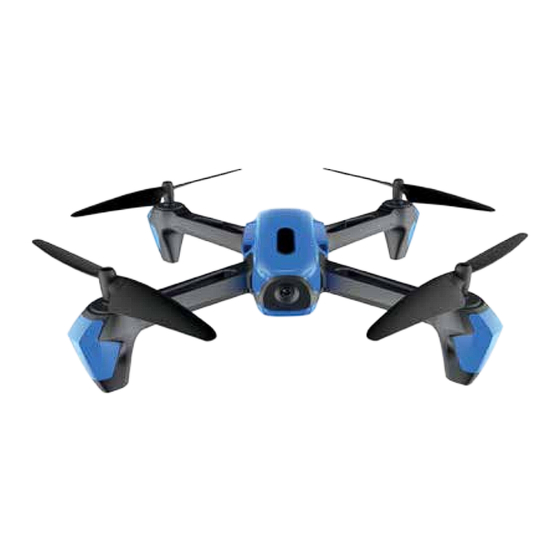

Thank you for your purchase of the Stellar NX Camera Drone. You're just
moments away from creating stunning aerial acrobatics!
1
2
3
4
2
SPEED SWITCH
LONG PRESS:
HEADLESS MODE
LEFT JOYSTICK
CONTROLS
ALTITUDE &
ROTATION
AUTO
TAKE-OFF/
AUTO
LANDING
WHAT'S IN THE BOX!
Stellar NX Drone Unit
2.4 GHz Transmitter
USB Charging Cable
3.7V Rechargeable Lithium Battery
POWER
SWITCH
CAMERA DRONE
5
VR 3D Headset
6
Spare Propellers
7
Smartphone Holder (not shown)
4
SHORT PRESS:
CAPTURE PHOTO
LONG PRESS:
CAPTURE VIDEO
RIGHT JOYSTICK
CONTROLS YAW,
DIRECTION & FLIPS
TRIM
ADJUSTMENTS
14 +
FOR AGES
1
3
5
6
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Odyssey Stellar NX
Summary of Contents for Odyssey Stellar NX
- Page 1 INSTRUCTION & REFERENCE MANUAL • Model no. ODY-2017BF2 FOR AGES CAMERA DRONE Thank you for your purchase of the Stellar NX Camera Drone. You’re just moments away from creating stunning aerial acrobatics! WHAT’S IN THE BOX! Stellar NX Drone Unit VR 3D Headset 2.4 GHz Transmitter...
- Page 2 NOTICE When charging with the included USB cable, the LED light will light The Stellar NX battery comes partially charged and is ready to fly. up red, indicating it is charging. Once charging is complete, the LED Refer to Remote Control Battery Installation section and use your light will turn off.
- Page 3 Your Stellar NX Camera Drone comes with a plastic smartphone holder equipped with a compression clip that lets you view the Stellar NX’s footage as it flies. This is done via the ODY Stellar NX app that you can download for free. Please refer to the ODY Stellar NX App Menu & Guide included in your package for further instructions on how to utilize the free app with your drone.
- Page 4 ADVANCED FEATURES • ALWAYS-ON AUTO HOVER & 360º FLIPS ALWAYS-ON AUTO HOVER Your Stellar NX Drone features an Always-On Auto Hover mode. Just launch the Drone into the sky, take it up to your desired altitude using the left joystick and then release the joystick. The Stellar NX will stay at the desired altitude without further commands needed.
- Page 5 CALIBRATING YOUR REMOTE CONTROL If the Stellar NX drone tilts to the left or right in flight when it should be hovering, you may need to calibrate trim. To do so: 1. Place your drone on a level surface.
- Page 6 PROPELLER REPLACEMENT Please Note: There are faint letters on the underside of the propellers which will help you distinguish blade from blade. The top left and back right blades are A1 and match with the A1 blades and the bottom left and top right are B1 and match with the B1 blades. Please ensure proper installation of the propellers to fly the drone.
- Page 7 TRIM ADJUSTMENT ON THE RADIO CONTROL TRANSMITTER Correct trim adjustment is required for error and erratic-free flying of the quadcopter. The adjustment is simple to do on the radio control transmitter, but it requires some patience. Please follow the instructions precisely. For best results, move the throttle up and raise the quadcopter approximately 2-3 feet (0.5-1 meter) in altitude.
- Page 8 Follow us at A division of Odyssey Toys Miami, FL 33179 United States For Customer Service please email: Care@OdysseyToys.com Please note the unit’s model number and name in your email. Model no. ODY-2017BF2 Stellar NX Camera Drone Extra Parts Available! •...
