14+
INSPIRING IMAGINATION
INSPIRING IMAGINATION
Instruction Manual
ODY–1228

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Build-A-Drone ODY–1228 and is the answer not in the manual?

Questions and answers

Related Manuals for Odyssey Build-A-Drone ODY–1228

Summary of Contents for Odyssey Build-A-Drone ODY–1228

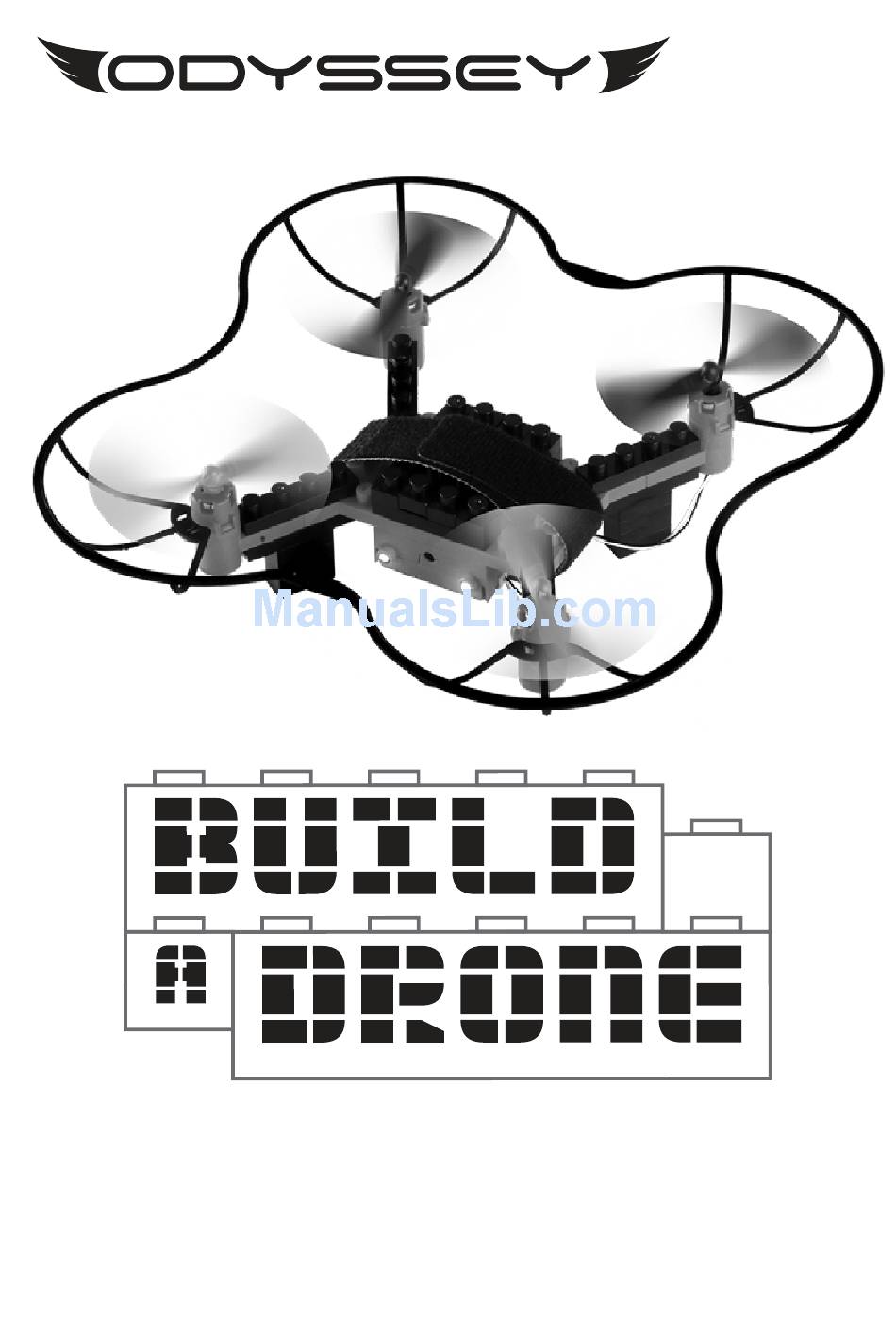

  • Page 1 INSPIRING IMAGINATION INSPIRING IMAGINATION Instruction Manual ODY–1228...

  • Page 2: Included Contents

    We hope you enjoy your purchase of the Build-A-Drone and that this user manual helps build your drone and fly it around your neighbor- hood. Included Contents 1. (2.4G) Remote Controller 2. Rechargeable 600mAh Li-Po Battery 3. USB Charging Cable 4.
  • Page 3 Controls Power switch 4 speed settings 360° Flip Directional stick Throttle stick Forward SmartFly tech trimmer Trim reset Not in use Headlight Not in use control Left turn Rightward trimmer trimmer One key Backward trimmer return Right turn trimmer Leftward trimmer Indicator Front Back...

  • Page 4: Specifications

    Specifications Charging Time: About 40-60 minutes Flying Time: About 5-6 minutes Controlling Distance: About 30-50 meters Battery for Quadcopter: 3.7V 600mAh 20c Li-Poly Battery for Transmitter: 3 AA batteries (not included) Flight Preparation Drone Assembly Part of the fun of the Build-A-Drone is building the body of the drone! Build it before you fly it, so please reference the assembly instructions (includ- ed in this kit) to see the three different ways you...
  • Page 5 Please Note: The propellers are lightly labeled with the motor arms they should be paired with. For example, propeller A1 will be attached to the front arm. Please see Step 1 in the Construction Guide as a guideline when attaching the propellers. Please ensure proper installation of the propellers to fly the drone.
  • Page 6 • Do not overcharge the battery, once the charging light turns off disconnect the battery. • It is recommended that you use Odyssey batter- ies and battery chargers only. If you need addition- al batteries or chargers, they are available in our Parts Shop on www.odysseytoys.com.
  • Page 7 Step 1 Using the included screwdriver, unscrew the screw from the back of the remote control battery pack and remove the battery lid. Step 2 Insert your 3 AA batteries making sure to line up the (+) and (-) signs. Step 3 Reattach the battery lid by screwing it into place.
  • Page 8 Step 2 Insert the USB charging cable into a computer. The charging cable indicating light bulb with turn on to indicate charging has begun. Please Note: Not all charging units will provide enough power to charge the lithium battery. A computer is typically the best source to power your drone.
  • Page 9 Step 2 In the center of the remote control is the red power button, press it once to turn ON. The control’s LED will blink twice then turn a solid red. The drone’s lights will be blinking continuously as well. Step 3 Move the left stick on the controller, the throttle stick, UP and then DOWN.
  • Page 10 Flying – Directions – Turning Ease the right throttle stick (Directional Stick) up and down to make the Build-A-Drone go forward and backward. Push the right directional stick left or right to turn the Build-A-Drone in a specific direction.

  • Page 11: Speed Adjustment

    Press and hold the left throttle stick left or right and the Build-A-Drone will rotate in that direction. 360° Flips The Build-A-Drone can flip to the left or the right. Please note that if the Build-A-Drone does not flip mid-flight, it is likely due to a low battery. Step 1 While hovering in mid-air press the top right button.
  • Page 12 change the speed level. • 1 Beep - Speed level one • 2 Beeps - Speed level two • 3 Beeps - Speed level three • 4 Beeps - Speed level four Trim If the Build-A-Drone veers in any direction when not ordered to do so, then an adjustment to the trim needs to be made.
  • Page 13 To trim right, press the Right Turn Trimmer button under the left throttle stick and to trim left press the Left Turn Trimmer button under the left throttle stick. Pitch Backward and Forward Trim: If the Build-A-Drone drifts backward or forward, trim accordingly.
  • Page 14 Automatic Trim Command To reset the drone to it’s normal settings, press the Trim Reset button located under the left throttle stick. This is the top circular button Flying in SmartFly Tech mode and using One-Key Return The Build-A-Drone features SmartFly Tech and a One-Key Return feature.
  • Page 15 IF you initiate the SmartFly Tech mode. This is useful if you would like to have to the drone return to your general direction (i.e. One-Key Return). One-Key Return In this mode, the drone will return back to your general direction automatical- ly.

  • Page 16: Care And Maintenance

    Step 4 Press the One-Key Return button, which is the down button located below the left throttle stick. Care & Maintenance • Do not submerge the unit in any liquids. • Keep the unit dry. • Disconnect the unit and monitor from USB power sources when not in use.

  • Page 17: Cautions And Warnings

    Cautions & Warnings • Suitable for ages 14 and up. Adult supervision is always recommended. • This product contains small parts which are a choking hazard. Keep away from small children. • Keep Quadcopter at least 10 feet away during use.
  • Page 18 Odyssey Toys • Miami, FL 33179 For Customer Service please email: Care@OdysseyToys.com www.OdysseyToys.com...
