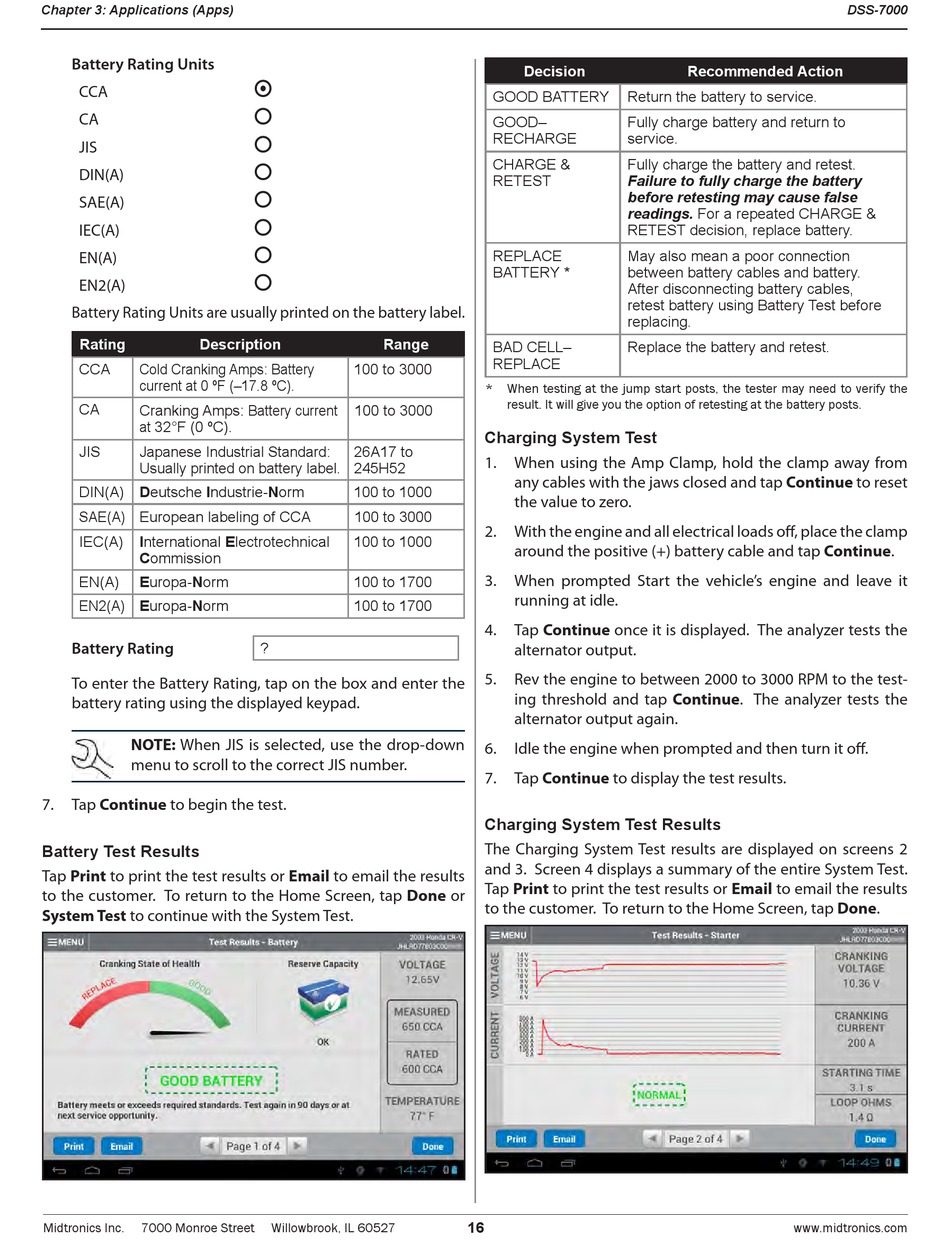

Chapter 3: Applications (Apps)
Battery Rating Units
CCA
CA
JIS
DIN(A)
SAE(A)
IEC(A)
EN(A)
EN2(A)
Battery Rating Units are usually printed on the battery label.
Rating Description
CCA Cold Cranking Amps: Battery
current at 0 ºF (–17.8 ºC).
CA
Cranking Amps: Battery current
at 32°F (0 ºC).
JIS Japanese Industrial Standard:
Usually printed on battery label.
DIN(A) Deutsche Industrie-Norm
SAE(A) European labeling of CCA
IEC(A) International Electrotechnical
Commission
EN(A) Europa-Norm
EN2(A) Europa-Norm
Battery Rating
To enter the Battery Rating, tap on the box and enter the
battery rating using the displayed keypad.
NOTE: When JIS is selected, use the drop-down
menu to scroll to the correct JIS number.
Tap Continue to begin the test.
7.

Battery Test Results

Tap Print to print the test results or Email to email the results
to the customer. To return to the Home Screen, tap Done or
System Test to continue with the System Test.
Midtronics Inc. 7000 Monroe Street








Range
100 to 3000
100 to 3000
26A17 to
245H52
100 to 1000
100 to 3000
100 to 1000
100 to 1700
100 to 1700
?
Willowbrook, IL 60527
Decision
GOOD BATTERY Return the battery to service.
GOOD– Fully charge battery and return to
RECHARGE service.
CHARGE & Fully charge the battery and retest.
RETEST Failure to fully charge the battery
before retesting may cause false
readings. For a repeated CHARGE &
RETEST decision, replace battery.
REPLACE May also mean a poor connection
BATTERY * between battery cables and battery.
After disconnecting battery cables,
retest battery using Battery Test before
replacing.
BAD CELL– Replace the battery and retest.
REPLACE
* When testing at the jump start posts, the tester may need to verify the
result. It will give you the option of retesting at the battery posts.

Charging System Test

1. When using the Amp Clamp, hold the clamp away from
any cables with the jaws closed and tap Continue to reset
the value to zero.
2. With the engine and all electrical loads off, place the clamp
around the positive (+) battery cable and tap Continue.
3. When prompted Start the vehicle's engine and leave it
running at idle.
4. Tap Continue once it is displayed. The analyzer tests the
alternator output.
5. Rev the engine to between 2000 to 3000 RPM to the test-
ing threshold and tap Continue. The analyzer tests the
alternator output again.
6. Idle the engine when prompted and then turn it off.
Tap Continue to display the test results.
7.

Charging System Test Results

The Charging System Test results are displayed on screens 2
and 3. Screen 4 displays a summary of the entire System Test.
Tap Print to print the test results or Email to email the results
to the customer. To return to the Home Screen, tap Done.
16
DSS-7000
Recommended Action
