DSS-7000

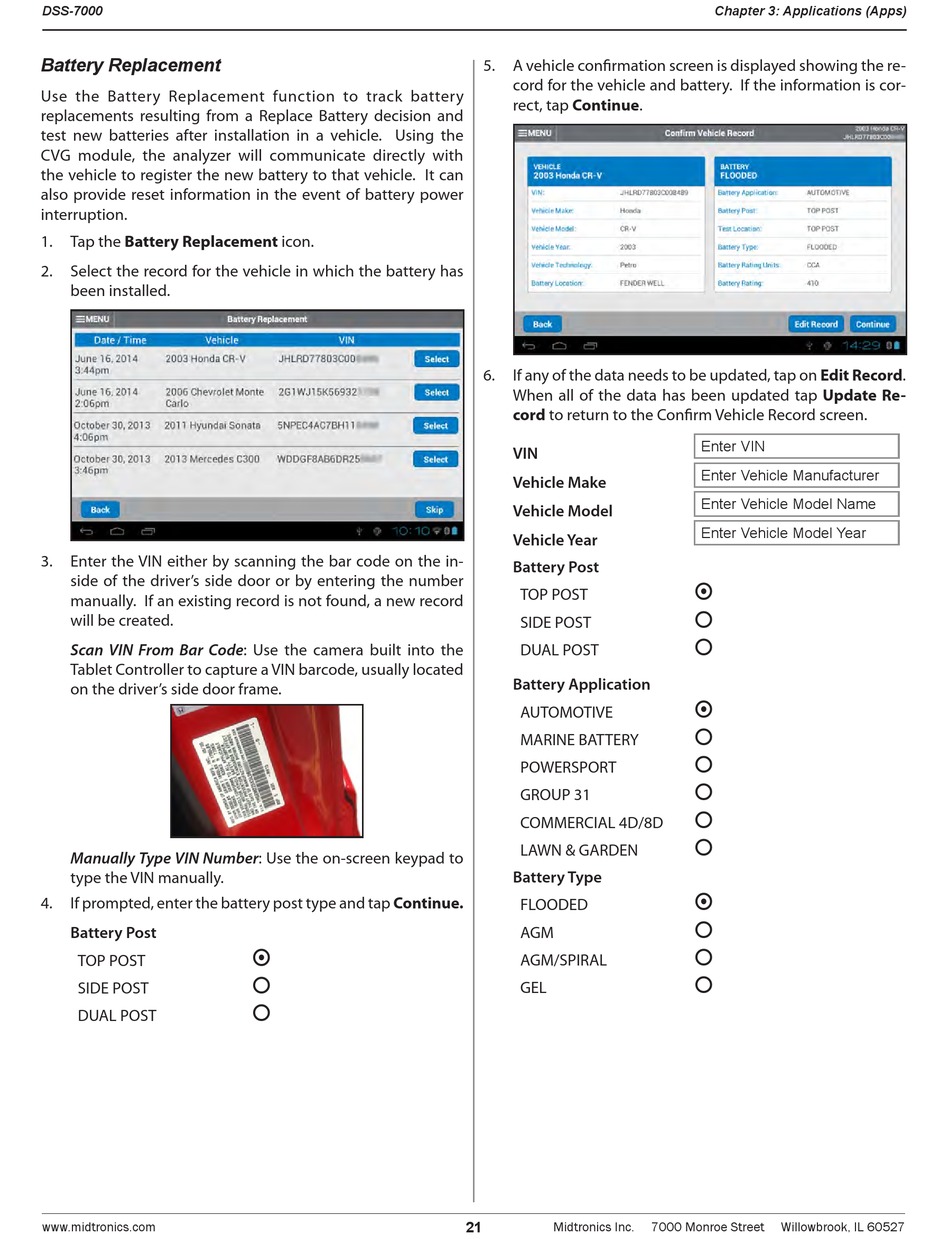

Battery Replacement

Use the Battery Replacement function to track battery
replacements resulting from a Replace Battery decision and
test new batteries after installation in a vehicle. Using the
CVG module, the analyzer will communicate directly with
the vehicle to register the new battery to that vehicle. It can
also provide reset information in the event of battery power
interruption.
1. Tap the Battery Replacement icon.
2. Select the record for the vehicle in which the battery has
been installed.
3. Enter the VIN either by scanning the bar code on the in-
side of the driver's side door or by entering the number
manually. If an existing record is not found, a new record
will be created.
Scan VIN From Bar Code: Use the camera built into the
Tablet Controller to capture a VIN barcode, usually located
on the driver's side door frame.
Manually Type VIN Number: Use the on-screen keypad to
type the VIN manually.
If prompted, enter the battery post type and tap Continue.
4.
Battery Post
TOP POST
SIDE POST
DUAL POST
www.midtronics.com



5. A vehicle confirmation screen is displayed showing the re-
cord for the vehicle and battery. If the information is cor-
rect, tap Continue.
If any of the data needs to be updated, tap on Edit Record.
6.
When all of the data has been updated tap Update Re-
cord to return to the Confirm Vehicle Record screen.
VIN
Vehicle Make
Vehicle Model
Vehicle Year
Battery Post
TOP POST
SIDE POST
DUAL POST
Battery Application
AUTOMOTIVE
MARINE BATTERY
POWERSPORT
GROUP 31
COMMERCIAL 4D/8D
LAWN & GARDEN
Battery Type
FLOODED
AGM
AGM/SPIRAL
GEL
21
Midtronics Inc.
Chapter 3: Applications (Apps)
Enter VIN
Enter Vehicle Manufacturer
Enter Vehicle Model Name
Enter Vehicle Model Year













