Battery Test Results

After the test the tester will display one of fi ve battery decisions with the complete results in a series
of screens as shown in Figure 14. Use the UP/DOWN ARROW keys to scroll through each result. To
send the results to an IR printer, press the PRINT soft key. To return to the Main Menu, press the END
soft key.
Battery decision
Decision
GOOD BATTERY
CHARGE & RETEST
REPLACE BATTERY
BAD CELL–REPLACE
All test results are stored on the SD Card. This data can be copied from the card and used
to verify / compare results.
Table 1: Battery Decisions and Recommendations
Recommended Action
Return the battery to service.
Fully charge the battery. Allow the battery to rest before retesting.
Failure to fully charge the battery before retesting may cause false
readings. If CHARGE & RETEST appears again after you fully charge
the battery, replace the battery.
Replace the battery and retest. A REPLACE BATTERY result may also
mean a poor connection between the battery cables and the battery.
After disconnecting the battery cables, retest the battery using the out-
of-vehicle test before replacing it.
Replace the battery.

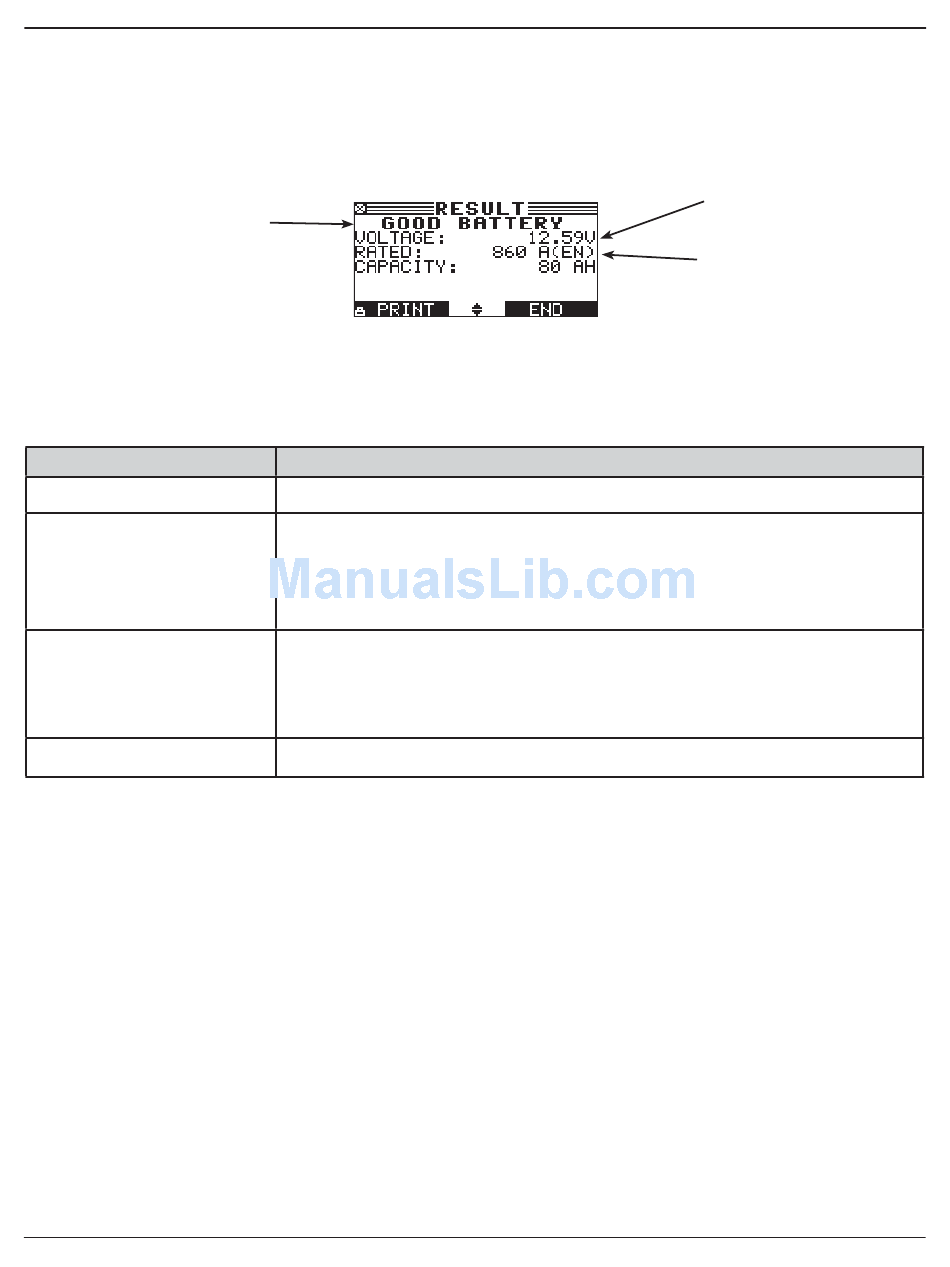

Figure 14
20
• •
Measured voltage
R a t i n g u n i t s y o u
selected for the test
