Edit; Adjust The Parameters - Hotone Binary IR Owner's Manual

Edit

1. Adjust the parameters

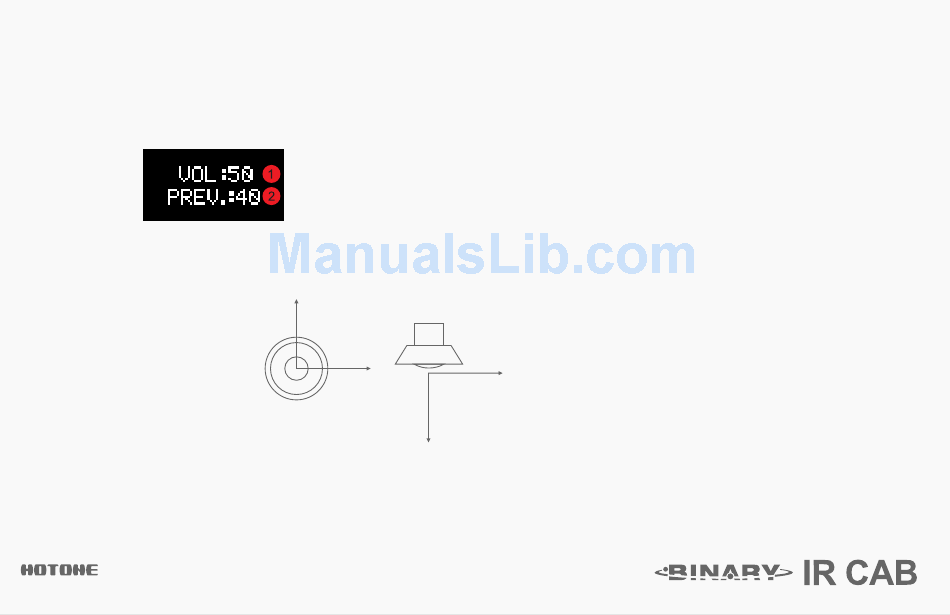

Use the onboard knobs to adjust the effect parameters. The screen display will be shown as below when adjusting:
1 - Current parameter value you're adjusting (shown: volume)
2 - Saved parameter value in the current patch (PREV. = Previous value)
y
x
0
x
0
z
The MIC POSITION X/Y controls the microphone horizontal/vertical position, set X=Y=0 to set the microphone on axis; Z controls
the distance between microphone and speaker cap.
The MIC TYPE lets you select a microphone type you like. Turn this knob to minimum to turn off microphone simulation.
