- Page 1 Binary Amp Owner's Manual...
- Page 2 I/Os make it easy to use, and an OLED screen offers clear, detailed display. Binary Amp is an amp simulator delivering precise classic amp sounds along with high quality cab simulators, and a built-in FX loop lets you expand your own sound.
- Page 3 Features ✪ Grown out of next-gen XTOMP technology ✪ Compact, easy-to-use dual footswitch amp simulator pedal ✪ Advanced CDCM modeling system ensures realistic playing experience ✪ Dual DSP-powered platform ensures high sound quality ✪ 24-bit A/D/A conversion, up to 110dB S/N ratio ✪...

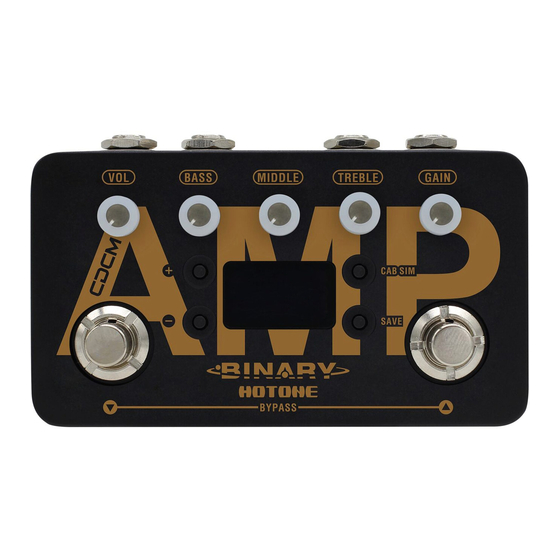

- Page 4 Panel Introduction 1-2.▽/△:For selecting presets, bypass, and other parameters. 3. +/- buttons: For selecting effects and adjusting parameters. 4. CAB SIM button: For switching cab sim on/off. 5. SAVE button: For saving parameter changes. 6. OLED screen: Shows bank/patch numbers, setting values and other operation info. 7.
- Page 5 Note: 1. If Binary Amp sounds harsh or weird when connecting to the input jack on your amp, try to connect to the amp’s FX Loop return jack. 2. TURN ON FIRST, TURN OFF LAST. Always mute the mixer/audio interface or turn down the volume knob on your amp before plugging or unplugging power jacks, cables, etc.
- Page 6 Display Plugging in your power supply will turn on the device. The main display will come up as below: 1 - Current bank/patch number 2 - Shows only when the cab sim is on 3 - Indicates the amp model you’re using in current patch DESIGN INSPIRATION...
- Page 7 Select a Patch/Bank Tap either ▽/△ footswitch once to change patches. Tap △ footswitch repeatedly to cycle through patches in the order A1, A2, A3, …, B5, then A1. Tap ▽ footswitch to change patches in the opposite order. DESIGN INSPIRATION...
- Page 8 Bypass Tap both ▽/△ footswitches at the same time. In Bypass status, all the LED knobs will go out. Note: This unit will be set to bypass status when you plug in the power jack. DESIGN INSPIRATION...
- Page 9 Edit 1. Adjust the parameters Use the onboard knobs to adjust the effect parameters. The screen display will be shown as below when adjusting: 1 - Current parameter value you’re adjusting (shown: volume) 2 - Saved parameter value in the current patch (PREV. = Previous value) DESIGN INSPIRATION...
- Page 10 Edit 2. Select a different effect Use the +/- button to change to another amp: The inverted bank/patch number indicates that the current patch has been edited. DESIGN INSPIRATION...
- Page 11 Edit 3. Adjust power amp and room settings Press the CAB SIM button to switch cab sim on/off status in the current patch. A speaker icon will show up when the cab sim is on. The cab sim model will automatically follow the amp you set. Note: If you change to another patch before saving your edits, all your changes will be lost.
- Page 12 Save Hold the SAVE button to activate save function. The screen will be shown as below: Use the +/- buttons to choose a location. Tap the SAVE button to confirm saving. Tap either footswitch to cancel saving and go back to edit status. DESIGN INSPIRATION...
- Page 13 Amp Models List* Name Based On Cab Sim (Not shown in Binary Amp) FRED HBE Friedman BE100 FRED 4x12 RECT LEAD Mesa/Boogie Dual Rectifier RECT 4x12 CHEF CLN Matchless Chieftain CHEF 2x12 USA 2C+ Mesa/Boogie Mark II C+ RECT 4x12...
-
Page 14: Specifications
Specifications Numbers of Effects: 16 Numbers of Patches: 10 (2 banks x 5 patches) Digital Processing: 24-bit A/D/A conversion, 44.1 kHz sample rate Frequency Response: 20 Hz-20 kHz S/N Ratio: Up to 110dB Input Impedance: 1M Ohms Output Impedance: 100 Ohms Power Requirement: DC 9V, center negative Current Consumption: 200mA minimum Dimensions: 121mm (D) x 72mm (W) x 47mm (H)
