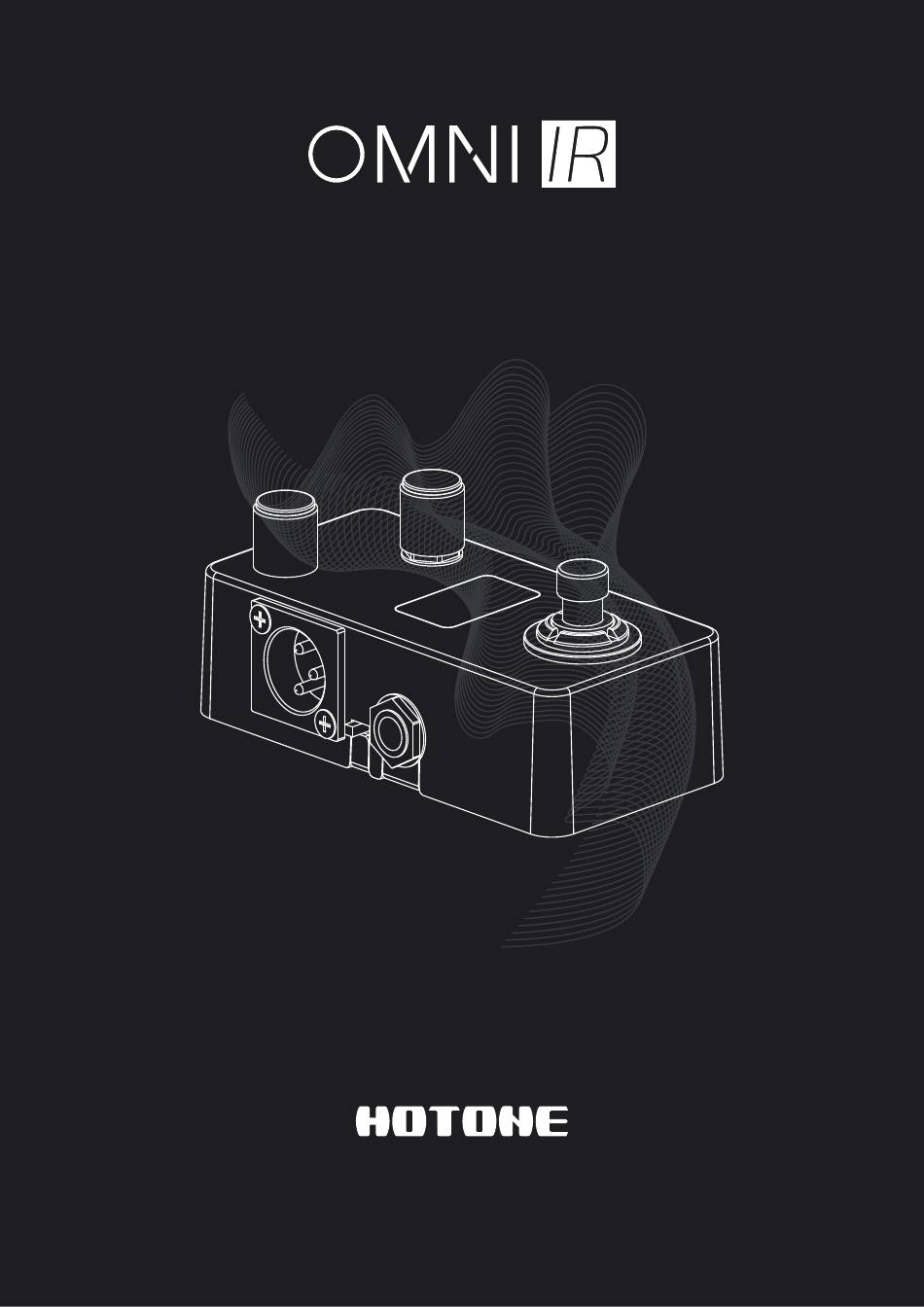

- Page 1 Owner's Manual DESIGN INSPIRATION The contents of this manual are subject to change without notice.
-
Page 2: Table Of Contents
Contents Welcome ·································································································1 Features ···································································································1 Panel Introduction ·················································································2 Connections ····························································································2 Main Display ···························································································4 Select a Preset ·······················································································4 Bypass/Mute (default setting) ·····························································4 Edit ············································································································4 Select a different IR file ·······································································4 Edit detailed parameters ······································································5 Preset Edit Menu ···················································································5 Save ··········································································································5 Assign Footswitch Function ································································6 Software ··································································································6... -
Page 3: Welcome
Welcome Thank you for purchasing a Hotone product. Please read this manual carefully to get the most out of your Omni IR. Please keep this manual in a safe place to use for further reference. The Omni IR is a compact-sized, Impulse Response based cabinet simulator delivering organic, precise guitar/bass cabinet sounds. -
Page 4: Panel Introduction
Panel Introduction 1. MASTER: Controls the overall output 2. FUNC. : For switching presets/IRs, editing presets, saving, etc. 3. XLR OUT: Feeds balanced signal to mixers, interfaces, etc. 4. LIFT/GND: Switch to LIFT position to lift the ground wire of XLR OUT jack 5. - Page 5 Connections For live performance ● For reamping ● Note: Always mute the mixer/audio interface or turn down the volume knob on your amp before plugging or unplugging power jacks, cables, etc. This will reduce the chance of hearing/device damage. ·3· DESIGN INSPIRATION...
-
Page 6: Main Display
Main Display The Main Display will come up as shown below after you plug in your power supply: 1- Current preset number, Omni IR supports 40 presets ranging from 00 to 39 2- Indicates the IR name you’re using in current preset 3- Shows only when the EQ is on Select a Preset In Main Display, turn the FUNC. -
Page 7: Edit Detailed Parameters
Edit 2. Edit detailed parameters In IR select menu, press the FUNC. knob to enter Edit Menu. The screen will come up as shown below: Turn the FUNC. knob to move the cursor on EDIT PRESET, then press FUNC. knob to enter Preset Edit Menu: Preset Edit Menu: 1- Return to previous menu 2- Indicates current cursor position (the PRESET VOL is now selected). -
Page 8: Assign Footswitch Function
Assign Footswitch Function In Edit Menu, select FS FUNCTION to enter Footswitch Function Assign Menu. The screen will come up as shown below: You can assign 2 different functions to FS TAP (tap the footswitch) and FS HOLD (hold the footswitch): MUTE ●... -
Page 9: Specifications
Factory IR files list* PRESET OMNI IR NAME BASED ON MIC TYPE SPEAKER 2X12 Cabinet BRIT 66B 2x12 Marshall 1966B* 2x12 Royer R121* 2x12 US STDO 2X12 1980s Mesa/Boogie* 2x12 cabinet Shure SM57* 2x12 BGR SVA 2x12 Bogner Shiva* 2x12 Shure SM57* 2x12 MESH RC 2x12... - Page 10 DESIGN INSPIRATION...
