Summary of Contents for Hotone Binary IR

  • Page 1 Binary IR Cab Owner's Manual DESIGN INSPIRATION...
  • Page 2 I/Os make it easy to use, and an OLED screen offers clear, detailed display. Binary IR Cab is an Impulse Response based cabinet simulator delivering precise legendary vintage/modern guitar/bass cab sounds along with CDCM powered legendary studio microphone/power amp simulations.
  • Page 3 Features ✪ Grown out of next-gen XTOMP technology ✪ Compact, easy-to-use dual footswitch IR cabinet simulator pedal ✪ Advanced CDCM modeling system ensures realistic playing experience ✪ Dual DSP-powered platform ensures high sound quality ✪ 24-bit A/D/A conversion, up to 110dB S/N ratio  ✪...

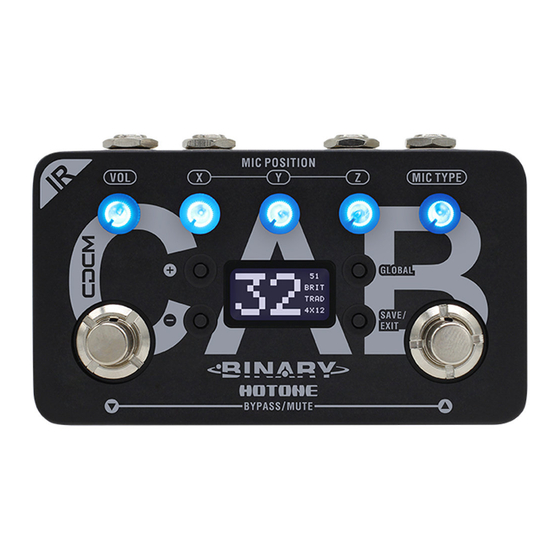

  • Page 4 Panel Introduction 1-2. ▽/△: For selecting presets, bypass/mute, and other parameters. 3. +/- buttons: For selecting effects and adjusting parameters. 4. GLOBAL: For power amp and room control settings. 5. SAVE/EXIT button: For saving or canceling parameter changes. 6. OLED screen: Shows bank/patch numbers, setting values and other operation info. 7.
  • Page 5 Connections Note: TURN ON FIRST, TURN OFF LAST. Always mute the mixer/audio interface before plugging or unplugging power jacks, cables, etc. When you're using a mixer or an audio interface, please adjust the onboard knobs carefully to avoid signal clipping. DESIGN INSPIRATION...
  • Page 6 Display Plugging in your power supply will turn on the device. The main display will come up as shown below: 1 - Current bank/patch number 2 - Indicates the cab model you’re using in current patch DESIGN INSPIRATION...

  • Page 7: Select A Patch

    Select a Patch Tap either ▽/△ footswitch once to change patches (hold one footswitch to switch patches quickly). Tap △ footswitch repeatedly to cycle through patches in the order 00, 01, 02,03, …, 99, then 00. Tap ▽ footswitch to change patches in the opposite order. DESIGN INSPIRATION...
  • Page 8 Bypass/Mute Tap both ▽/△ footswitches at the same time. To set the unit to bypass: release the footswitches within 2 seconds. To set the unit to mute: hold the footswitches more than 2 seconds until “MUTE” appears on the screen. Tap both ▽/△...
  • Page 9 Edit 1. Adjust the parameters Use the onboard knobs to adjust the effect parameters. The screen display will be shown as below when adjusting: 1 - Current parameter value you’re adjusting (shown: volume) 2 - Saved parameter value in the current patch (PREV. = Previous value) The MIC POSITION X/Y controls the microphone horizontal/vertical position, set X=Y=0 to set the microphone on axis;...
  • Page 10 Edit 2. Select a different effect Use the +/- button to change to another cab sim (hold for fast changing): The inverted bank/patch number indicates that the current patch has been edited. DESIGN INSPIRATION...
  • Page 11 Edit 3. Adjust power amp and room settings In main display, press the GLOBAL button to edit the power amp in the current patch. Press the GLOBAL button repeatedly to cycle through power amp type, presence, room amount settings: Use the +/- buttons to set the power amp type (or turn power amp sim off)/power amp presence/room amount (or turn room simulation off).
  • Page 12 Save Hold the SAVE/EXIT button to activate save function. The screen will be shown as below: Use the +/- buttons to choose a location (hold one button to choose quickly). Tap the SAVE/EXIT button to confirm saving. Press either footswitch to cancel saving and go back to edit status. DESIGN INSPIRATION...
  • Page 13 Cab Models List* Name Description Speaker Size Quickstart BRIT LEAD 4X12 This IR is based on a Marshall 1960AV* 4x12 cabinet with four 12-inch Celestion Vintage 30* speakers. 4x12 USA RECT 4x12 This IR is based on a Mesa/Boogie Rectifier* cabinet with four 12-inch Celestion Vintage 30* speakers. 4x12 VOXY TB 2x12 This IR is based on a Vox AC30 Top Boost* cabinet with two 12-inch Vox*-labeled silver speakers.
  • Page 14 Cab Models List* Vintage Selections TWD CHAP 1x8 This IR is based on a vintage Fender Champ* 1x8 cabinet. TWD PC 1x10 This IR is based on a vintage Fender Princeton* 1x10 cabinet. 1x10 BASE MAN 2x12 This IR is based on a vintage Fender “Piggyback” Bassman* 2x12 cabinet. 2x12 VIB 30 1x12 This IR is based on a vintage Fender Vibrolux* 1x12 cabinet.
  • Page 15 Cab Models List* Bass Cabs BIG SV 8x10 This IR is based on an Ampeg SVT-810E* 8x10 bass cabinet. 8x10 WORK BEN 1x15 This IR is based on a SWR* 1x15 bass cabinet. 1x15 FLIP TOP 1x15 This IR is based on an Ampeg PF-115HE* 1x15 bass cabinet. 1x15 BIG SV 4x10 This IR is based on an Ampeg SVT-410HE* 4x10 bass cabinet.
  • Page 16 Mic Models List* Mic Type Based On Type DY57 Shure SM57 Dynamic DY58 Shure SM58 Dynamic D421 Sennheiser MD421 Dynamic RE16 Electro-Voice RE16 Dynamic D112 AKG D112 Dynamic E609 Sennheiser e609 Dynamic B87A Shure Beta 87A Condenser Neumann U87 Condenser R121 Royal R121 Ribbon...
  • Page 17 Power Amp Models List Power Amp Type Description EL84S EL84 Single-Ended (SE) EL84P EL84 Push-Pull (PP) 6L6P 6L6 Push-Pull (PP) EL34P EL34 Push-Pull (PP) KT88S KT88 Single-Ended (SE) KT88P KT88 Push-Pull (PP) EL34S EL34 Single-Ended (SE) 6L6S 6L6 Single-Ended (SE) DESIGN INSPIRATION...

  • Page 18: Specifications

    Specifications Number of Patches: 100 Number of Effects: 100 cabs, 8 power amp types, 10 mic types Digital Processing: 24-bit A/D/A conversion, 48 kHz sample rate Supported IR file format: 24-bit, 48kHz Max. Truncation Time: 20ms Frequency Response: 20 Hz-20 kHz S/N Ratio: Up to 110dB Input Impedance: 1M Ohms Output Impedance: 100 Ohms...
