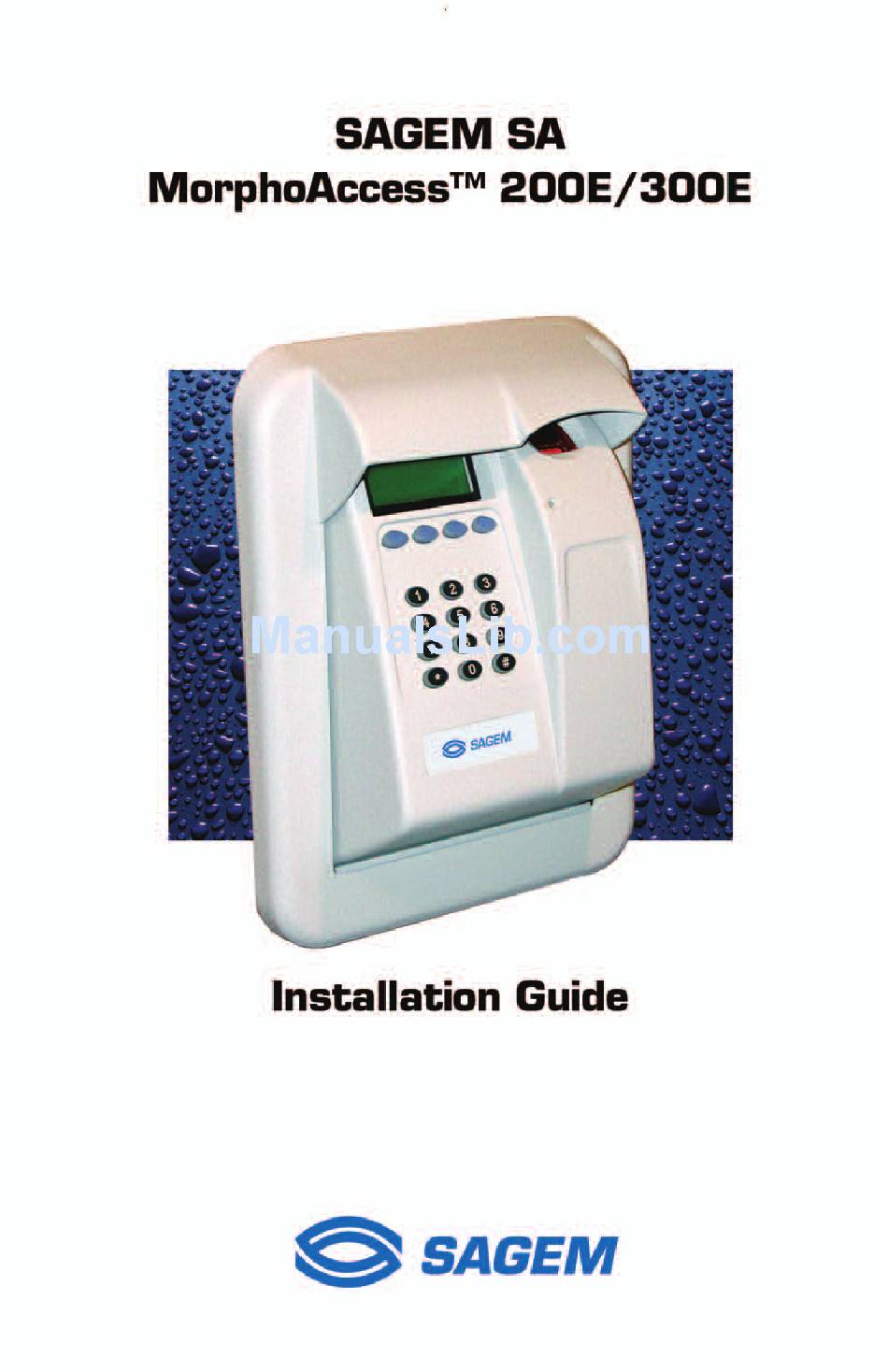

Sagem MorphoAccess 200E Installation Manual
  1. Manuals
  2. Brands
  3. Sagem Manuals
  4. Touch terminals
  5. MorphoAccess 200E
  6. Installation manual
Sagem MorphoAccess 200E Installation Manual

Sagem MorphoAccess 200E Installation Manual

Automatic fingerprint recognition terminal
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MorphoAccess 200E and is the answer not in the manual?

Questions and answers

Related Manuals for Sagem MorphoAccess 200E

Summary of Contents for Sagem MorphoAccess 200E

  • Page 3: Table Of Contents

    Stage 1: Wiring the MorphoAccess to the building Stage 2. Fastening the MorphoAccess to the building Stage 3. Installing the MorphoAccess protective visor Stage 4: Testing the MorphoAccess functionality How to upgrade MorphoAccess 200E to 300E Pre-Installation checklist Performing the upgrade Configuring Wiegand vs. Data clock...

  • Page 5: Welcome To Sagem Sa Morphoaccess

    18 years of experience in the field of biometric identification and the creation of literally millions of individual fingerprint identification records. We believe you will find the SAGEM SA MorphoAccess fast, accurate, easy to use, and suitable for physical access control or time and attendance.

  • Page 6: Safety Instructions

    NEC Class 2 r equirements. Europe: SAGEM SA hereby declares that the SAGEM SA MorphoAccess™ has been tested and found compliant with the below listed standards as required by the EMC Directive...
  • Page 7 CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER. MUST BE DISPOSED OF PROPERLY. ATTENTION IL Y A DANGER D'EXPLOSION S'IL Y A REMPLACEMENT INCORRECT DE LA BATTERIE. REMPLACER UNIQUEMENT AVEC UNE BATTERIE DU MÊME TYPE OU D'UN TYPE ÉQUIVALENT RECOMMANDÉ...

  • Page 8: General Description

    General description 3D View Visor Sensor Display 136 x 34 pixels Function keys Keyboard Front View ounting slots (4 places) General description...

  • Page 9: Rear View

    Rear View Wall Gasket Location Power RS-485 Multi-function Ethernet Wiegand General description...

  • Page 10: Installation Instructions

    Installation instructions The installation instructions are divided into three segments - The Pre-Installation Checklist, The Initial Installation Procedure, and the Final Installation Procedure. Each segment lists the procedures you will perform, followed by the detailed instructions for each procedure. Pre-Installation Checklist 1.

  • Page 11: Initial Installation Procedure

    Initial Installation Procedure The Initial Installation Procedure consists of two stages: (1) Preparing the MorphoAccess cables/wires for installation, and (2) Positioning and preparing the MorphoAccess for final installation against the mounting surface. Stage 1: Preparing the MorphoAccess cables/wires for installation 1.

  • Page 12: Stage 2: Positioning And Preparing The Morphoaccess For Final Installation Against The Mounting Surface

    Stage 2: Positioning and preparing the MorphoAccess for final installation against the mounting surface 1. If you haven't already done so, use the included hex wrench to unscrew the four screws securing the MorphoAccess visor and remove the visor. Place the visor out of the way until needed at the end of the installation procedure.
  • Page 13 For other types of surfaces you should select an appropriate anchor that is rated to support a minimum of 5 lb (2.25 kg). See Appendix 2, p. 26 for generic bolt specifications. Note: A variety of fasteners can be used to mount the MorphoAccess to different types of material.

  • Page 14: Final Installation Procedure

    Final Installation Procedure The Final Installation Procedure includes four stages: (1) Wiring MorphoAccess to the building, (2) Fastening MorphoAccess to the building, (3) Installing the MorphoAccess protective visor, and (4) Testing MorphoAccess functionality. Stage 1: Wiring MorphoAccess to the building 1.

  • Page 15: Stage 2. Fastening The Morphoaccess To The Building

    Stage 2. Fastening MorphoAccess to the building 1. To complete permanent mounting of the MorphoAccess, neatly wind and place the cable harness inside the junction box without any excessive stress applied to the harness. This will facilitate the mounting of the device tight against the mounting surface.

  • Page 16: Stage 3. Installing The Morphoaccess Protective Visor

    Stage 3. Installing the MorphoAccess protective visor Warning: The protective visor must be installed in order to protect the finger imaging scanner and the LCD display from direct sunlight and dripping water. 1. Place the protective visor over the MorphoAccess and align the four mounting holes on the visor with the four mounting holes on the flange.
  • Page 17 6. Perform an identification and verify that the door opens correctly. Note: This step depends on the type of system configuration and may not be appropriate or available for all installations. Note: If any unexplained problems occur, please contact the company where you purchased the MorphoAccess for troubleshooting instructions.

  • Page 18: How To Upgrade Morphoaccess 200E To 300E

    How to upgrade MorphoAccess™ 200E to 300E Pre-Installation checklist This is a memory upgrade which, when installed, provides the capability to manage 16 biometric databases of 3,000 records each for a total of 48,000 people. Note: This memory upgrade must be performed by authorized personnel only.
  • Page 19 Memory module upgrade Gasket seal The word "UP" is printed on the module in the upper left corner. The word "DOWN" is printed on the lower right corner of the module. 5. Use approved static discharge protection. Remove the memory module from its protective ESD packaging.
  • Page 20 Note: The module should press into place firmly without much resistance. If it appears that excessive force is required to seat the module, remove the module and visually inspect the pins on the MorphoAccess circuit board to ensure that the pins are not bent out of alignment. 8.

  • Page 21: Configuring Wiegand Vs. Dataclock

    Configuring Wiegand vs. Dataclock MorphoAccess is configured during manufacturing to support the Wiegand protocol. If your installation requires supporting the Dataclock protocol, you will need to perform the following procedure in order to configure the device to support Dataclock. You will be taking the housing sections apart and then putting them back together again in order to perform the configuration.
  • Page 22 5. Once you have identified the location of the vertical jumper bank, (numbered 1 - 8 from left to right), configure the jumpers for Dataclock as follows: Install jumpers on positions 1 and 2. Move jumper from position 7 to position 8. When completed, positions 1, 2, 4, and 8 will have jumpers installed.
  • Page 23 Note: Once you have attached the jumpers as described, the configuration is complete. Putting the device back together 1. Visually inspect the gasket, which provides a positive seal between the two halves of the housing. Ensure that the gasket is properly seated within the frame on the front half of the housing.
  • Page 24 MorphoAccess Technical Characteristics Display • Backlit LCD 136 x 34 pixels Keyboard • 12 numeric keys • 4 function keys Fuse • 2.5 amp quick blow Memory • 8 megabytes RAM • 4 megabytes memory for Operating System, Biometric Libraries, and Applications •...

  • Page 25: Power Supply

    Power supply • NEC Class 2, at 12 V DC ± 5%; 2.5A minimum Note: Cable cross section depends on the length: 0.75 mm² recommended. Size and weight This product is designed to be installed outdoors. • 8.6 inches wide x 11.4 inches high x 3.9 inches deep •...

  • Page 26: Recommendations

    Recommendations Areas containing combustibles It is strongly recommended that you do not install your MorphoAccess in the vicinity of gas stations, petroleum processing facilities or any other facility containing flamable or combustable gasses or materials. General precautions • Do not attempt to repair your MorphoAccess yourself. The manufacturer cannot be held responsible for any damage/accident that may result from attempts to repair components.

  • Page 27: Appendix 1 - Cable Configuration Tables

    Appendix 1 - Cable configuration table This table lists the cables and the function of each wire in each cable. It is to be used as a reference to wire the Outdoor MorphoAccess for power and interface functionality. (See diagram on Page 26 for location of the different cables.) Power Cable Color...
  • Page 28 RS-485 Cable Color/stripe Function Green/White White/Green Orange/White White/Orange Red/Orange Deister Card Reader Interface: To Interface the optional Deister contactless card reader, connect the Deister AB wires to the RS-485 cable Tx port as follows: Wire A to Tx+ Wire B to Tx- Multi-Function Cable Color Function...
  • Page 29 Rear View Location of Cables Power Multi-function RS485 Wiegand Ethernet Appendix 1...

  • Page 30: Appendix 2 - Wall Fastener Specs

    Appendix 2 - Wall fastener specs If the mounting bolts provided with the MorphoAccess do not meet your specific needs for a particular installation, the following specification provides information necessary to select a bolt that will properly support the MorphoAccess. Maximum bolt UNC #10 Minimum length of threads...
  • Page 31 LICENSE LIMITED WARRANTY AND MAINTENANCE. Subject to the Disclaimers and Limitations of Warranty set forth below, SAGEM MORPHO, Inc., (hereinafter “SMI,” or its licensed reseller, as may be applicable) provide the following limited warranty, for the benefit of original Customer only, that all hardware components of the Morpho® brand...
  • Page 32 nonconformity in the condition or operation of the biometric product or its software if: 1) modifications to Customer’s site are necessary for proper operation, and Customer’s site preparation is inadequate; 2) the biometric product is not professionally installed in accordance with applicable industry standards, local building/zoning codes such as the National Electric Code, and proper installation practices;...
  • Page 33 without limitation, the U.S. Export Administration Act and other U.S. export controls. Customer agrees that Customer will not export or re-export, directly or indirectly, the SMI biometric products or software to any country, person, or entity subject to U.S. export restrictions. Warranty...
  • Page 36 ™ ™ M142-005C September 2003 SAGEM MORPHO, Inc. Tacoma, Washington 98402...
  • Page 37 SAGEM MORPHO, Inc. SAGEM MORPHO, Inc. assumes no responsibility or liability for errors or inaccuracies that may appear in this documentation, and it is furnished “AS IS,”...

  • Page 38: Installing Ferrite Beads On Interface Cables For Morphoaccess™ 200 And 300

    This FCC compliance is for MorphoAccess™ products as delivered to you, the customer. Any changes or modifications not expressly approved by SAGEM MORPHO, Inc. could void your authority to operate MorphoAccess™ products. Installing Ferrite Beads on Interface Cables for MorphoAccess™...
  • Page 39 Ordering Ferrite Beads To order more ferrite beads (Ferrico F5-NF-80B) for your MorphoAccess 200 or 300 interface cable, contact SAGEM MORPHO, Inc. at 1-800-526-2674. Ask for part number 1205-294001-0.  SAGEM MORPHO, Inc. 2003. All rights reserved. SEPTEMBER 2003...

  • Page 40: Installing Ferrite Beads On Interface Cables For Morphoaccess™ 220

    (but not inside) to the MorphoAccess terminal. Ensure that sufficient cable slack will be available to route the cables inside the MorphoAccess and to attach the wires to the terminal block.  SAGEM MORPHO, Inc. 2003. All rights reserved. SEPTEMBER 2003...
  • Page 41 Ordering Ferrite Beads or Foam Cable Wrap for Ferrites To order more ferrite beads (Fair-Rite 04441 73551) for your MorphoAccess 220 interface cables, contact SAGEM MORPHO, Inc. at 1-800-526-2674. Ask for part number 1205-364001- 0. To order more foam cable wrap for ferrites, ask for part number 0999-900019-0.

  • Page 42: Morphoaccess™ Motherboard Jumper Configuration

    SW4 must be open SW5 must be open SW6 must be closed SW7-8: Wiegand Input (Interrupts) Open Open Not allowed Closed Open Wiegand Mode (default) Open Closed Dataclock Mode Closed Closed Not allowed  SAGEM MORPHO, Inc. 2003. All rights reserved. SEPTEMBER 2003...

  • Page 43: Morphoaccess™ Serial Port Is Rs-422 Only

    IEC 60950-certified power supply that is marked Limited Power Source (or “LPS”) and rated at 12 VDC, 2.5 A minimum. This applies to indoor units (MA200, 220, and 300) as well as outdoor units (MA200E, 220E, and 300E).  SAGEM MORPHO, Inc. 2003. All rights reserved. SEPTEMBER 2003...

  • Page 46: Product Warranty, Limitations And Software License

    CONTENTS Introduction MorphoAccess™ Software User Interface V.4.2 Applicant recognition application MorphoAccess Software Administrator Interface Biometric management operations Access the set up functions of the system The CONFIG menu The VERSION menu The SERIAL NUMBER menu The SETTING menu Communication protocol Appendix 1 - Wiegand data format Appendix 2 - ISO 7811/2-1995 - Track 2 Data clock format Appendix 3 - Reserved configuration values...

  • Page 48: Introduction

    Recognition Terminal. MorphoAccess provides an innovative and effective solution for access control or time and attendance applications using fingerprint verification and/or identification. The MorphoAccess terminal integrates SAGEM image processing and feature matching algorithms (MorphoSoft™ and MorphoImaging™). This technology is based on lessons...
  • Page 49 This guide allows you to configure the software parameters to meet your installation requirements.The following lists some of the configurable parameters: • Administrator mode versus User mode • Identification versus Authentication • Standalone versus Client/Server • Database management functions – enroll or delete •...

  • Page 50: Morphoaccess Software User Interface

    Page 23 Vendredi, 30. mai 2003 12:21 12 MORPHOACCESS SOFTWARE USER INTERFACE The SAGEM SA MorphoAccess™ terminal can operate in three modes: access control by identification, access control by authentication and proxy mode. Those modes are set in the Maccess/Admin/Mode configuration key.
  • Page 51 This display remains for about 4 seconds. Port used to exchange ID is either Weigand/Dataclock or COM1/COM2. The ID format send to COM port is described on Communication protocol section. SE32/03-011145-01 SAGEM SA document. Reproduction and disclosure forbidden.
  • Page 52 Key 1 pressed Place your finger for identification Now using base 1 Please Key 1 pressed Base does not exist Base 11 selected but Please select not used another one Key 5 pressed SE32/03-011145-01 SAGEM SA document. Reproduction and disclosure forbidden.
  • Page 53 To configure the MorphoAccess™ in this mode, use Asystem and edit /cfg/Maccess/Admin/mode, then enter 1. This mode requires a peripheral equipment which will send the ID of the person to authenticate to the MorphoAccess™ Wiegand or Dataclock input. SE32/03-011145-01 SAGEM SA document. Reproduction and disclosure forbidden.
  • Page 54 0 and waits for a new input ID. This display remains for about 4 seconds. When using this feature, ID should be a value between 0 and 65535. SE32/03-011145-01 SAGEM SA document. Reproduction and disclosure forbidden.
  • Page 55 John Smith Place your finger If the authentication is successful, the terminal triggers the access or returns the user ID to central security controller. ✔ ✔ ✔ ✔ ✔ Welcome John SMITH AUTHENTICATED SE32/03-011145-01 SAGEM SA document. Reproduction and disclosure forbidden.
  • Page 56 ID 92716 Place your finger If the authentication is successful, the terminal triggers the access or returns the user ID to central security controller. ✔ ✔ ✔ ✔ ✔ Welcome 92716 AUTHENTICATED SE32/03-011145-01 SAGEM SA document. Reproduction and disclosure forbidden.
  • Page 57 This mode allows to control the MorphoAccess™ remotely using a set of biometric and database management function interface access commands. For more information, please contact SAGEM SA or refer to document 3000005996 MorphoAccess™ Host System Interface Specification. To configure the MorphoAccess™ in this mode, use Asystem and edit /cfg/Maccess/Admin/mode, then enter 2.

  • Page 58: Morphoaccess Software Administrator Interface

    Page 31 Vendredi, 30. mai 2003 12:21 12 MORPHOACCESS SOFTWARE ADMINISTRATOR INTERFACE Application of the SAGEM SA MorphoAccess™ terminal allows: Biometric management operations − Transfer of biometric data between the MorphoAccess™ terminal and MorphoAccess™ Management System (MMS). − In stand alone without the MorphoAccess™ management system (manages the biometric data in a local database on the MorphoAccess™) (MorphoAccess™...

  • Page 59: Biometric Management Operations

    <#>, <*> and <#>. With a MorphoAccess™ 200 simply hit the following keys in sequence <#>, <*> and <#>. For more information about MMS, please contact SAGEM SA. SE32/03-011145-01 SAGEM SA document. Reproduction and disclosure forbidden.
  • Page 60 Administrator identification, you will see the following screen: Administrator Mode Select a command Please SYSTEM EXIT CL KEYS To change the pin code, see section Use Application System. SE32/03-011145-01 SAGEM SA document. Reproduction and disclosure forbidden.
  • Page 61 Administrator Identification Enter Pin : I Press <#> for correction EXIT To change the Biometric management mode, see section Use Application System. To change the pin code, see section Use Application System. SE32/03-011145-01 SAGEM SA document. Reproduction and disclosure forbidden.
  • Page 62 Press <#> for correction CANCEL You can use the correction key # to delete the last digit entered. In the next screen you enroll your finger. Here You choose the user type Administrator or User. SE32/03-011145-01 SAGEM SA document. Reproduction and disclosure forbidden.
  • Page 63 Remove all template/ID from database (MorphoAccess™ 200 only) To remove all records from the local MorphoAccess™ database, select the ERASE menu option. A screen appears to confirm your command. Do you really want to ERASE the Database SE32/03-011145-01 SAGEM SA document. Reproduction and disclosure forbidden.

  • Page 64: Access The Set Up Functions Of The System

    You can use the correction key # to delete the last digit entered. The password can be changed in the configuration file "/cfg/system" (see the section Setting up Administrator System Pin). The System Menu will appear when the password is correct. SE32/03-011145-01 SAGEM SA document. Reproduction and disclosure forbidden.
  • Page 65 The CONFIG menu allows you to set up network and third-party applications and specify additional parameters. The VERSION item allows you to browse for software modules present in your SAGEM MorphoAccess™ and see their revision number(s). The SER NB item displays the terminal serial number, MicroBoot revision and Ethernet physical address of your machine.

  • Page 66: The Config Menu

    PREV NEXT EXIT EDIT You can now edit the IP address of your SAGEM SA MorphoAccess™. The LEFT and RIGHT keys move the cursor. The alphanumeric keys enter digits as necessary. The # key deletes the digit immediately to the left of the cursor. The EXIT key aborts editing and restores the previous address value.
  • Page 67 The LEFT and RIGHT keys move the cursor and the # key deletes the digit immediately to the left of the cursor. The CANCEL key aborts editing and restores the previous password value. SE32/03-011145-01 SAGEM SA document. Reproduction and disclosure forbidden.
  • Page 68 From the System Menu, press the CONFIG key to access the configuration files. With MorphoAccess™ 300, the stand alone mode is disabled. Nevertheless, the key value must be set to 0 to enable MMS connection. SE32/03-011145-01 SAGEM SA document. Reproduction and disclosure forbidden.
  • Page 69 MorphoAccess™ biometric data is managed by the MMS. The MorphoAccess™ shall be used either in stand alone mode or in connected mode (with MMS) but never in both modes. SE32/03-011145-01 SAGEM SA document. Reproduction and disclosure forbidden.
  • Page 70 FILE: SECTION: EXIT PREV NEXT EDIT Press the EDIT key. You can edit the juvenile parameters to activate juvenile recognition. FILE: cfg/Maccess SECTION: bio juvenile : 0 PREV NEXT EXIT EDIT SE32/03-011145-01 SAGEM SA document. Reproduction and disclosure forbidden.
  • Page 71 From the System Menu, press the CONFIG key to access the configuration files. Press the NEXT key until the file menu shows "/cfg/Maccess". FILE: cfg/Maccess SECTION: PREV NEXT EXIT EDIT SE32/03-011145-01 SAGEM SA document. Reproduction and disclosure forbidden.
  • Page 72 The table below details the different possibilities. From the System Menu, press the CONFIG key to access the configuration files. Press the NEXT key until the file menu shows "/cfg/ bio". SE32/03-011145-01 SAGEM SA document. Reproduction and disclosure forbidden.
  • Page 73 NEXT and EDIT keys. FILE: cfg/bio SECTION: matching threshold identify : 5 PREV NEXT EXIT EDIT FILE: cfg/bio SECTION: matching threshold authenticate : 5 EXIT PREV NEXT EDIT SE32/03-011145-01 SAGEM SA document. Reproduction and disclosure forbidden.
  • Page 74 FAR < 0.001% FAR < 0.0001% FAR < 0.00001% Very high threshold FAR < 0.0000001% (few false acceptances) High threshold for test purpose There are very few recogni- only tions, and many rejections SE32/03-011145-01 SAGEM SA document. Reproduction and disclosure forbidden.
  • Page 75 This feature can be enabled and disabled with key /cfg/Maccess/Language/change. Place your finger for identification Please Those configuration keys can be defined from the CONFIG menu in file /cfg/Maccess, in section Language. SE32/03-011145-01 SAGEM SA document. Reproduction and disclosure forbidden.
  • Page 76 They contain first and family name of all records present in the database. On identification, system will display the following screen: ✔ ✔ ✔ ✔ ✔ Welcome John SMITH IDENTIFIED This feature needs a database containing the appropriate additional fields. SE32/03-011145-01 SAGEM SA document. Reproduction and disclosure forbidden.
  • Page 77 /cfg/GUI, in section Idle time in min. The allowed values are: Parameters Value Comment Idle time in min. 0 (default value) MorphoAccess never enters idle mode. MorphoAccess enters idle mode after n minutes. SE32/03-011145-01 SAGEM SA document. Reproduction and disclosure forbidden.
  • Page 78 Blocks are numbered in an absolute way, 1 for block 0 sector 0, then 3 blocks for each sector. SAGEM SA biometric data (ID, name and templates) are located on the card thanks to a BNC address where: <B> is the first block number to read, <N>...
  • Page 79 ID of the user. Those configuration keys can be defined from the CONFIG menu in file /cfg/Maccess, in section Admin. SE32/03-011145-01 SAGEM SA document. Reproduction and disclosure forbidden.
  • Page 80 The allowed values are: Parameters Value Comment Time mask 0 (default value) Time mask feature is dis- able. Time mask feature is enabled. Users must be on time to have their access granted. SE32/03-011145-01 SAGEM SA document. Reproduction and disclosure forbidden.
  • Page 81 For more information about the protocol used to communicate with this agent, please contact your SAGEM SA sales representative. Those configuration keys can be defined from the CONFIG menu in file /cfg/sdl, in section download. The allowed values are:...
  • Page 82 The EXIT key aborts editing and restores the previous value. (14) To configure the Data and Strobe levels in Dataclock mode, must select Dataclock level section Wiegand/Dataclock. (13) For more information, see appendix 2 (14) Idem. SE32/03-011145-01 SAGEM SA document. Reproduction and disclosure forbidden.
  • Page 83 The numeric keys enter digits as necessary. The alphanumeric # key deletes the digit immediately to the left of the cursor. The EXIT key aborts editing and restores the previous value. SE32/03-011145-01 SAGEM SA document. Reproduction and disclosure forbidden.
  • Page 84 Level out/Card present 0 (default value) Autodetect The led out signal can behave as a card present signal depending on the hardware configuration of the system: − DataClock IN/ DataClock OUT: Card present SE32/03-011145-01 SAGEM SA document. Reproduction and disclosure forbidden.
  • Page 85 You can use the Ethernet port to send the corresponding ID to the central security controller. Connection should be made using port 11020. Those configuration keys can be defined from the CONFIG menu in file /cfg/Maccess, in section Ethernet. SE32/03-011145-01 SAGEM SA document. Reproduction and disclosure forbidden.
  • Page 86 FILE: EXIT PREV NEXT EDIT Press the EDIT key. Press the NEXT key until the COM1 menu shows "COM1". (15) One RS422 port (full duplex, four wires) or one RS232 port. SE32/03-011145-01 SAGEM SA document. Reproduction and disclosure forbidden.
  • Page 87 The ID is sent in Hexa for- mat. (13) The ID is sent in BCD format. When finished editing, press OK key to update the format of the ID and return to the previous screen. SE32/03-011145-01 SAGEM SA document. Reproduction and disclosure forbidden.
  • Page 88 To configure the COM1 serial link, press the CONFIG key from the System Menu. Press the NEXT key until the file menu shows "/cfg/ ser0" and select parameters section. /cfg/ser0 FILE: EXIT PREV NEXT EDIT SE32/03-011145-01 SAGEM SA document. Reproduction and disclosure forbidden.
  • Page 89 The EXIT key aborts editing and restores the previous baudrate value. Parameters Value Comment Baudrate (bits/second) 0 1200 2400 4800 3 (default value) 9600 19200 28800 38400 57600 115200 SE32/03-011145-01 SAGEM SA document. Reproduction and disclosure forbidden.
  • Page 90 EXIT PREV NEXT EDIT You can edit the databits parameters. The different values are: Parameters Value Comment Databits 7 (default value) FILE: cfg/ser0 SECTION: parameters stopbits : 2 PREV NEXT EXIT EDIT SE32/03-011145-01 SAGEM SA document. Reproduction and disclosure forbidden.
  • Page 91 You can edit the control flow parameter. FILE: cfg/ser0 SECTION: parameters flow ctrl : 0 EXIT PREV NEXT EDIT The allowed values are: Parameters Value Comment Flow Ctrl Type 0 (default value) Xon/Xoff SE32/03-011145-01 SAGEM SA document. Reproduction and disclosure forbidden.
  • Page 92 Format 0 (default value) The ID is sent in ASCII for- mat. The ID is sent in Hexa for- mat. The ID is sent is BCD format. BCD: Binary Code Decimal SE32/03-011145-01 SAGEM SA document. Reproduction and disclosure forbidden.
  • Page 93 Parameters Value Comment Baudrate 1200 bit/second 2400 bit/second 4800 bit/second 3 (default value) 9600 bit/second 19200 bit/second 28800 bit/second 38400 bit/second 57600 bit/second 115200 bit/second Data bits 7 (default value) Stop bits SE32/03-011145-01 SAGEM SA document. Reproduction and disclosure forbidden.
  • Page 94 The LEFT and RIGHT keys move the cursor. The numeric keys enter digits as necessary. The alphanumeric # key deletes the digit immediately to the left of the cursor. The EXIT key aborts editing and restores the previous value. SE32/03-011145-01 SAGEM SA document. Reproduction and disclosure forbidden.
  • Page 95 To configure the next parameter, select the NEXT key. You can edit the "active" value. FILE: cfg/Maccess SECTION: Relay Active : 0 PREV NEXT EXIT EDIT The different values are: Parameters Value Comment Active 0 (default value) Relay not active. Relay active. SE32/03-011145-01 SAGEM SA document. Reproduction and disclosure forbidden.

  • Page 96: The Version Menu

    From the System Menu, press the VERSION key to access the information file. This display contains information that may be necessary if the SAGEM SA MorphoAccess™ requires technical support. It should not normally be necessary to access this display unless requested by SAGEM SA technical support personnel.

  • Page 97: The Serial Number Menu

    Micro Boot revision : 2.4 ETH : 00:90:27:9A:F2:53 Serial # is your SAGEM SA MorphoAccess™’s serial number. MicroBoot revision is the revision number of your SAGEM SA MorphoAccess™’s MicroBoot. This revision number may be needed when requesting technical support. ETH is the physical Ethernet address, also known as the MAC address.

  • Page 98: The Setting Menu

    The MORE key increases the contrast, the LESS key decreases the contrast. The RTC menu allows you to set the current date and time. RTC SETTINGS Time 16:45:44 Date 14/06/00 SETTIME SETDATE EXIT SE32/03-011145-01 SAGEM SA document. Reproduction and disclosure forbidden.
  • Page 99 The CANCEL key aborts editing and returns to the previous menu. DATE SETTINGS DATE (DDMMYY) : 100600 VALID CANCEL Note : You can use the correction key # to delete the last charac- ters entered. SE32/03-011145-01 SAGEM SA document. Reproduction and disclosure forbidden.
  • Page 100 <Current Keys : Transport> CANCEL Present the administrator card to start the update. (16) If you perform this operation, the old user cards won't be readable anymore, since the keys won't be com- pliant anymore. SE32/03-011145-01 SAGEM SA document. Reproduction and disclosure forbidden.
  • Page 101 MIFARE KEYS UPDATE Please Present Admin Card <Current Keys : INVALID> PREV LOAD DFLT KEYS Pressing the LOAD DFLT KEYS hotkey will allow you to re-update the 32 keys with the default value 0xFFFFFF. SE32/03-011145-01 SAGEM SA document. Reproduction and disclosure forbidden.

  • Page 102: Communication Protocol

    Communication protocol The communication protocol available allows the terminal to send commands to a host through the communication COM1/RS485. All the commands will be formatted with an "Identifier Length Value" structure as described below: Identifier Length Value Identifier called I This is the identifier of the command. Length called L This is the length of the Value field in bytes.

  • Page 103: Appendix 1 - Wiegand Data Format

    Appendix 1 - Wiegand data format The 26 bits of transmission consists of two parity bits and 24 code bits. The eight first code bits are encoding the facility code. This code identifies each Morphoccess in a network. The 16 other bits are data bits.

  • Page 104: Appendix 2 - Iso 7811/2-1995 - Track 2 Data Clock Format

    Appendix 2 - ISO 7811/2-1995 - Track 2 Data clock format Compliant with ISO07811/2-1995 - Track 2. Data encoding table Value Bit pattern Meaning 0 0 0 0-1 "0" 1 0 0 0-0 "1" 0 1 0 0-0 "2" 1 1 0 0-1 "3"...
  • Page 105 Data clock levels In normal operation mode (default) in and out signals are defined data strobe Other modes are (only for output): data inverted strobe inverted data strobe inverted data inverted strobe Appendix 2...

  • Page 106: Appendix 3 - Reserved Configuration Values

    Appendix 3 - Reserved configuration values These values are for internal use only. For proper operation, these settings should not be changed. /cfg/lcd0/display/type : 1 /cfg/lcd0/contrast/value : 0 /cfg/ser0/mode/connection: EXT /cfg/ser0/mode/mode: 450 db/seq flash/start: 0 /cfg/bio/video/channel: 0 /cfg/bio/video/rotation: 0 /cfg/lic/licences/* Appendix 3...
  • Page 107 LICENSE LIMITED WARRANTY AND MAINTENANCE. Subject to the Disclaimers and Limitations of Warranty set forth below, SAGEM MORPHO, Inc., (hereinafter “SMI,” or its licensed reseller, as may be applicable) provide the following limited warranty, for the benefit of original Customer only, that all hardware components of the Morpho® brand...
  • Page 108 LIMITATIONS AND DISCLAIMERS OF WARRANTY. SMI does not warrant that operation of the biometric product will be uninterrupted or error-free; further, no biometric product or system can be guaranteed to be 100% accurate, or to properly enroll, identify, or authenticate every individual. SMI shall have no responsibility for repairing or otherwise remedying any defect or nonconformity in the condition or operation of the biometric product or its software if: 1) modifications to Customer’s site are necessary for proper operation, and Customer’s...
  • Page 109 MORPHO® BRAND BIOMETRIC SOFTWARE END-USER LICENSE Important - Terms Govern Usage of Software Please Read Carefully Prior to Commencement of Operations This SMI End-User License Agreement («License») allows the acquirer of an SMI biometric product (referred to in the following sections as the «End-User») to use the proprietary SMI software provided with, and/or loaded into and resident in, the SMI biometric product, so long as the End-User uses the SMI software strictly in accordance with the terms and conditions of this License, below.
  • Page 110 Computer Software-Restricted Rights, as applicable (or, as applicable, similar regulatory restrictions on Rights in Technical Data and Computer Software, e.g., DOD FAR Supplement 252.227-7013 (c)(1)(ii)). Manufacturer is SAGEM MORPHO, Inc., 1145 Broadway Plaza, Suite 200, Tacoma, WA 98402. Software License...
