Connect The Cables - ADC Megabit Modem 500L Installation Manual

1
C
ONNECT THE

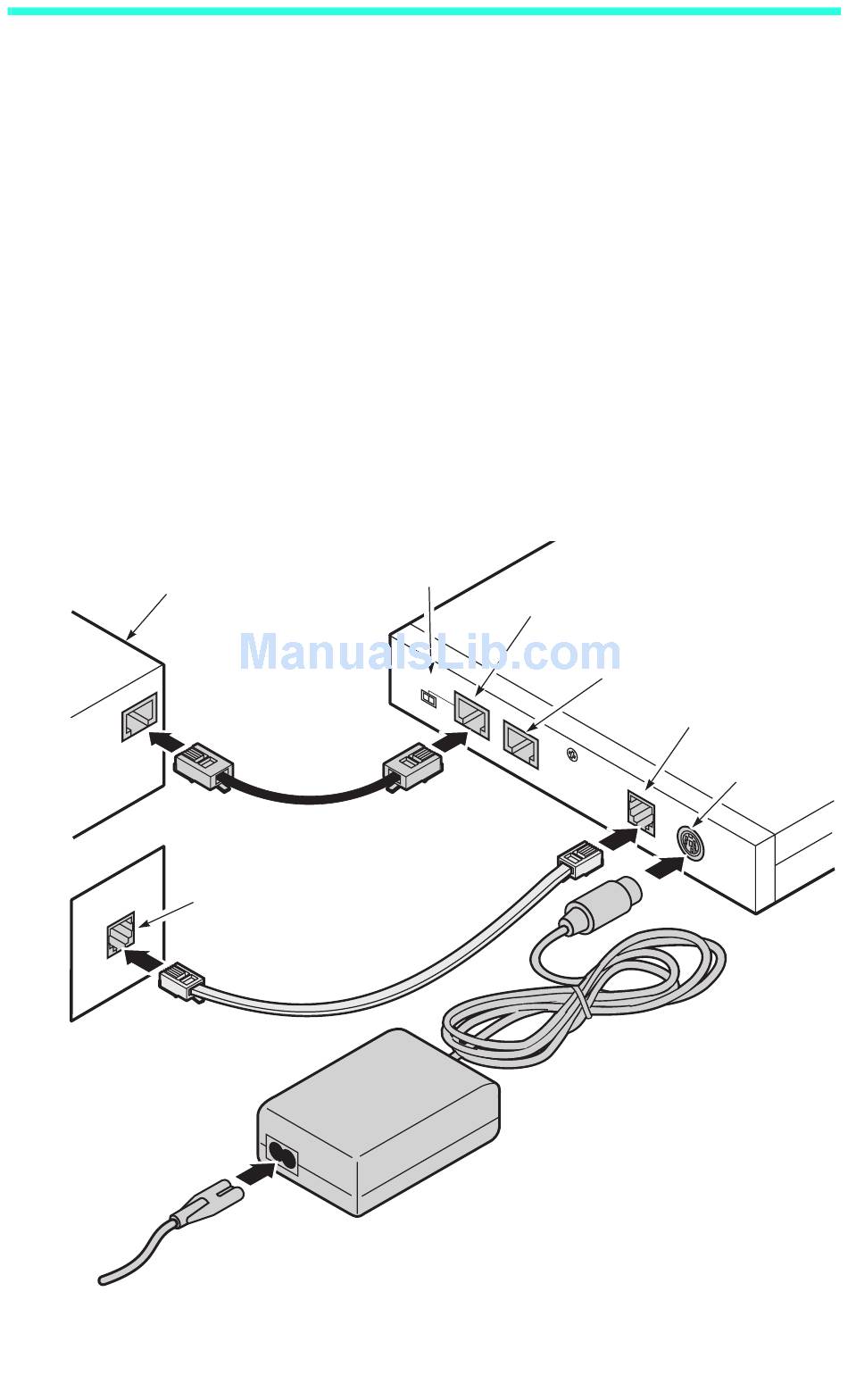

1 Set the switch for the 10/100BASE-T port to:
• MDI-X when connecting to a device with a MDI port such as a PC.
• MDI when connecting to a device with a MDI-X port such as a hub, switch,
repeater, or router.
2 Connect the black patch cable from the modem 10/100BASE-T port to your PC
or hub.
3 Connect the grey phone cord from the modem ADSL port to the ADSL wall jack.
If your installation requires a splitter or microfilter, refer to the manufacturer's
documentation for further instructions.
4 Connect the power cable from the modem power connector to a power outlet.
PC, hub or other
network device
To power
outlet
Wall jack with DMT ADSL
service
C
ABLES
Switch
10/100BASE-T port
M D
I
M D
I - X
1 0
B A
S E
- T
R S
2 3
2 M
G M
T
RS-232 MGMT port
(600F and 700F only)
ADSL port
Power
connector
D S
L
P O
W E
R
