Salicru SLC ADAPT User Manual page 12

(*) Aux. cont.
(1)
(2)
(1) and (2)

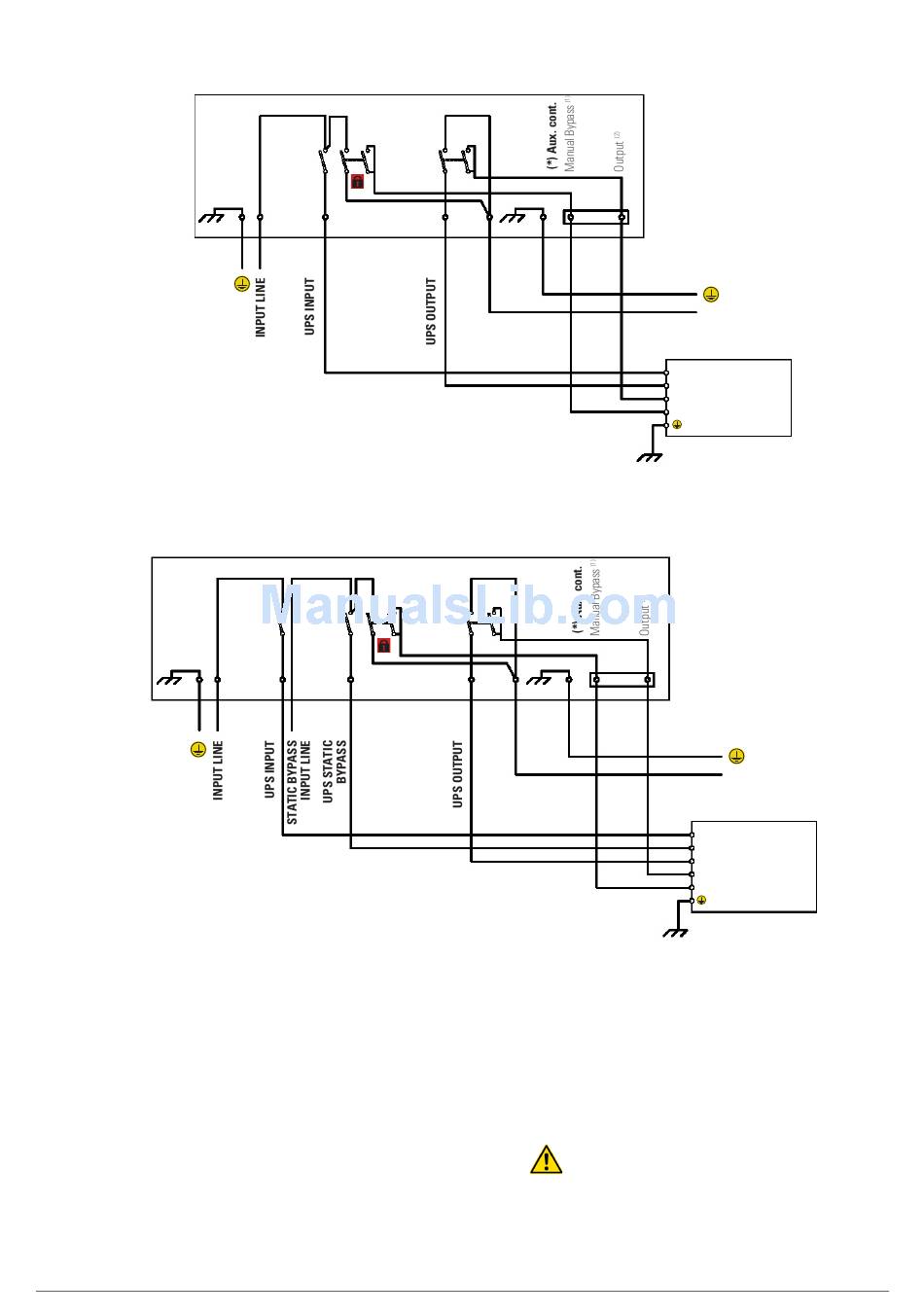

Fig. 3. Generic manual bypass panel for standard UPS.
(*) Aux. cont.
Available in manual bypass panel for UPS's of ADAPT, CUBE3+ and X-TRA series.
(1)
Available in manual bypass panel for UPS's of CUBE3+ series only.
(2)
Not available in manual bypass panels for UPS's of TWIN PRO and PRO 33 series.
(1) and (2)
Fig. 4. Generic manual bypass panel for a UPS with
separate bypass line.
5.3.7. Systems with «n» equipments in parallel or
redundant.
5.3.7.1. Power connections.
Make the connections stated in sections 5.3.1 and 5.3.2.
•
Make and repeat for each equipment that makes the
•
system, the connections stated in section 5.3.3.
12
UPS INPUT
MANUAL
BYPASS
Available in manual bypass panel for UPS's of ADAPT, CUBE3+ and X-TRA series.
Available in manual bypass panel for UPS's of CUBE3+ series only.
Not available in manual bypass panels for UPSs of TWIN PRO and PRO 33 series.
UPS INPUT STATIC BYPASS
MANUAL
BYPASS
UPS OUTPUT
UPS OUTPUT
5.3.7.2. Connection of the auxiliary contact of the manual bypass
switch of each UPS, with the one in the bypass panel (not
available in panels of TWIN PRO and PRO 33 series).
By means of control wiring (minimum 1 mm
•
maximum 2,5 mm
terminal strip labelled as «BYPASS AUXILIARY CONTACT» of
the UPS with the ones in the bypass panel. These signal ter-
minals are the extension of the normally opened auxiliary
contact, of its respective internal manual bypass.
MANUAL BYPASS
PANEL
LOADS OUPUT
INPUT
OUTPUT
Aux. cont. output
Aux. cont. manual bypass
UPS
MANUAL BYPASS
PANEL
LOADS OUPUT
INPUT
STATIC BYPASS
OUTPUT
Aux. cont. output
Aux. cont. manual bypass
UPS
), it is mandatory to connect the
2
and
2
SALICRU
