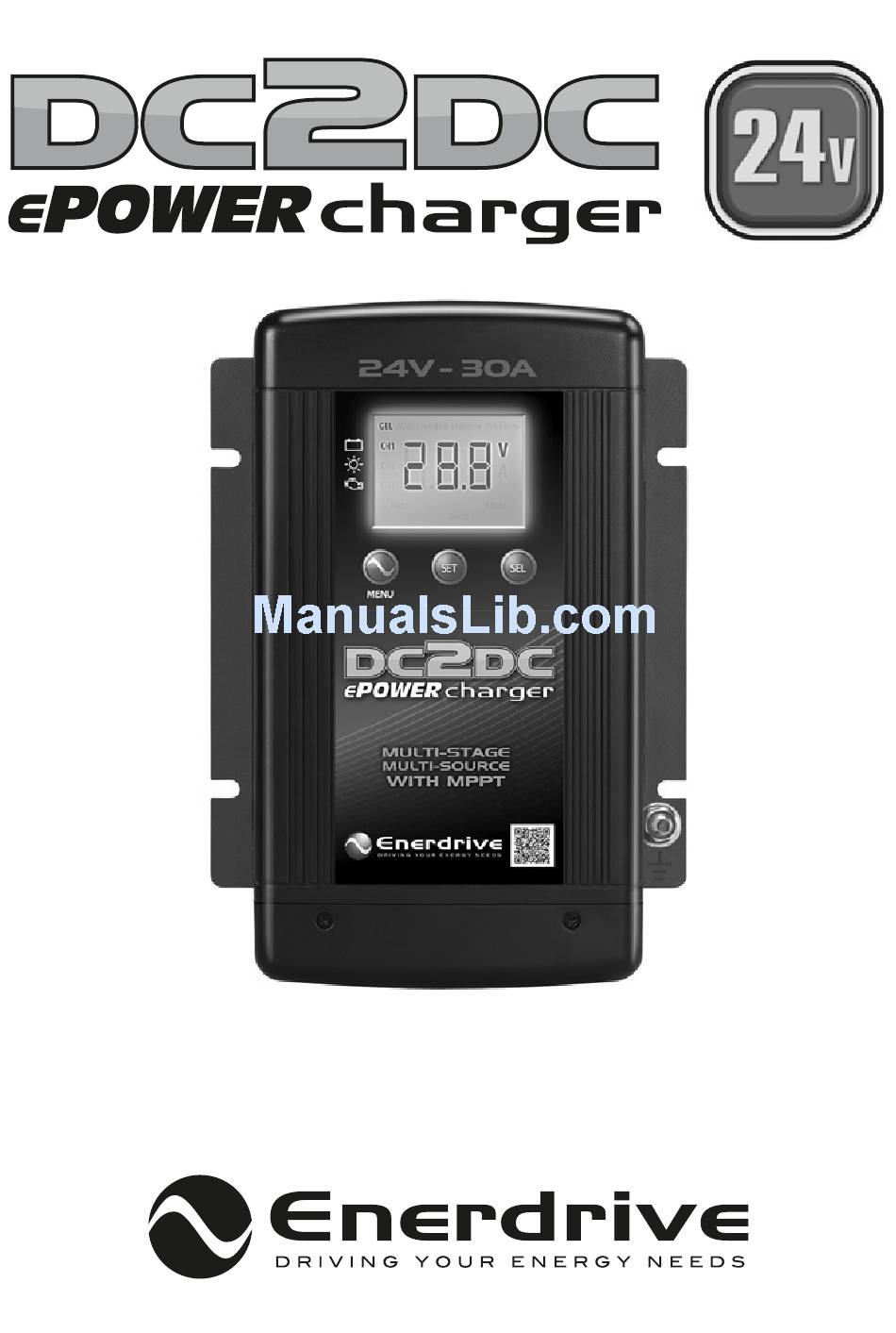

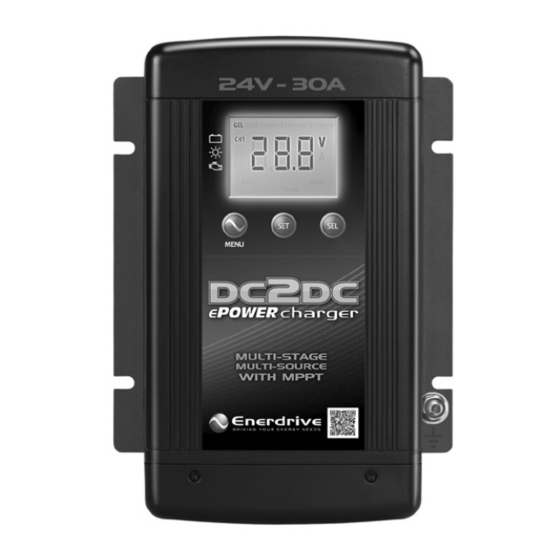

  • Page 1 Owner’s Manual (DC2DC 24V Rev. 1.5)

  • Page 2: Table Of Contents

    Battery Wiring (Towing Applications): Battery Wiring (Vehicle & Marine Applications): 7. UNIT OPERATION Understanding The Charging Mechanism Operating from a Start Battery / Alternator (CH3) Page 2 Enerdrive ePOWER DC2DC 24V Battery Charger Owners Manual (Rev. 1.5) www.enerdrive.com.au Page 3...

  • Page 3: Introduction

    Please be sure to read the entire manual before using your Enerdrive ePOWER DC2DC 24V Makes no warranty, either expressed or implied, including but not limited to any implied Battery Charger.

  • Page 4: Warnings

    Battery Charger. Each time, before using the Enerdrive ePOWER DC2DC 24V Battery Charger. READ ALL instructions and cautionary markings on or provided with the DC2DC 24V Battery DO NOT use the Enerdrive ePOWER DC2DC 24V Battery Charger in the vicinity of Charger, and all appropriate sections of this guide.

  • Page 5: Product Description

    Multistage Charging Process - GEL, AGM, Flooded & Program Modes 1 x ePOWER DC2DC 24V Battery The ePOWER DC2DC 24V Battery Charger is a fully automatic, set and forget charger. It is Charger designed to quickly and accurately recharge your deep cycle batteries utilising charger algorithms that help to maximise the life of your specialised deep cycle batteries.

  • Page 6: Smart Charging Feature

    Maint. Power Supply Mode Return to Bulk The ePOWER DC2DC 24V Battery Charger will regulate its output based on the loads connected 28.8V to your battery banks. This function is important to maintain the life of your battery banks as 28.4V...

  • Page 7: Battery Bank Size Recommendation

    Note 3: Charger is acting as a power supply with selected constant output voltage and preset maximum output current. NOTE: The equalisation function although included in the ePOWER DC2DC 24V will rarely WARNING be used. To activate, the battery bank must be in float, and manually activated. A typical drive will not be long enough for the DC2DC function to complete the process.

  • Page 8: Mounting The Charger

    This is a Dual Input device. Different cable sizes are required for the alternator input, solar array input and the DC2DC 24V charger to battery connection. 160mm Page 14 Enerdrive ePOWER DC2DC 24V Battery Charger Owners Manual (Rev. 1.5) www.enerdrive.com.au Page 15...

  • Page 9: Dc2Dc 24V Battery Charger Connections

    PLEASE NOTE: For lithium installations, the standard supplied temperature sensor is not TERMINAL required to be installed for these applications. Start Battery Solar Array House Battery Page 16 Enerdrive ePOWER DC2DC 24V Battery Charger Owners Manual (Rev. 1.5) www.enerdrive.com.au Page 17...

  • Page 10: Battery Wiring (Towing Applications)

    This diagram is for a reference only. No cables, fuse/breakers, batteries or solar panels are supplied with this unit. Local rules and regulations should be followed when installing this unit. Local rules and regulations should be followed when installing this unit. Page 18 Enerdrive ePOWER DC2DC 24V Battery Charger Owners Manual (Rev. 1.5) www.enerdrive.com.au Page 19...

  • Page 11: Unit Operation

    <11.5V for a 12V system, (<23V for a 24V system), the charger will start to derate the output battery is disconnected or if the measured Input Voltage drops to < 7Vdc. Page 20 Enerdrive ePOWER DC2DC 24V Battery Charger Owners Manual (Rev. 1.5) www.enerdrive.com.au Page 21...

  • Page 12: Dc Input (Ch2 - Solar / Pv)

    200watt @ 43Voc 400watts 10 Amps an economic decision. You can install more power than the controller can use and this will contribute to better power availability. Enerdrive suggest a total maximum overdrive of 150watt @ 20Voc 450watts 11 Amps 20% (total 1000w).

  • Page 13: Understanding The Display & Function Keys During Normal Operation

    • The ‘Priority’ Icon turns ON when the “ignition sense” terminal is connected or the unit is set to ‘Manual Override’ mode. Page 24 Enerdrive ePOWER DC2DC 24V Battery Charger Owners Manual (Rev. 1.5) www.enerdrive.com.au Page 25...

  • Page 14: Button Functions

    When the battery temperature sensor output is used, it is highly recommended to be installed on the main battery bank at the negative terminal. The sensor senses the battery Page 26 Enerdrive ePOWER DC2DC 24V Battery Charger Owners Manual (Rev. 1.5) www.enerdrive.com.au Page 27...

  • Page 15: Battery Temperature Compensation

    Please note the battery mode setting has to be set to ‘Flooded’ battery type in-order to have this function activated. Page 28 Enerdrive ePOWER DC2DC 24V Battery Charger Owners Manual (Rev. 1.5) www.enerdrive.com.au Page 29...

  • Page 16: Understanding The Protection Features

    • If the Batteries/Terminals are still cool or only warm, you may have a bad temp sensor. Unplug the temp sensor and when the charger is checking the under voltage recovery limit (see page 18 for details). call Enerdrive. Page 30 Enerdrive ePOWER DC2DC 24V Battery Charger Owners Manual (Rev. 1.5) www.enerdrive.com.au Page 31...

  • Page 17: Specifications

    Height x Width x Depth 242mm x 172mm x 74mm Unit Weight 1.85 Kg Shipping Weight 2.17 kg Note: Specifications are subject to change without notice. Page 32 Enerdrive ePOWER DC2DC 24V Battery Charger Owners Manual (Rev. 1.5) www.enerdrive.com.au Page 33...

  • Page 18: Warranty

    If such a unit is returned more than 30 days but less than two years from the purchase date, Enerdrive will repair the unit or, at its option, replace it, free of charge. If the unit is repaired, 2 Year Limited Warranty new or reconditioned replacement parts may be used, at manufacturer’s option.
  • Page 22 Fill in the details below for your reference and convenience. Notes: Serial Number: Date of Purchase: Purchased From: Page 42 Enerdrive ePOWER DC2DC 24V Battery Charger Owners Manual (Rev. 1.5) www.enerdrive.com.au Page 43...
  • Page 23 ENERDRIVE PTY LTD P.O. Box 9159, Wynnum Plaza, Queensland, Australia 4178 Ph: 1300 851 535 / Fax: 07 3390 6911 Email: support@enerdrive.com.au Web: www.enerdrive.com.au...
