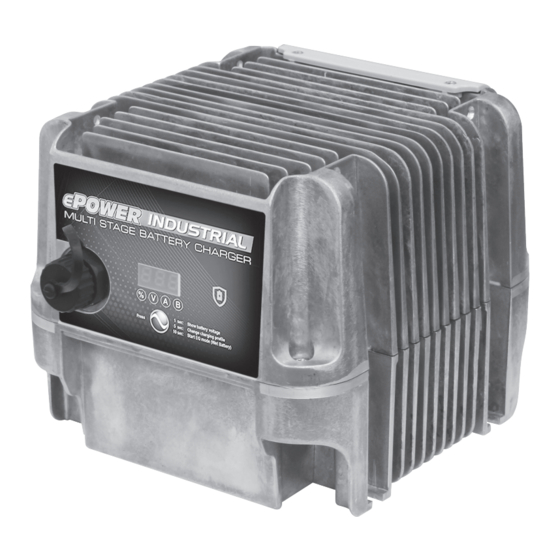

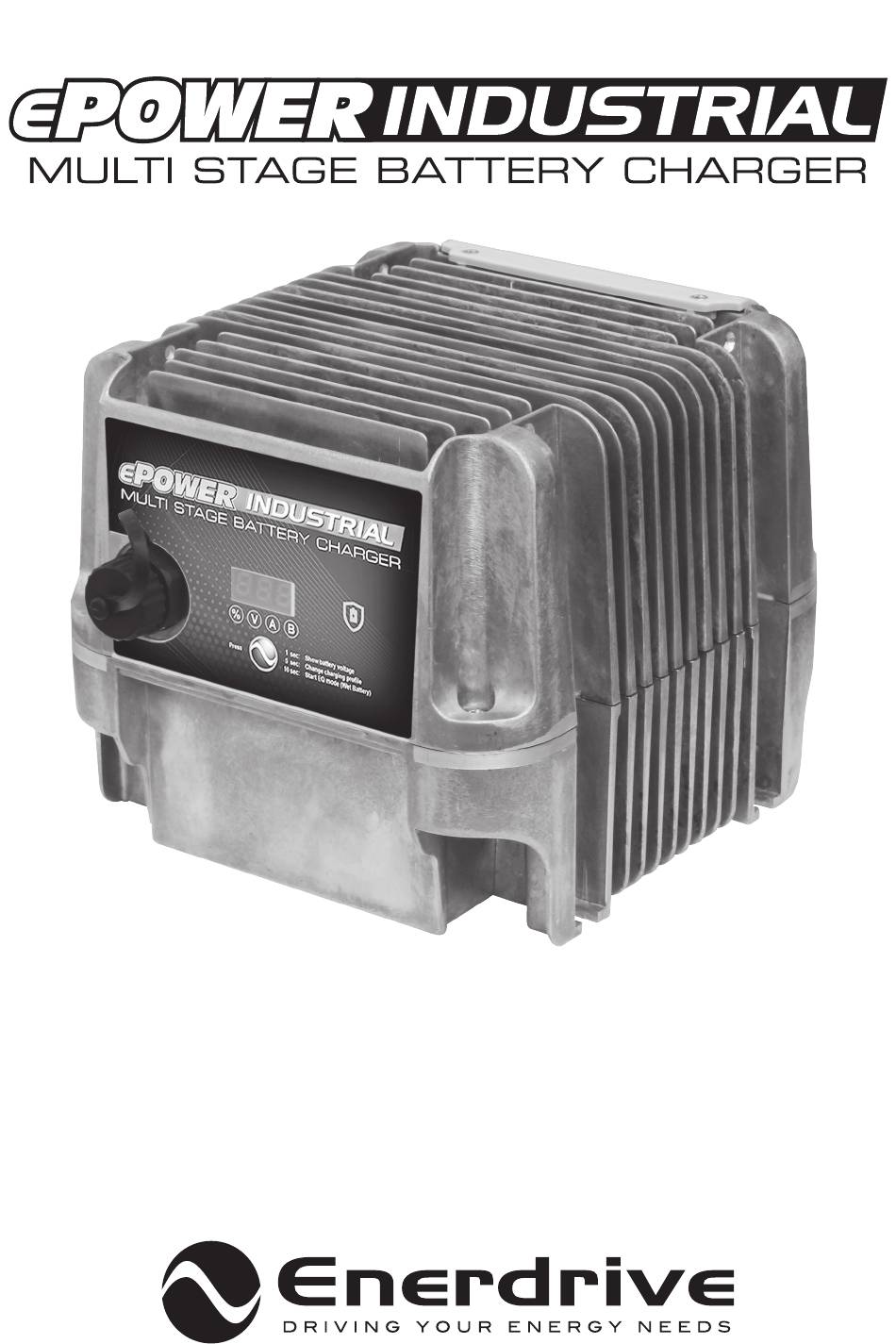

- Page 1 Operation & Owner’s Manual 24V, 36V & 48V Models Rev: 1.6...
- Page 2 CAUTION and WARNING statements. Disclaimer While every precaution has been taken to ensure the accuracy of the contents of this guide, Enerdrive assumes no Important Please be sure to read and save the entire manual before using your Enerdrive ePOWER Industrial Battery Charger.
- Page 3 Shall in no event be liable to anyone for special, collateral, incidental, or consequential damages in connection with or arising out of purchase or use of these Enerdrive products. The sole and exclusive liability to Enerdrive, regardless of the form of action, shall not exceed the purchase price of the Enerdrive products described here in www.enerdrive.com.au...
-
Page 4: Table Of Contents
BATTERY CAPACITY INDICATORS: CABLE CONNECTIONS: MAINTENANCE INSTRUCTIONS: 5. FAULT INDICATOR: 6. WATERPROOFING INSTALLATION: 7. SPECIFICATIONS: 8. CHARGE PROFILE: CHARGE PROFILE INSTRUCTIONS: CHARGE PROFILE TABLE: 9. WARRANTY: 5 YEAR LIMITED WARRANTY: Page 4 Enerdrive ePOWER Industrial Battery Charger Owner’s Manual (Rev. 1.6) -
Page 5: Introduction
1. INTRODUCTION Thank you for purchasing the Enerdrive ePOWER Industrial Battery Charger. With our state Please read and follow these instructions and precautions carefully. IMPORTANT SAFETY INFORMATION: This section contains important safety information for the Enerdrive ePOWER Industrial Battery Charger. Each time, before using the Enerdrive ePOWER Industrial Battery Charger, READ ALL instructions and cautionary markings on or provided with the battery charger, and all appropriate sections of this guide. - Page 6 • Charger is not to be used by persons with reduced physical or mental capabilities or lack of knowledge and experience. Not to be operated or used by children. Page 6 Enerdrive ePOWER Industrial Battery Charger Owner’s Manual (Rev. 1.6)
-
Page 7: Product Description
WARNING • Enerdrive recommends that all wiring be done by a skilled technician to ensure adherence to the best practice standards for on-board DC electrical installations. Failure to follow these instructions can damage the unit and could also result in personal injury or loss of life. - Page 8 Additional Battery Voltmeter Function B Battery Voltage Indicator. To check battery voltage, disconnect charger AC input and press “Select” button for 1 second. Display shows battery voltage. e.g. 24.0 (V). Page 8 Enerdrive ePOWER Industrial Battery Charger Owner’s Manual (Rev. 1.6)
-
Page 9: Battery Capacity Indicators
LED3 (75%) LED4 (50%) <50% (Blinking) >50% (Blinking) >75% (Blinking) 100% LED 1 LED 2 (100% Indicator) LED 3 (75% Indicator) LED 4 (50% Indicator) Algorithm 30+ Algorithm 20+ Algorithm 10+ Algorithm 1 - 9 For example; www.enerdrive.com.au Page 9... - Page 10 Warning: Assure the battery connection cable is well connected with the charger before it is connected to the battery. Otherwise, the battery short circuit may occur and cause personal injury or damage to the battery. Page 10 Enerdrive ePOWER Industrial Battery Charger Owner’s Manual (Rev. 1.6)
-
Page 11: Cable Connections
4a 4b 4c 4a 4b 4c www.enerdrive.com.au Page 11... - Page 12 Interlock Connection - the interlock cable connections provide a normally open or normally closed circuit with no voltage, which change state when the charger is operational. Normally open Normally closed Common Page 12 Enerdrive ePOWER Industrial Battery Charger Owner’s Manual (Rev. 1.6)
-
Page 13: Maintenance Instructions
3. If the detachable AC input power supply cable is damaged, replace with a cable that is a safety approved detachable cable, 3 conductor, 1.5 mm² minimum, and rated appropriate for use in the country of destination. AC input type to the charger is, type IEC 60320 C14 plug. www.enerdrive.com.au Page 13... -
Page 14: Fault Indicator
Output Current is too large Return to the factory for repair. Check and assure that the correct output battery voltage Battery Voltage is too high is connected. Page 14 Enerdrive ePOWER Industrial Battery Charger Owner’s Manual (Rev. 1.6) - Page 15 2) When the battery temperature drops, the charger will reset automatically. E05 Err Internal error in product Return to the factory for repair. Check and assure that the correct output battery voltage E06 bAt Battery Voltage is too high is connected. www.enerdrive.com.au Page 15...
-
Page 16: Waterproofing Installation
Waterproof ring installation of the AC input cable. 1. Slip waterproof ring or grommet over the AC input cable correctly *NOTE: Take care to not overtighten the waterproof clamp. Page 16 Enerdrive ePOWER Industrial Battery Charger Owner’s Manual (Rev. 1.6) -
Page 17: Specifications
10 kg Operating Temperature -20C ~ +50C -20C ~ +50C -20C ~ +50C Storage Temperature -40C ~ +70C -40C ~ +70C -40C ~ +70C *IP Rating: IP66 when AC input waterproof ring/grommet is used. See Page 12. www.enerdrive.com.au Page 17... -
Page 18: Charge Profile
8. CHARGE PROFILE NOTE: You will require a formatted (FAT32) USB memory stick with a capacity of 1024KB or larger. 1. Download and save the Battery Algorithm Listing from the download link www.enerdrive. com.au/Algorithm/ePOWER-algorithm.xlsx Listing” tab in this spreadsheet. 5. Make sure the charger is NOT connected to the battery or AC power. -
Page 19: Charge Profile Table
Trojan L16P-AC Flooded Flooded Common Generic 200-370Ah AGM US.8VGCXC2 Flooded Flooded US. 12VXC2 Flooded Flooded US 305XC Flooded Flooded US 125 XC2 FLA Flooded US 145 XC2 FLA Flooded Crown Crown CR-235 FLA Flooded Crown Crown CR-245 FLA Flooded www.enerdrive.com.au Page 19... -
Page 20: Warranty
Enerdrive warrants that its Products will be free from defects in materials and workmanship (subject to limits, and in normal conditions, as described in the complete Enerdrive Warranty Policy) for up to 5 years from the date of purchase. For full terms, conditions and claim process, refer to the Enerdrive website. - Page 21 ENERDRIVE PTY LTD P.O. Box 9159, Wynnum Plaza, Queensland, Australia 4178 Ph: 1300 851 535 / Fax: 07 3390 6911 Email: support@enerdrive.com.au Web: www.enerdrive.com.au...
