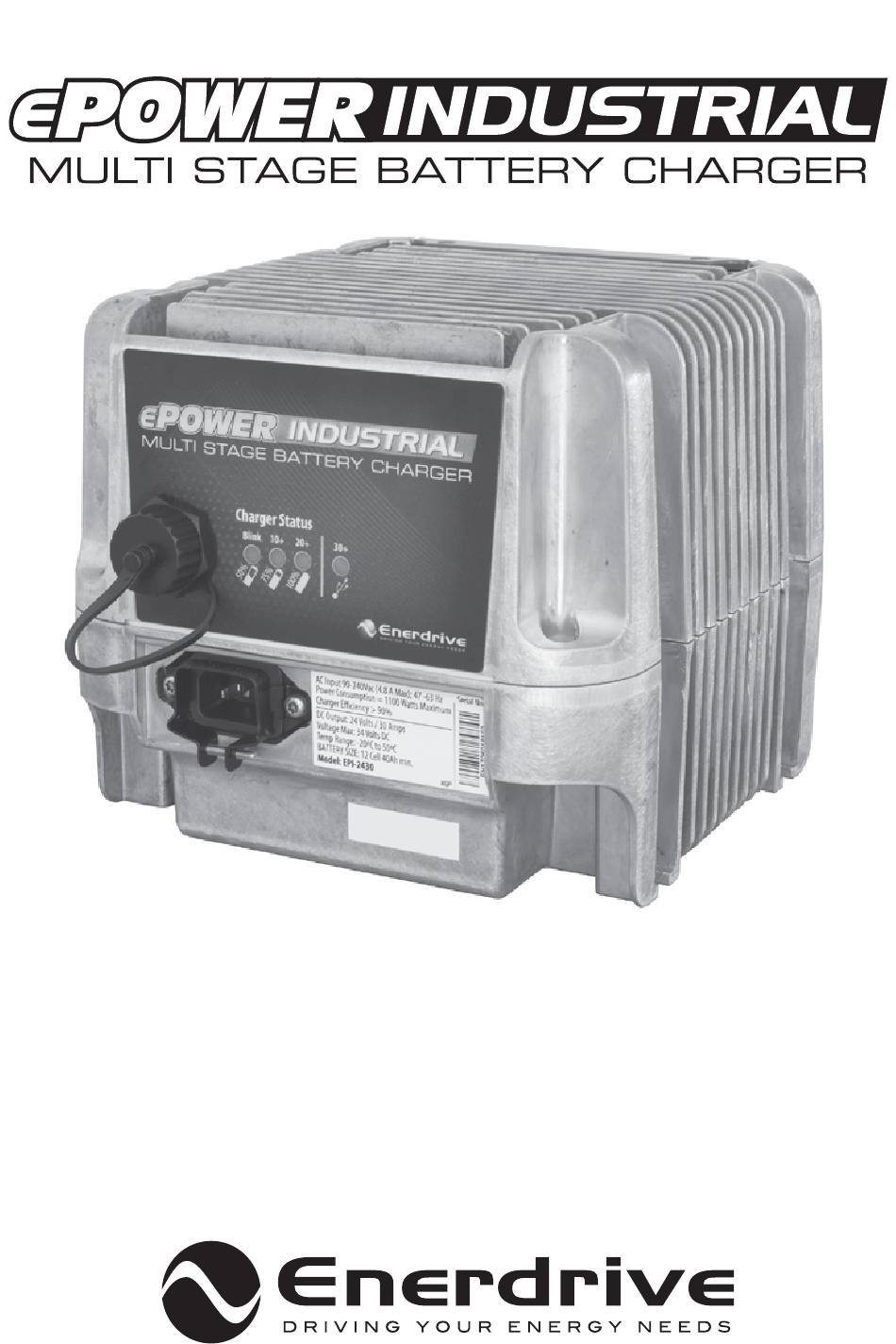

- Page 1 Operation & Owner’s Manual 24V, 36V & 48V Models Rev: 1.4...
- Page 3 CAUTION and WARNING statements. Disclaimer While every precaution has been taken to ensure the accuracy of the contents of this guide, Enerdrive assumes no Important Please be sure to read and save the entire manual before using your Enerdrive ePOWER Industrial Battery Charger.
- Page 4 Shall in no event be liable to anyone for special, collateral, incidental, or consequential damages in connection with or arising out of purchase or use of these Enerdrive products. The sole and exclusive liability to Enerdrive, regardless of the form of action, shall not exceed the purchase price of the Enerdrive products described here in www.enerdrive.com.au...
-
Page 5: Table Of Contents
6. WATERPROOFING INSTALLATION 7. SPECIFICATIONS 8. CHARGE PROFILE CHARGE PROFILE INSTRUCTIONS: CHARGE PROFILE TABLE: 9. WARRANTY 2 YEAR LIMITED WARRANTY: 3 YEAR PRO RATA SUPPORT PROGRAM: RETURN AND/OR REPAIR POLICY: LIMITATIONS: Page 4 Enerdrive ePOWER Industrial Battery Charger Owner’s Manual (Rev. 1.4) -
Page 6: Introduction
1. INTRODUCTION Thank you for purchasing the Enerdrive ePOWER Industrial Battery Charger. With our state Please read and follow these instructions and precautions carefully. IMPORTANT SAFETY INFORMATION: This section contains important safety information for the Enerdrive ePOWER Industrial Battery Charger. Each time, before using the Enerdrive ePOWER Industrial Battery Charger, READ ALL instructions and cautionary markings on or provided with the battery charger, and all appropriate sections of this guide. - Page 7 • Charger is not to be used by persons with reduced physical or mental capabilities or lack of knowledge and experience. Not to be operated or used by children. Page 6 Enerdrive ePOWER Industrial Battery Charger Owner’s Manual (Rev. 1.4)
-

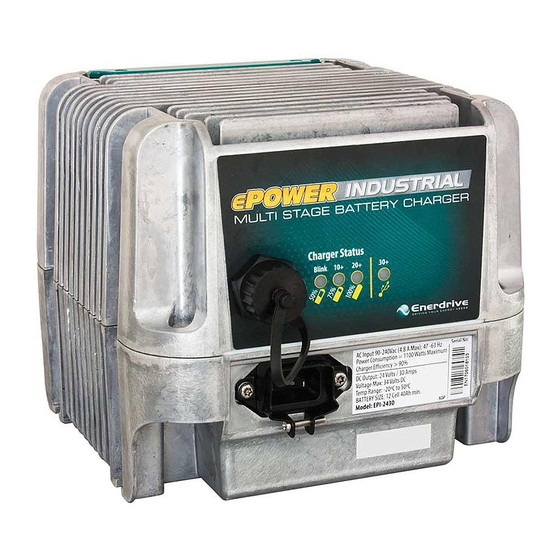

Page 8: Product Description
WARNING • Enerdrive recommends that all wiring be done by a skilled technician to ensure adherence to the best practice standards for on-board DC electrical installations. Failure to follow these instructions can damage the unit and could also result in personal injury or loss of life. -
Page 9: Battery Capacity Indicators
3 conductor, 1.5 mm² minimum, and rated appropriate for use in the country of destination. AC input type to the charger is, type IEC 60320 C14 plug. Page 8 Enerdrive ePOWER Industrial Battery Charger Owner’s Manual (Rev. 1.4) -
Page 10: Cable Connections
Image refers to EPI-2430, EPI-3620, EPI-4815 & EPI-4835 to December 2018 Interlock Connection - the interlock circuit is a normally closed contact and when AC is applied to the charger this contact will switch to an open circuit... - Page 11 Interlock Connection - the interlock cable connections provide a normally open or normally closed circuit with no voltage, which change state when the charger is operational. Normally open Normally closed Common Page 10 Enerdrive ePOWER Industrial Battery Charger Owner’s Manual (Rev. 1.4)
- Page 12 Image refers to EPI-4860 AC Input Red = Positive DC Battery Connection Black = Negative White = Temp. Sens When AC has power - open circuit Brake Switch When AC has NO power - closed circuit Open circuit - charger ON Charger Switch Closed circuit - charger OFF Remote LED...
-
Page 13: Fault Indicator
Output Current is too large Return to the factory for repair. Check and assure that the correct output battery voltage is Battery voltage is too high connected. Page12 Enerdrive ePOWER Industrial Battery Charger Owner’s Manual (Rev. 1.4) -
Page 14: Waterproofing Installation
6. WATERPROOFING INSTALLATION Waterproof ring installation of the AC input cable. 1. Slip waterproof ring or grommet over the AC input cable correctly *NOTE: Take care to not overtighten the waterproof clamp. Page 13... -
Page 15: Specifications
10 kg Operating Temperature -20C ~ +50C -20C ~ +50C -20C ~ +50C Storage Temperature -40C ~ +70C -40C ~ +70C -40C ~ +70C *IP Rating: IP66 when AC input waterproof ring/grommet is used. See Page 12. www.enerdrive.com.au Page 14... -
Page 16: Charge Profile
8. CHARGE PROFILE NOTE: You will require a formatted (FAT32) USB memory stick with a capacity of 1024KB or larger. 1. Download and save the Battery Algorithm Listing from the download link www.enerdrive. com.au/Algorithm/ePOWER-algorithm.xlsx Listing” tab in this spreadsheet. 5. Make sure the charger is NOT connected to the battery or AC power. -
Page 17: Charge Profile Table
Trojan L16P-AC Flooded Flooded Common Generic 200-370Ah AGM US.8VGCXC2 Flooded Flooded US. 12VXC2 Flooded Flooded US 305XC Flooded Flooded US 125 XC2 FLA Flooded US 145 XC2 FLA Flooded Crown Crown CR-235 FLA Flooded Crown Crown CR-245 FLA Flooded www.enerdrive.com.au Page 16... -
Page 18: Warranty
If such a unit is returned more than 30 days but less than two years from the purchase date, Enerdrive will repair the unit or, at its option, replace it, free of charge. If the unit is repaired, new or reconditioned replacement parts may be used, at manufacturer’s option. - Page 19 ENERDRIVE PTY LTD P.O. Box 9159, Wynnum Plaza, Queensland, Australia 4178 Ph: 1300 851 535 / Fax: 07 3390 6911 Email: support@enerdrive.com.au Web: www.enerdrive.com.au...
