Enerdrive ePOWER DC2DC Quick Start Manual

Charger remote panel

Hide thumbs Also See for ePOWER DC2DC:

Installation and Operation Guide

A quali ed technician is required to install the Remote Panel to the DC2DC Charger. Take caution when working with

batteries. Always disconnect the AC Power before you make any installation.

WARNING: Shock, re and energy hazards.

This Remote Panel is to be used with the ePOWER DC2DC series EN3DC30 and EN3DC40+ for single or parallel charger

operation.

Choose an appropriate mounting location

Use the wall cutout template and the Remote Panel mounting template as a reference to mark the positions of the

mounting holes.

For use with the ePOWER DC2DC series with single charger unit operation:

Install the RJ45 Cable in your desired location.

Connect one end of the RJ45 cable to 'Com 1' of Remote Panel. Please note the polarity.

Secure the Remote Panel.

Connect the other end of RJ45 cable to the 'Remote' port of the 12V DC2DC charger. Please note the polarity.

The Remote Panel is now ready to use.

The DC2DC Remote Panel share the same controls and display functions as the display on the DC2DC main unit.

Please read "Understanding the Display & Function Keys during normal operation" for detail.

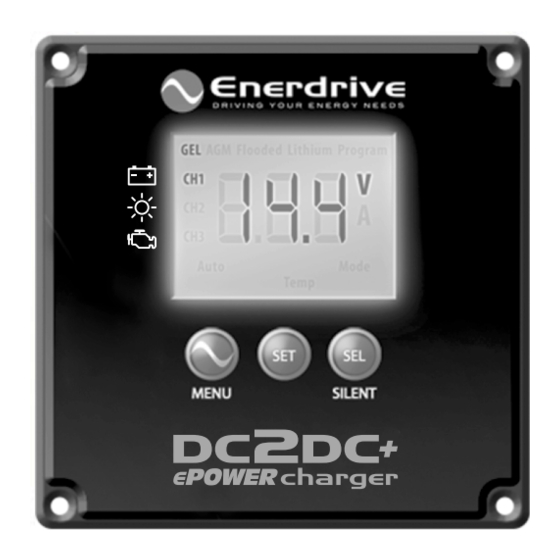

ePOWER DC2DC Charger Remote Panel EN3DCREM
