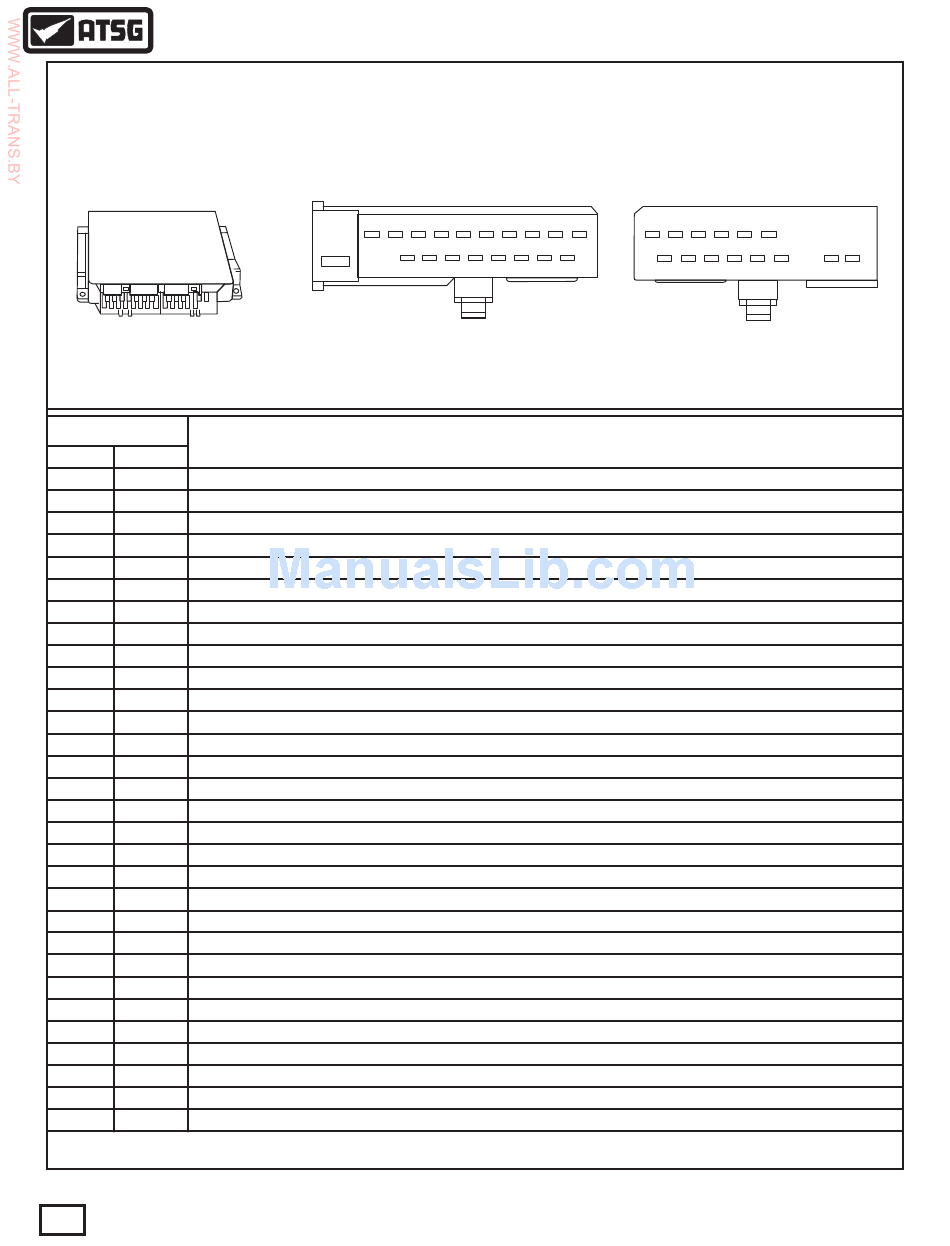

MERCEDES AND CHRYSLER tcm CONNECTOR AND TERMINAL IDENTIFICATION
Transmission Control
Module (TCM)
TCM
Terminal Function
Conn Term
C1 1 Diagnostic Output To Data Link Connector
C1 2 Kickdown Switch
C1 3 Winter/Standard Program Switch
C1 4 Reverse/Park Lock Solenoid
C1 5 & 6 Not Used
C1 7 Passenger Fuse And Relay Module Box
C1 8
Not Used
C1 9
Stop Lamp Input
C1 10
Not Used
C2 12 N2 Input Speed Sensor Signal
C2 13 Sensor 5V Voltage Supply
C2 14 1-2/4-5 Shift Solenoid Ground Signal
C2 15 3-4 Shift Solenoid Ground Signal
C2 16
2-3 Shift Solenoid Ground Signal
C2 17
TCC (PWM) Solenoid Ground Signal
C1 23 & 24
Not Used
C1 25
Transmission Range Recognition Switch (Data "A") (96-99 Only - 2000-Up They use CAN bus)
C1 26 Transmission Range Recognition Switch (Data "B") (96-99 Only - 2000-Up They use CAN bus)
C1 27 Transmission Range Recognition Switch (Data "C") (96-99 Only - 2000-Up They use CAN bus)
C1 28 Transmission Range Recognition Switch (Data "D") (96-99 Only - 2000-Up They use CAN bus)
C1 29 Transmission Control Module (TCM) Voltage Supply
C1 30 Transmission Control Module (TCM) Ground
C2 33 N2 & N3 Input Speed Sensor - TFT Sensor Ground
C2 34 TFT Temp Sensor - P/N Switch Signal
C2 35 N3 Input Speed Sensor Signal
C2 36
Modulation Pressure Control (MPC) Solenoid Ground Signal
C2 37
Shift Pressure Control (SPC) Solenoid Ground Signal
C2 38
Battery Voltage Supply to All Solenoids
C2 L CAN Bus Data Line Low (-)
C2 H CAN Bus Data Line High (+)
22
Technical Service Information
TCM "C1"
Connector
1 2 3 4
23 24 25 26 27 28 29 30
Figure 22
AUTOMATIC TRANSMISSION SERVICE GROUP
5 6 7 8 9 10
TCM "C2"
Connector
12 13 14 15 16 17
33 34 35 36 37 38
Copyright © 2009 ATSG
L H
