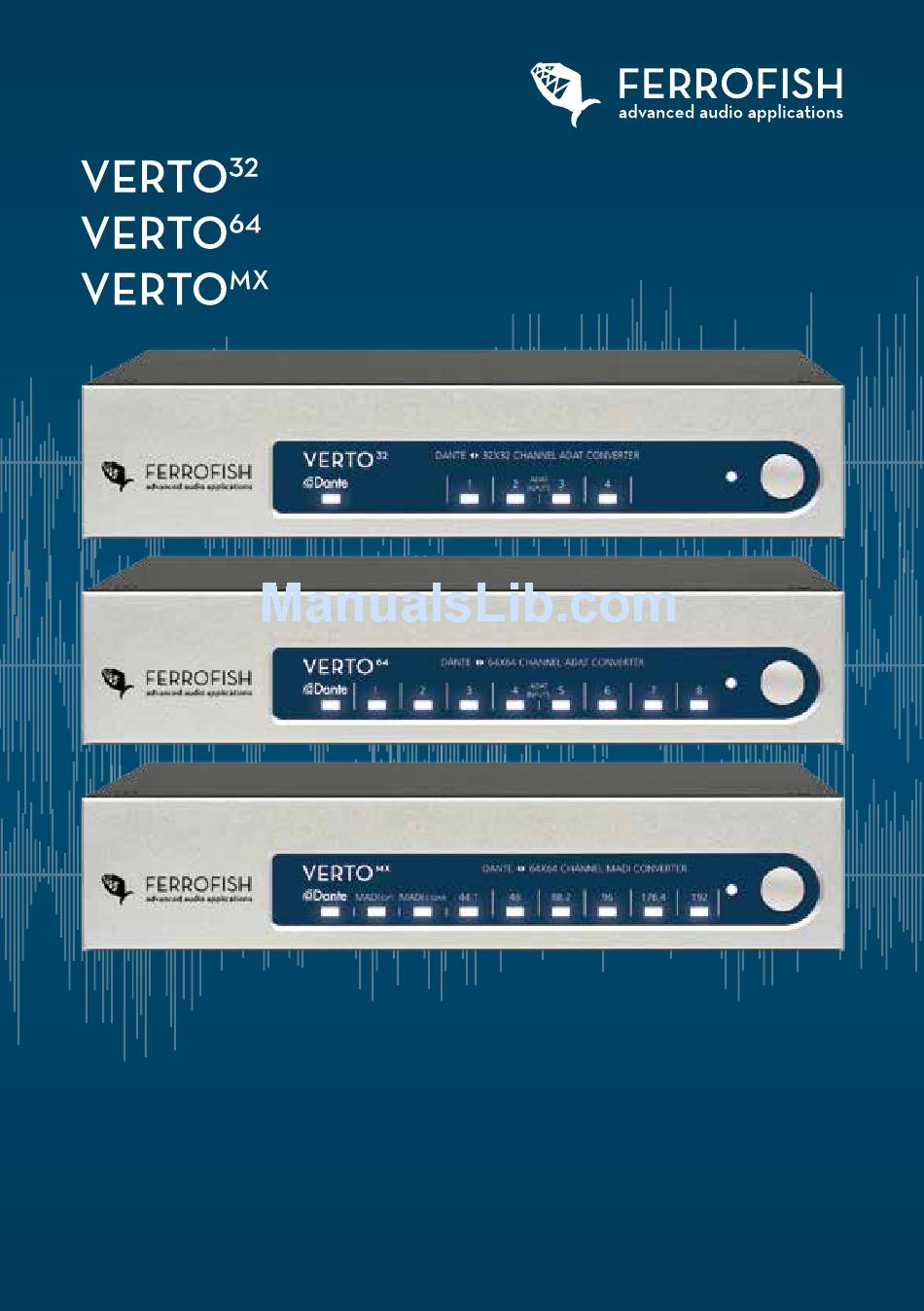

- Page 1 OWNERS MANUAL Version 1.0 Ferrofish Advanced Audio Applications Brüderstr. 10, D-53545 Linz (Rhine) Germany www.ferrofish.de...
-
Page 2: Table Of Contents
02. Safety instructions and warnings 03. Introduction 03.1 Scope of delivery 04. Product Description 04.1 Description of the front panel 04.1.1 Verto 32 and 64 04.1.2 Verto MX 04.2 Description of the rear panel 04.2.1 Verto 32 and 64 04.2.2 Verto MX 04.3 Clocking... -
Page 3: Safety Instructions And Warnings
02. Safety instructions and warnings IMPORTANT SAFETY INSTRUCTIONS Safety symbols used in this manual: This symbol is an alert that there are important maintenance and operating instructions in the literature. This symbol warns the user of uninsulated, potentially dangerous voltage inside the unit that can cause an electric shock. - Page 4 • Read these Instructions • Keep these instructions • Heed all warnings • Follow all instructions 1. Do not use this device near water. 2. Clean only with a dry cloth. Do not spray liquid cleaner onto the faceplate or into the ventilation slots.
-
Page 5: Introduction
Verto series from our product range. It is designed as an easy format converter between ADAT (Verto 32 & 64) or MADI (Verto MX) and the DANTE protocol. We have developed three different models so that you can choose the one most suited to your needs. -
Page 6: Product Description

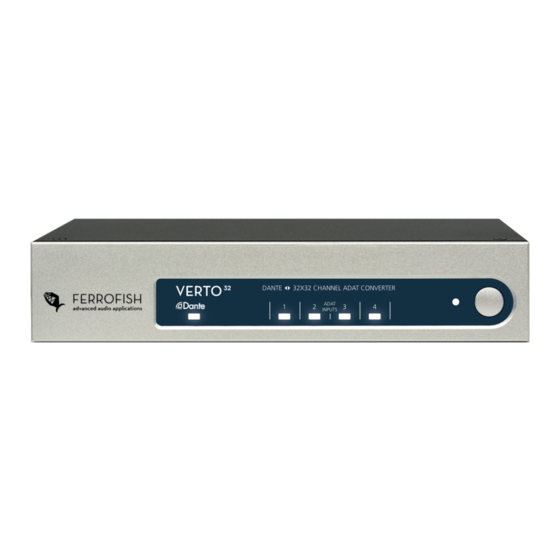

DANTE network. 2. ADAT Inputs (Verto 32: 1-4, Verto 64: 1-8): These status LEDs indicate when an ADAT input has been successfully synchronized to the DANTE network’s word clock. These LEDs are not input indicators. -
Page 7: Description Of The Rear Panel
04.2 Description of the rear panel 04.1.1 Verto 32 and 64 The connections of the Verto 32 and 64 are explained as follows (from left to right): 1. Power supply: Connect the power supply here and lock it with the coupling nut. -
Page 8: Verto Mx
Operating the Verto series is simple. Connect the included power supply to the corre- sponding connector on the back of the Verto. Connect the ADAT (Verto 32 and 64) or MADI (Verto MX) devices to their respective ports on the back panel. Lastly, connect an Ethernet cable (at least CAT5) to an existing DANTE network or to a computer with DANTE Virtual Soundcard installed and the op- tionally available DANTE Controller application (recommended). -
Page 9: Technical Specifications
∙ 2x Ethernet (PRI/SEC) sockets, 1GBit ∙ 64x64 channel Brooklyn II board built-in ADAT I/O ∙ 4x ADAT Input + 4x ADAT Output, optical TOSLINK (Verto 32) (Only Verto 32 & 64) ∙ 32x32 channels at 48kHz, 16x16 channels at 96kHz ∙... -
Page 10: Troubleshooting
08. Troubleshooting Error Possible cause Troubleshooting POWER LED does not light Power supply not plugged in or Check the power supply defective The device is switched off Switch on the device with the power button. Seriously. POWER LED flashes quickly Power button pressed The power LED flashes quick- ly when the power button is... -
Page 11: Legal Information
09. Legal information 09.1: Warranty Every VERTO is thoroughly checked and tested. Ferrofish grants a warranty of two years after purchase thru an authorized dealer or distributor. The invoice is needed as a proof- of-purchase. In case of an permanent malfunction or any other defect under warranty that can’t be fixed by support, please contact your dealer and inquire a repair under warranty. -
Page 12: Declarations Of Conformity, Etc
Responsible Party in USA: Synthax United States, 6600 NW 16th Street, Suite 10, Ft Lauderdale, FL 33313 T.:754.206.4220 Trade Name: Ferrofish, Model Number: VERTO This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential in- stallation. -
Page 13: Waste Disposal (Weee)
In case a disposal of electronic waste is not possible, the recycling can also be done by the manufacturer. For this the device has to be sent free to the door to: Ferrofish GmbH, Brüderstraße 10, D-53545 Linz / Rhein, Germany. Not prepaid shipping’s will be rejected and returned on the sender’s costs. - Page 14 NOTES...
- Page 16 WARNING: Any modifications or other changes to this unit not approved by the party responsible for compliance could void the user’s authority to operate this equipment. 10.4: Waste disposal (WEEE) 10.5: Maintenance 10.6: Service Ferrofish Advanced Audio Applications Brüderstr. 10, D-53545 Linz (Rhine) Germany www.ferrofish.de...
