- Page 1 Owners Manual FERROFISH VERTO , VERTO & VERTO Professional ADAT / MADI <> Dante Converter FERROFISH – Brüderstrasse 10, 53545 Linz am Rhein www.ferrofish.com Version 2.0f...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS Safety symbols used in this manual: This symbol alerts that there are important maintainance and operating instructions in the literature. This symbol warns the user of uninsulated potentially dangerous voltage inside the unit that can cause an electric shock. This symbol warns the user that the output connectors of the power supply contain voltages that can cause dangerous potentially lethal shocks.
- Page 3 1x LC / SC adapter cable (Verto only) 1x Locking plate for ADAT cables including mounting accessories (Verto 32 only) 2x Locking plate for ADAT cables including mounting accessories (Verto 64 only) (Fitting of locking plates only guaranteed when using Ferrofish ADAT cables)
-
Page 4: Product Description

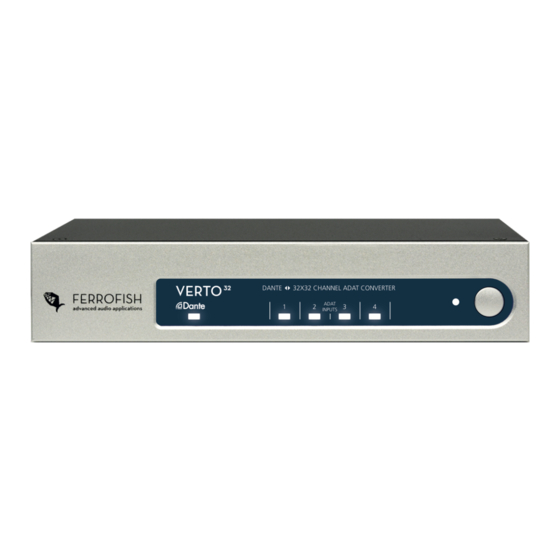

DANTE network. 2. ADAT Inputs (Verto 32: 1-4, Verto 64: 1-8): These status LEDs indicate when an ADAT input has been successfully synchronized to the DANTE network’s word clock. These LEDs are not input indicators. - Page 5 Front panel VERTO The LEDs and operating elements are explained as follows (left to right): 1. DANTE LED: The DANTE LED indicates the state of the DANTE network. When the LED is lit permanently, a connection to the DANTE network exists. A flashing LED indicates that DANTE has muted all channels.
- Page 6 If a valid MADI signal is present on the optical and the coaxial port at the same time, the optical port is automatically used for conversion to DANTE. If you want to use the coaxial MADI input please remove the optical MADI cable. Rear plate VERTO und VERTO The connections of the Verto...
- Page 7 Rear plate VERTO The connections of the Verto are explained as follows (left to right): 1. Power supply: Connect the power supply here and lock it with the coupling nut. Thus, the plug cannot slip out unintentionally. 2. MADI I/O (coaxial): Use these connectors for devices with coaxial BNC MADI.
-
Page 8: Operation
Clocking (!IMPORTANT!) Generally, in a network of DANTE devices, at least one of them should be set to „master / leader“. Therefore set all devices connected to the BNC/Wordclock port of the Verto should be set to „slave / follower“. If there are several DANTE devices connected to a network, then set your preferred device inside the DANTE controller to „Preferred Master“. -
Page 9: Technical Specifications
All settings (Bit depth, sample rate etc.) of the Verto are being set at the Dante Controller application from Audinate. To download Dante Controller for free please visit: www.audinate.com Technical specifications DANTE I/O: 2x Ethernet jacks (PRI/SEC), 1GBit 64x64 channel Brooklyn II Board built-in ADAT I/O: 4x4 optical Toslink ADAT Ports (Verto (Verto... -
Page 10: Troubleshooting
Troubleshooting Error Possible cause Troubleshooting POWER LED does not light Power supply not plugged in or Check the power supply defective Switch on the device with the The device is switched off power button POWER LED flashes quickly POWER button pressed The POWER LED flashes quickly when the power button is (POWER LED flashing quickly... - Page 11 Lauderdale, Florida, 33313 T.:754.206.4220 Trade Name: FERROFISH, Model Numbers: Verto. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 12 For this the device has to be sent free to the door to: FERROFISH GmbH, Brüderstraße 10, 53545 Linz / Rhein, Germany. All un-prepaid shippings will be rejected and returned on the sender’s costs.
-
Page 13: Legal Information
In no event Ferrofish GmbH will be liable for any kind of data loss or data error caused thru the use of our product or documentation. - Page 14 Although the contents of this users guide have been checked for errors, FERROFISH cannot guarantee that it is correct. Ferrofish does not accept responsibility for any misleading or incorrect information within this manual.
- Page 15 Notes:...
- Page 16 All rights reserved. © 2021 Ferrofish GmbH, Version 2.0f Written by: Jürgen Kindermann and Jan Gerhard...
