Ferrofish A16 AE Manual

Ferrofish A16 AE Manual

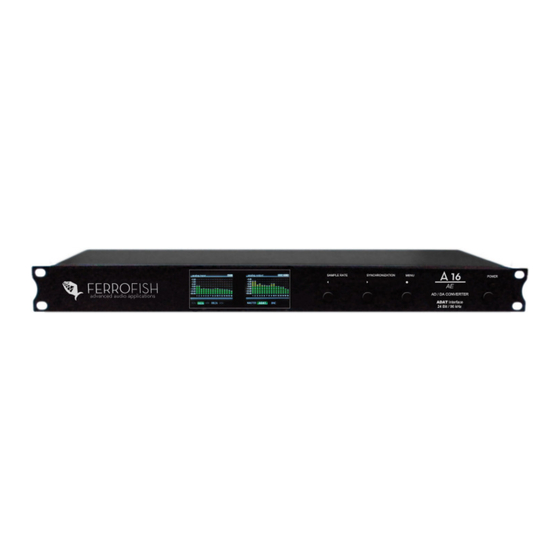

Professional 16 channel ad/da converter

Advertisement

Manual
A16 AE
professional 16 channel AD/DA converter
FERROFISH
advanced audio applications

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A16 AE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ferrofish A16 AE

  • Page 1 Manual A16 AE professional 16 channel AD/DA converter FERROFISH advanced audio applications...
  • Page 2 © Ferrofish GmbH Version 1.1...
  • Page 3 Introduction Thank you very much for choosing to purchase this product. The A16 AE can convert simultaneously, 16 audio channels from digital to analogue (DA) and 16 audio channels from analogue to digital (AD). You can use ADAT as digital interface, or MADI (optional).
  • Page 4: Operation

    Pressing MENU again will then confirm the selected function choice. main screen The TFT main screen shows all 32 channels of the A16 AE as well as the basic settings of sample rate and the input signal from which the A16 AE takes it's timing.
  • Page 5: Digital Interfaces

    If the corresponding field in the TFT is green, the A16 AE found a valid sampling rate at the selected input. In case you have set the A16 AE as MASTER, it will generate the sampling rate. Now you can select the frequency between...
  • Page 6 ADAT is probably the most common digital audio connection used in multichannel interfaces. Since an ADAT cable can transmit 8 channels only, the A16 AE has two pairs of this interface. The number of available channels is only half or only...
  • Page 7 Digital Interfaces device's output will be connected to the next device's input. Hence you can connect, for example, four A16 AE in a row in order to use the maximum number of 64 MADI channels. For more information concerning the MADI upgrade please visit our website: www.ferrofish.de/upgrade...
  • Page 8: Analog Interface

    6dB remains to avoid any digital clipping. Hence you can amplify the inputs by max. 6dB without the converters of the A16 AE distorting the signal. Accordingly the output signal will be on full scale if the digital signal is still below 6dB.
  • Page 9 Press and hold MENU to leave the settings menu. Software The remote control software for the A16 AE you find on our website. In addition you will find a program to upload your own logo in the A16 AE.
  • Page 10: Ce / Fcc Compliance

    CE / FCC Compliance CE / FCC Compliance This device complies with the limits of the European Council Directive on the approximation of the laws of the member states relating to electromagnetic compatibility (RL89/336/EWG, RL73/23/EWG). This device complies with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules.
  • Page 11: Warranty

    Warranty Warranty Each A16 AE is tested by us and all functions are checked extensively. Only high quality components are used, which enables us to give two years full warranty. As confirmation for the purchase date please keep the sales receipt.
  • Page 12 Warranty FERROFISH advanced audio applications info@ferrofish.de www.ferrofish.de...
