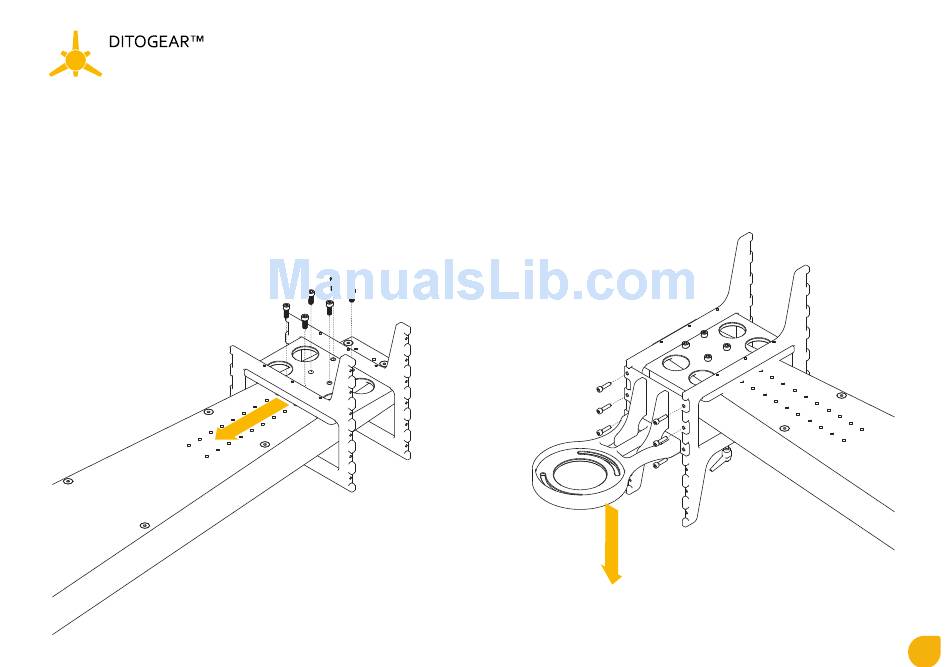

5. Mounting the Slide plate
1 Slide the Slide plate to desire position on the
Rotating Arm
2 Use six M6 (included) screws and a included
thread glue to screw the Slide plate
to the Rotating Arm
3 Tighten the clamping levers
2
1
3
6. Mounting the Side arm
1 Attach the Side arm to the Slide plate on the
desire height
2 Use six M6 (included) screws and a included
thread glue to screw the Side arm to the Slide
plate
