TRINITY
Quick Start Guide

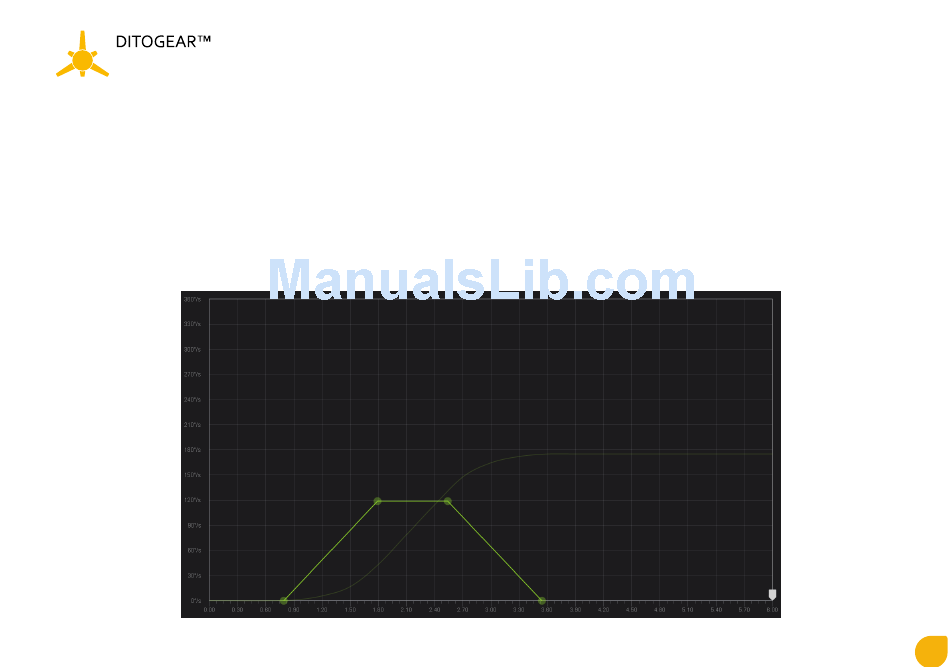

D - Velocity/Time graph.
Each dot represents the keyframe. Vertical graph axis shows the speed of the arm.
Horizontal graph axis shows time.
1 - First keyframe - time when the Arm starts acceleration
2 - Second keyframe - moment when the Rotating Arm reaches operational speed (shown in S)
3 - Line representing Top speed of the rotation - move it up/down to increase/decrease operational speed of the Arm
4 - Third keyframe - time when the Arm starts deceleration
5 - Fourth keyframe - moment whem the Arm stops
2 3 4
1 5
