TRINITY

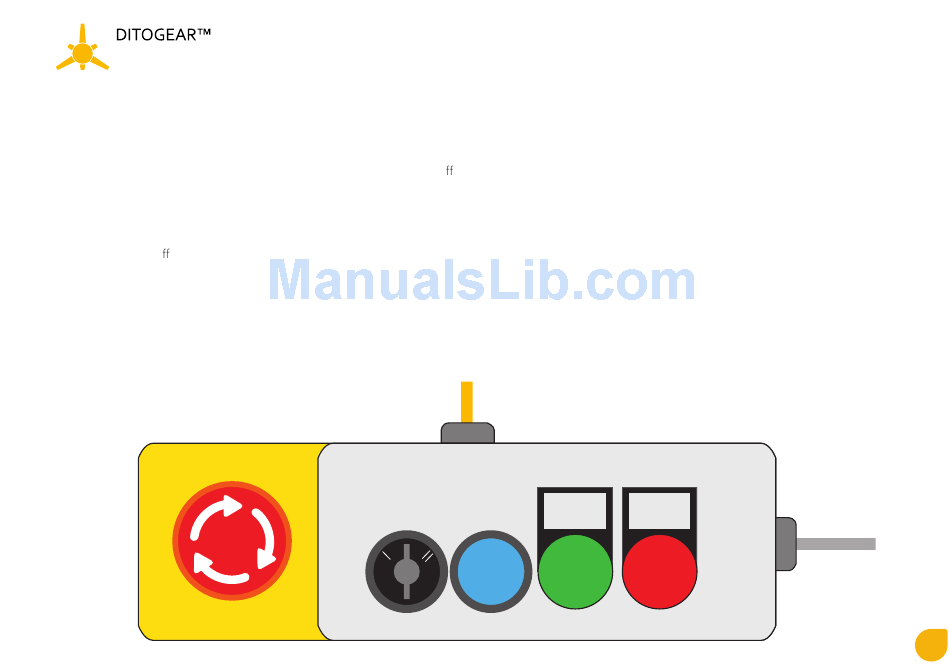

9. Control panel

A - Safety button
- lit up - unit is in operating mode
- in case of an emergency - push the button to cut the power o
(to return to the operating mode, turn the button clockwise)
B - Working mode switch
I - Turned on
0 - Turned o
II - Emergency brake release - to turn the Rotating Arm to the desire position
C - Reset button - to reset the unit after overload
D - Power indicator
E - Alarm indicator (possible overload or other error)
F - 19pin data connector
G - Speedfire cable
A
g
POWER
0
R
b c d
Quick Start Guide
ALARM
e
f
