TRINITY
F - Playhead
It indicates the velocity and position of the Arm during playback. Move the Playhead manualy to get precise info about Position and Time using
Angle Graph (Paragraph 13.H).
G - Grid
Changes the Graph axes fromt vel/time to pos/time

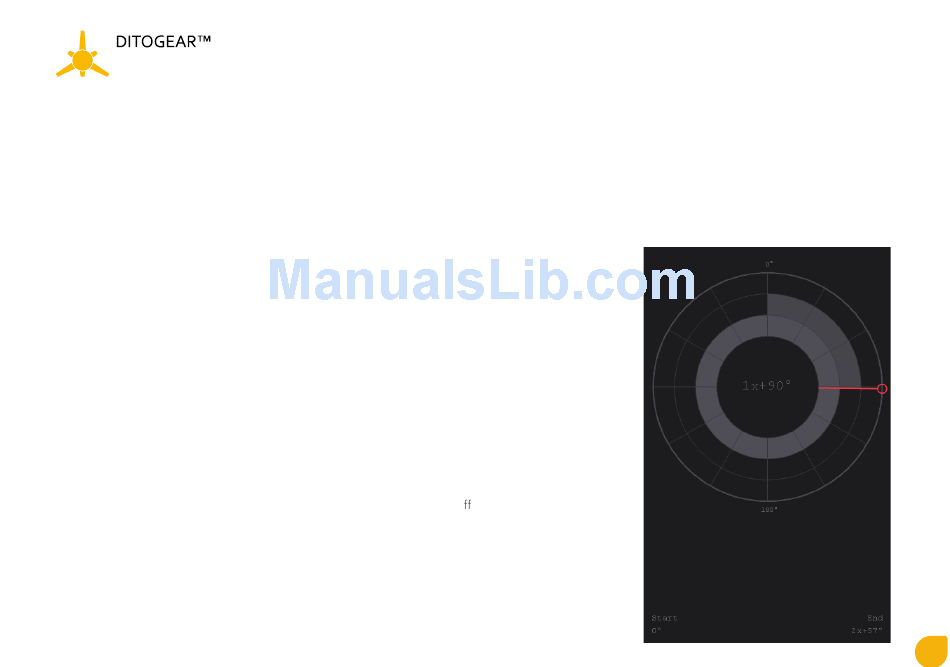

H - Angle Graph
Shows the Angle Graph when user is in Velocity/Time // Position/Time tabs.
1 - visual representation of the position of the Arm at given Time
2 - position of the Arm at given Time . "X" is the number of the full 360° turns of the Arm.
3 - visual representation of the number of the full 360° turns of the Arm.
Each ring represents 360°.
4 - Start/End - range of the movement
I - Playback duration
Duration of the timeline. Maximum time where the keyframes can be adjusted.
J - Playback Speed
Changes speed of the movement and all the keyframes. It don`t a ect the graph units.
100% - full speed
75% - 1/3 times slower
50% - 2 times slower
25% - 4 times slower
10% - 10 times slower
5% - 20 times slower
