TRINITY

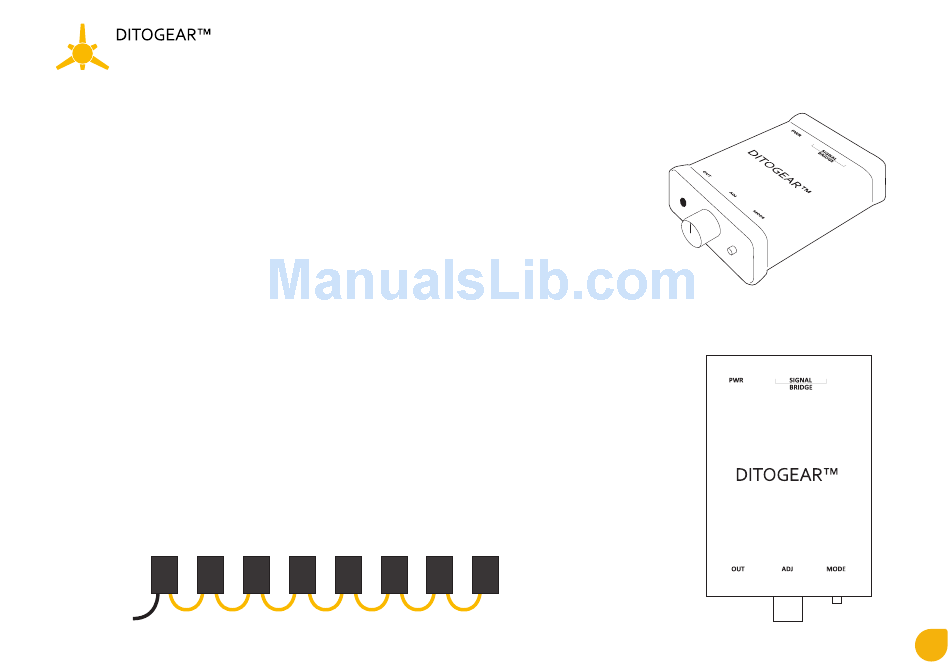

11. Connecting triggers to the Speedfire via Trigger Box
1. Connect 12v power to power input A. You will hear a beep sound indicating the channel of
this particular unit (1 beep = channel 1, 2 beeps = 2 channel, 3 beeps = channel 3).
To change the channel of the unit, press and hold MODE button F for more than 3 seconds.
Unit have a memory and will remember the channel after plugging the power out.
2. Connect RJ45 cable from SPEEDFIRE unit to (AX5 or AX6) the SIGNAL/BRIDGE connectors
(both sockets are IN/OUT sockets).
3. Connect the trigger to the OUT (mini jack 3.5mm) socket.
4. Now you can adjust the gripper/throttle servo trigger postion with ADJ potentiometer.
Press the MODE button once (1 beep) and adjust the first position of the trigger, confirm
the position by pressing the button again. Now adjust the second position of the trigger
by pressing the button again.
5. Valve triggers don`t have to be adjusted because they are binary (open or closed).
6. If needed connect next trigger box to the SIGNAL/BRIDGE socket with RJ45 cable in serial
connection. One power source (A) works with up to 8 trigger boxes connected to the AX5 or AX6.
1 2
A
3 4 5 6 7 8
Quick Start Guide
A
d
e
f
A b c
d e
b
c
f
