Status
Normal
Reset Window
Booting up
Power
On
Off
14
USB (USB-A)
Inserted
Not inserted
WiFi (Wireless models only)
Active
Inactive
PoE
PD connected
PD not connected
WAN & LAN Ports 1 - 4
1G Link up
1G Link up & activity
10M/100M Link up
10M/100M Link up & activity
No Link
FortiGate/FortiWiFi 30D PoE Models Only
LAN Ports 1 - 4 (RJ-45)
FortiASIC-accelerated switched
Ethernet ports for connection to
your network & the internet
USB (USB-A)
USB server ports
PoE LAN Port 4 WAN (RJ-45)
802.af, up to 15.4 W FortiASIC-accelerated
Ethernet port
Internet

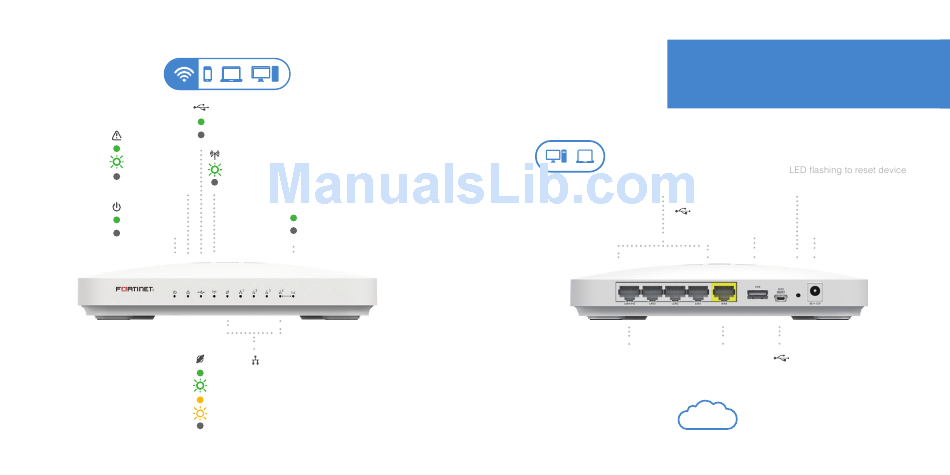

Device Guide
Reset Button
Press and hold when Status
to factory defaults
DC Power Jack
USB MGMT (USB-B)
USB client port for
management
