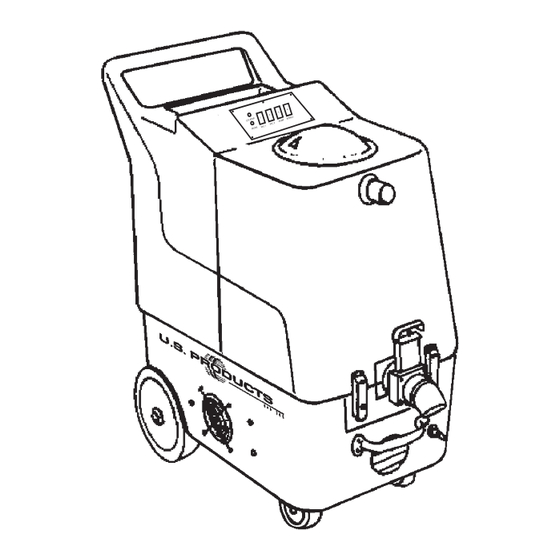

U.S. Products MIRAI Operating Instructions Manual

100v
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
MIRAI
EXTRACTOR
100V
INFORMATION
&
OPERATING
INSTRUCTIONS
DO NOT OPERATE MACHINE UNTIL YOU HAVE READ
ALL SECTIONS OF THESE INSTRUCTIONS
IMPROPER USE OF THE MACHINE WILL VOID THE WARRANTY
1. Always use a defoamer when foaming occurs to prevent vacuum motor damage.
2. Keep machine from rain and snow, extremes in temperatures, and store in a
heated location. Use the machine indoors. Do not use outdoors.
3. Do not let the pump run dry.
4. Use approved chemicals only. NO SOLVENTS.
5. Wear gloves or use rags when removing quick disconnects to prevent burns.
6. Never use water above 54º C/130º F n the solution tank.
5-2010

Advertisement

Table of Contents
loading

Related Manuals for U.S. Products MIRAI

Summary of Contents for U.S. Products MIRAI

  • Page 1 MIRAI EXTRACTOR 100V INFORMATION & OPERATING INSTRUCTIONS DO NOT OPERATE MACHINE UNTIL YOU HAVE READ ALL SECTIONS OF THESE INSTRUCTIONS IMPROPER USE OF THE MACHINE WILL VOID THE WARRANTY 1. Always use a defoamer when foaming occurs to prevent vacuum motor damage.

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS This machine is only suitable for commercial use, for example in hotels, schools, hospitals, factories, shops and offices other than normal residential housekeeping purposes. When using any electrical appliance, basic precautions should always be followed, including the following: NOTE: Read all instructions before using this machine.

  • Page 3: Cleaning Solutions

    INSPECTION: Carefully unpack and inspect your MIRAI for shipping damage. Each machine is tested and inspected before shipping. Any shipping damage incurred is the responsibility of the carrier. You should notify the carrier immediately if you notice damage to the box or to the machine or parts.

  • Page 4: Switch Plate

    SWITCH PLATE: 200 PSI CORD 1 MODE PUMP 300 PSI VAC (1) & PUMP (2) SWITCHES: These switches are powered by cord #1. The Vac and Pump switches will illuminate when turned on. PRESSURE SETTING SWITCH (3): Changes pump pressure. CORD 1 LIGHT (4): This green light will turn on when Cord #1 is pluged in.

  • Page 5: Setup And Operation

    SET-UP and OPERATION: Fill the holding tank with clear water and the detergent of your choice. Mix well. Although this machine is designed to supply instant hot water, the addition of warm water (not above 54º C/130º F) to the holding tank would increase heater efficiency. Turn off all switches.

  • Page 7: Parts List

    Pressure Gauge, 2-1/2 1005 Switch, rocker, for plug #56A Cord connector, three-prong Plate, for plug and switch 2003 Wheel, 8” Axle Cap, Black Label, MIRAI Bracket, axle 910-15.56 Axle rod Louver, 3”, includes screws FP228A Gasket, Base BY-1R Base, HHP, red...

  • Page 8: Troubleshooting

    TROUBLE SHOOTING: IF THIS OCCURS CHECK THIS Solution tank is empty. NO SPRAY Clogged spray tip. Pump not running or not primed. Valve on wand not operating. Check the on/off switch an/dor the wires from the switch to the motor. PUMP DOSEN’T RUN Debris plugging cleaning tool or vacuum hose.
