IR Indoor Mini Dome Network Camera
User Manual

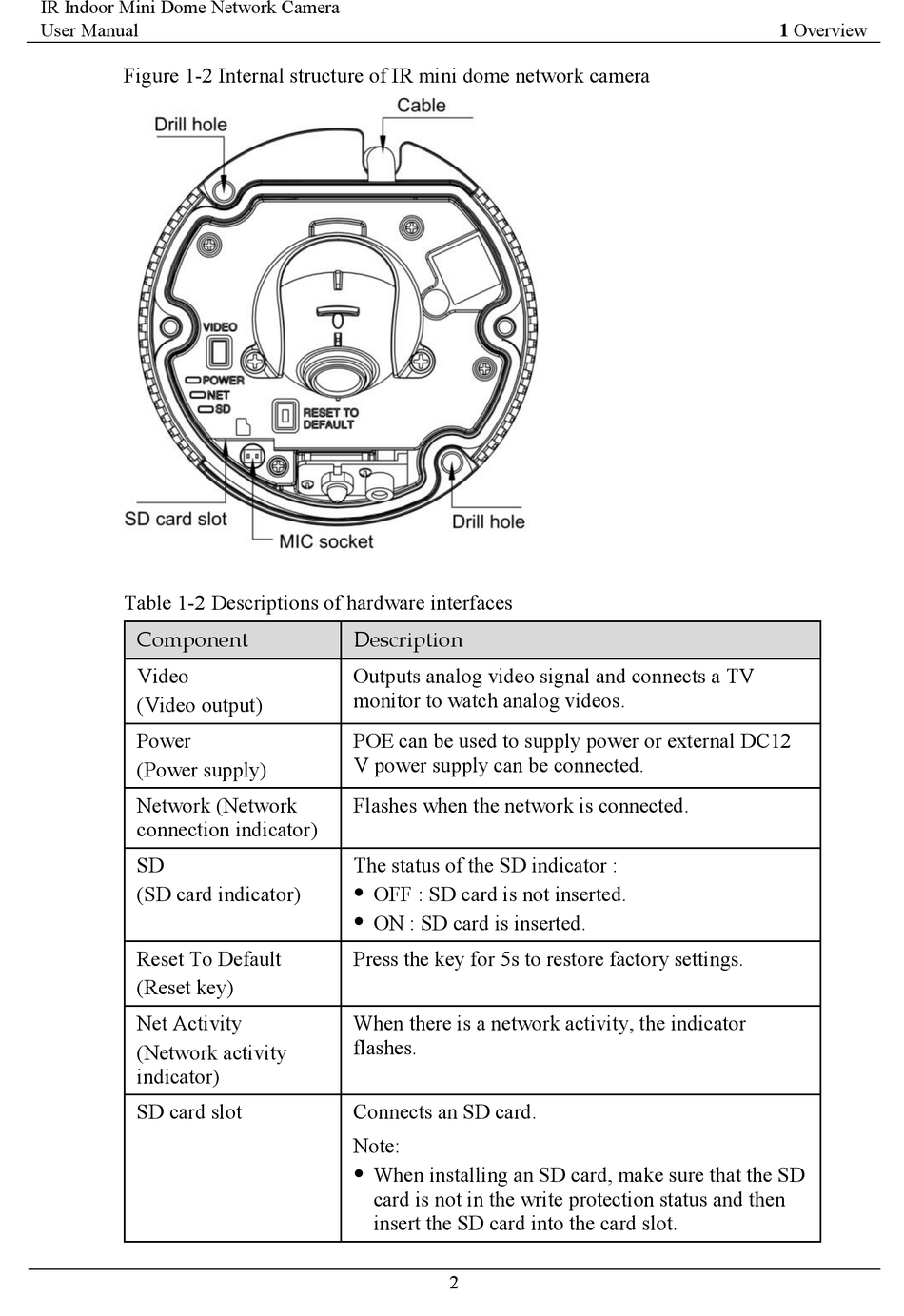

Figure 1-2 Internal structure of IR mini dome network camera
Table 1-2 Descriptions of hardware interfaces
Component
Video
(Video output)
Power
(Power supply)
Network (Network
connection indicator)
SD
(SD card indicator)
Reset To Default
(Reset key)
Net Activity
(Network activity
indicator)
SD card slot
Description
Outputs analog video signal and connects a TV
monitor to watch analog videos.
POE can be used to supply power or external DC12
V power supply can be connected.
Flashes when the network is connected.
The status of the SD indicator :
OFF : SD card is not inserted.

ON : SD card is inserted.

Press the key for 5s to restore factory settings.
When there is a network activity, the indicator
flashes.
Connects an SD card.
Note:
When installing an SD card, make sure that the SD

card is not in the write protection status and then
insert the SD card into the card slot.
2
1 Overview
