IR Indoor Mini Dome Network Camera
User Manual

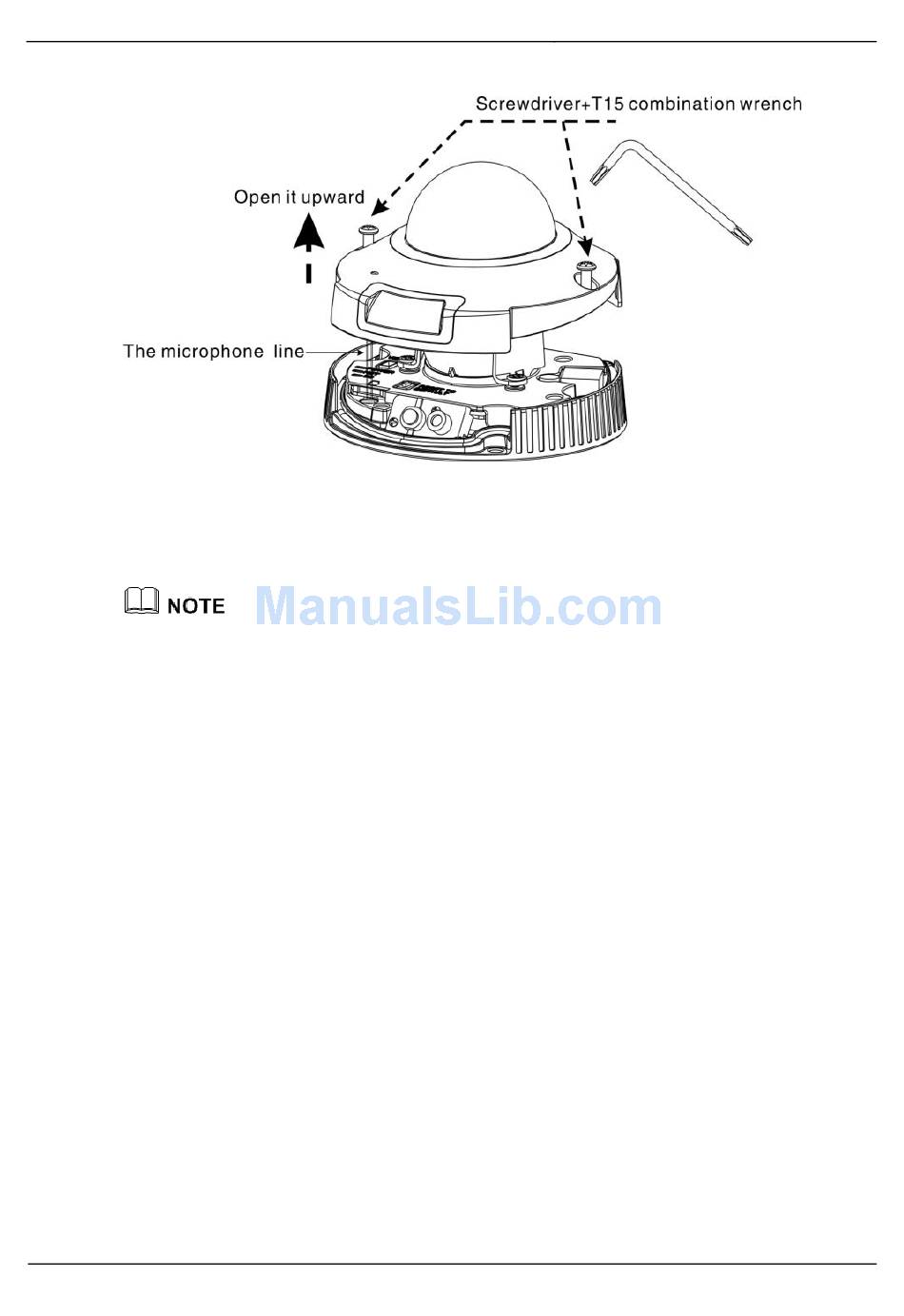

Figure 3-2 Opening the cover
Take out the installation positioning sticker in the package box, remove the release
Step 2
paper on the back of the sticker, and paste the sticker on the required installation
position on the top.
First, determine the required installation direction of the camera. If top cable outlet is used,
drill through holes whose diameter is about 25 mm in the places that are about 15 mm away
from the characters "CABLE OUT" on the sticker.
After pasting the installation positioning sticker, align the drill bit whose diameter is
Step 3
5.5 mm with the two round holes marked with "DRILL HOLE" on the sticker and drill
two holes that are 35 mm deep.
Take out the two white plastic particles in the accessory package, knock the white
Step 4
plastic particles into the drilled two holes by using a hammer, and observe whether the
ceiling is flat. The white plastic particles cannot stand out.
Take the camera whose cover is removed in Step 1, align the two installation holes at
Step 5
the bottom of the camera with the two white plastic particles, take out two black self-
tapping screws in the accessory package, and install the camera on the ceiling by using
an electric Phillips screwdriver, as shown in Figure 3-3.
7
3 Device Installation
