User Manual

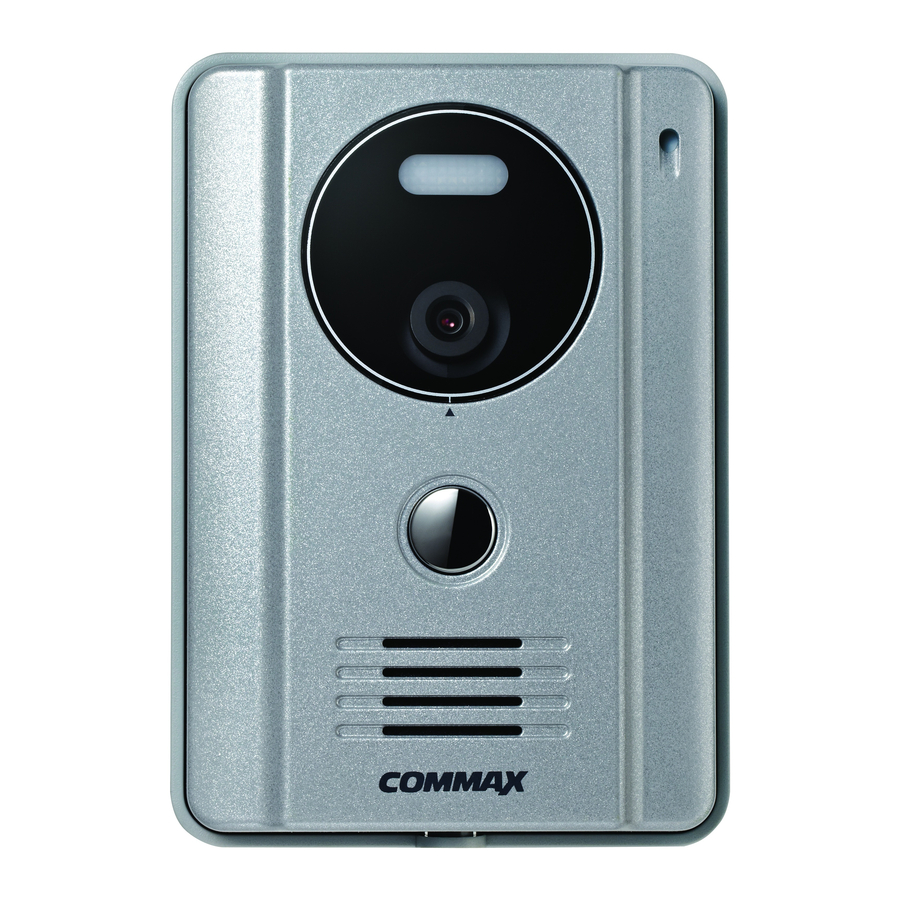

Color Door Camera DRC-4G
• Thank you for purchasing COMMAX products.
• Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
instructions to use a product exactly.
• The company is not responsible for any safety accidents caused by abnormal operation of the product.
Advertisement
Table of Contents
Related Manuals for Commax drc-4g
Summary of Contents for Commax drc-4g
-
Page 1: User Manual
User Manual Color Door Camera DRC-4G • Thank you for purchasing COMMAX products. • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow instructions to use a product exactly. • The company is not responsible for any safety accidents caused by abnormal operation of the product. -
Page 2: Table Of Contents
Contents 1. Introdution................3 2. Important Safeguard............4 3. Overview................5 4. Installation................7 5. Contents................8 6. Specification............... 9... -
Page 3: Introdution
The model number is located on the bottom and record the serial number in the space provided below(available). Refer to these numbers whenever you call upon your COMMAX dealer regarding this product. Model No. -
Page 4: Important Safeguard
2. Important Safeguards ▲ Damage Requiring Service : This equipment from the power source and source and refer servicing to qualified service per- sonnel under the following conditions ⓐ when the power is damaged. ⓑ if liquid has been spoiled or objects have hallen into the unit ⓒ... -
Page 5: Overview
3. Overview... - Page 6 ① White LED & illumination sensor : Offer clear image at night ② Microphone : It delivers voice from a visitor ③ Camera lens : Transferring image It should be kept clean ④ Call button : Call a residence ⑤ Speaker : It delivers voice to a visitor ⑥...
-
Page 7: Installation
4. Wiring and Installation 1. Fix a bracket on a wall with screws 2. Wiring #1, 2, 3, 4 on the back side of a dooor camera with a monitor as shown in [FIG-2] (#1 : VOICE, #2 : GND, #3 : DC12V, #4 : VIDEO) 3. -
Page 8: Contents
5. Contents Camera fixing screw Braket fixing Volume Door camera Bracket screw Sheet... -
Page 9: Specification
6. Specification Model No. DRC-4G Rated Voltage DC 12V (Supplied to monitor) Wiring 4 wires (polarity) to a monitor Wiring 2 wires (non-polarity) to a electric door lock Video Transmission Standard NTSC or PAL STANDARD. Sensor Type CMOS IMAGE SENSOR... - Page 10 513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea Int’l Business Dept. : Tel.; +82-31-7393-540~550 Fax.; +82-31-745-2133 Web site : www.commax.com Printed In Korea / 2013.11.105...
