User Manual
Color Door Camera DRC-4MC
Thank you for purchasing COMMAX products.
Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
instructions to use a product exactly.
The company is not responsible for any safety accidents caused by abnormal operation of the product.
Advertisement
Table of Contents
Related Manuals for Commax DRC-4MC
Summary of Contents for Commax DRC-4MC
-
Page 1: User Manual
User Manual Color Door Camera DRC-4MC Thank you for purchasing COMMAX products. Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow instructions to use a product exactly. The company is not responsible for any safety accidents caused by abnormal operation of the product. -
Page 2: Table Of Contents
Contents 1. Introdution ................2 2. Important Safeguard............3 3. Overview ................4 4. Package contents...............6 5. Wiring and Installation ............7 6. Specification ..............8... -
Page 3: Introdution
The model number is located on the bottom and record the serial number in the space provided below(available). Refer to these numbers whenever you call upon your COMMAX dealer regarding this product. Model No. -
Page 4: Important Safeguard
2. Important Safeguards Damage Requiring Service: This equipment from the power source and source and refer servicing to qualified service per- sonnel under the following conditions: when the power is damaged. if liquid has been spilled or objects have fallen into the unit if the equipment has been exposed to rain or water. -
Page 5: Overview

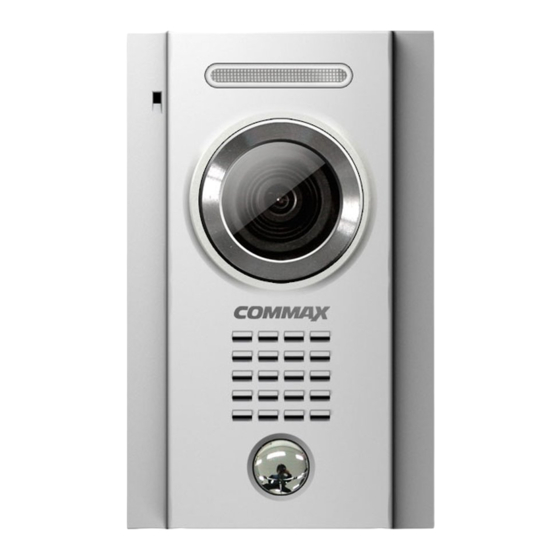

3. Overview White LED & Illumination Sensor : Offer clear image at night Microphone : Deliver voice signal from a visitor Camera Lens : Transfer image * Make sure the lens is always kept clean Speaker : Deliver voice signal to a visitor Call Button : Pressed to call to a household Angle Adjustment Lever : Adjust lens angle Volume Adjuster : Adjust speaker volume... - Page 6 ① White LED & Illumination Sensor : Offer clear image at night ② Microphone : Deliver voice signal from a visitor ③ Camera Lens : Transfer image * Make sure the lens is always kept clean ④ Speaker : Deliver voice signal to a visitor ⑤...
-
Page 7: Package Contents
4. P ack age contents Entrance Camera : DRC-4MC Mounting Bracket Manual T4X18 (2EA) M3X8 (1EA) Volume Sheet Bracket Fixing Screw Camera Fixing Screw Connector (4PX200) -
Page 8: Wiring And Installation
5. Wiring and Installation 1. Match the fix the whole in the wall and the fixing bracket [FIG.1] 2. Match and connect monitor line as shown below [FIG.2] (#1: Audio, #2: GND, #3: DC12V, #4: Video) 3. Adjust camera location on the wall by checking the image on monitor screen and fix its location 4. -
Page 9: Specification
6. Specification Model No. DRC-4MC Rated Voltage / Power Consumption DC 12V (Supplied from monitor) 4 wires to a monitor (polarity) Wiring (Main Unit / Door Release) 2 wires to the door release (non-polarity) Sensor Type CMOS IMAGE SENSOR Video Transmission Standard NTSC or PAL STANDARD. - Page 10 513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea Int’l Business Dept. : Tel.; +82-31-7393-540~550 Fax.; +82-31-745-2133 Web site : www.commax.com Printed In Korea / 2012.05.105...
