Summary of Contents for PartySpace Bonga

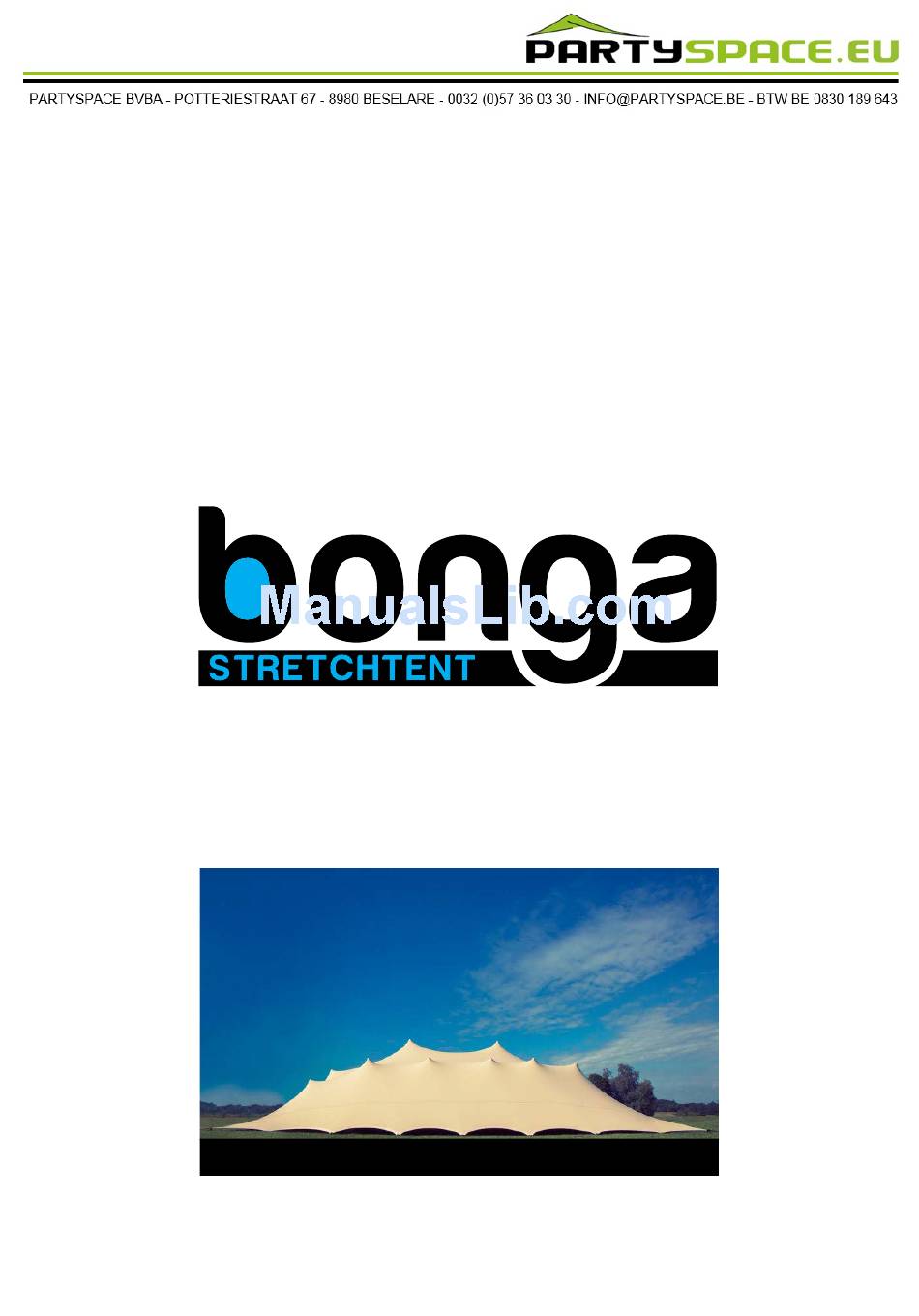

- Page 1 INSTRUCTION MANUAL 10M x 15M...
-
Page 2: Standard Parts
10m x 15m PART LIST STANDARD PARTS These parts are included in the Standard 10m x 15m Bonga Stretchtent DESCRIPTION SIZE MATERIAL QUANTITY CANVAS 10m x 15m fabric SIDE CLAMPS + GRIP 10cm x 11 cm x 10cm reinforced polymere... - Page 3 TENT PARTS: DETAILS SIDE CLAMP The Bonga Stretchtent uses side clamps to hold the tent. You can put them on the reinforced zones every meter in the sideseams of the tent Material: reinforced polymere Size: 11cm x10cm x 10cm Weight: 300gr...
- Page 4 CORNER CLAMP The Bonga Stretchtent uses 4 corner clamps to hold the tent. Material: reinforced polymere Size: 11cm x10cm x 10cm Weight: 300gr Galvanized steel nut, bolt and ring The corner clamps have a grip on the bottom side: you can slide a pole of 40mm diameter on the grip...
- Page 5 WOOD ADAPTOR You only need this adaptor if you want to use wooden CENTER POLES. It is used to fix a pole cap on a wooden pole. Material: reinforced polymere Size: 40mm x 45mm Weight: 100gr LAWN AND CLAY PEGS We deliver standard pegs for lawn and clay of 50cm Material: galvanised steel Size: 50cm x 70mm x 20mm...
-
Page 6: Optional Parts
OPTIONAL PARTS These parts are available on demand. (NOT INCLUDED IN STANDARD TENT) SET OF ALUMINIUM POLES - diameter 40 mm - includes: poles of 110 cm poles of 50 cm adaptors to connect poles in between polefeet - modular and compact - in a heavy PVC bag - pole feet (can be used for poles 40 diameter and 60 diameter) XL POLE CAP... - Page 7 REINFORCED ZONES ON 10m x 15M Warning: Only put the side fixings on the reinforced zones! See setup instructions.
- Page 8 OVERALL INSTRUCTIONS ALways put a clamp at least every 2 meter on a reinforced zone Never use straps with ratchets, use the straps delivered with the tenT WASHING INSTRUCTIONS Use a jetwasher. Never go closer then 20cm! Use a soft brown/black soap with a soft sponge to remove stains Never use aceton / thinner or anu kind of solvent...
- Page 9 SETUP OPTION 10m x 15m: 4 sides open This is a recommended setup option to start with Warning: Only use when less then 85 kmph H= Height of the pole D= Distance from pole to peg...
- Page 10 SETUP OPTION 10m x 15m: 3 sideS CLOSED This is a recommended setup option to start with Warning: Only use when less then 85 kmph H= Height of the pole Put the closed side in the direction of the wind D= Distance from pole to peg...
-
Page 11: Setup: Step
SETUP: STEP 1 PROTECT YOUR TENT Unfold a plastic groundsheet to prevent stains Unfold the tent on the plastic groundsheet... - Page 12 RIGHT SIDE UP The tent is always delivered with the corner fixings attached. When you unfold the tent, the grips of the corner fixings should face the ground. Warning: always make sure the grip is well tightened! Check before you put up the tent!
- Page 13 SETUP: STEP 2 ATTACH THE SIDE clampS Take the plan ‘REINFORCED ZONES’ delivered with this tent to guide you further Only put the side clamps on the reinforced zones! You can see and feel them when you go over the canvas Always make sure the grip is well tightened! Check before you put up the tent! ATTACH the straps to the clamps...
- Page 14 SETUP: STEP 3 Put the pegs The Bonga Stretchtent is standard delivered with pegs for lawn and clay. If you have another surface, please use the suitable pegs! (to find in section ‘optional parts’) The distance (D) of the pegs from the tent is equal to the height (H) of the pole you will use (H=D).
- Page 15 SETUP: STEP 4 USE OF WOODEN POLES (turn you page if you use aluminium standard poles) If you wish to use wooden poles on the sides follow these instructions: make a unscrew hole in the grip the top of your pole of 13mm diameter and 60mm...
- Page 16 SETUP: STEP 4 USE OF aluminium POLES 40mm DIAMETER Slide the grip into the aluminium pole of 40 diameter SUGGESTION: REMOVE PEGS EASILY Do you want to remove a peg? Use this system. Take a wooden or alumium pole from +/- 2m, attach a short strap around it.
- Page 17 SETUP: STEP 5 put up the side poles Put up the 4 corners. Adjust the straps so they are still quite loose. Put up 2 oposite sides. Always choose the sides in the direction of the wind. It will help you! Don’t put too much tension on the straps! Just a little, so the canvas is off the ground.
- Page 18 put the pole cap on the center poles If you use alumium poles of If you use wooden poles, you can follow these steps: 40mm diameter or 1. make a hole in the wood, screw the wood adaptor onto the 60mm diameter, you can easily wooden pole slide them on the poles.
- Page 19 THE ‘PERFECT’ TENSION THE ‘perfect’ tension How do you measure the ‘perfect’ tension? If you are still able to move a strap of 2meters, 10cm back and forth with your fingers, the tension is ‘perfect’. If you cannot do that, you have put too much tension on the tent.
- Page 20 STORM BELT FOR STRONG WIND instructions When there is a risk of a strong wind, it is recommended to put a stormbelt on top of the tent. Where to put the stormbelt? Take the plan ‘SETUP OPTIION’ delivered with this tent to guide you further. SIDEVIEW...
