Occupancy Sensor OCS 100C • Setup Guide (Continued)
Installation
OCS 100C Parts
Nut
Cutting End
Threaded
Mounting Post
NOTE: *
Only use a mask if the PIR sensor needs to be blocked.
Only one mask should be installed at any given time.
ATTENTION:
• All structural steps and electrical installation must be
performed by qualified personnel in accordance with local
and national building codes and electrical codes.
• Toute étape structurelle et installation électrique, doit être
effectuée par un personnel qualifié, conformément aux
codes du bâtiment, aux codes incendie et sécurité, et aux
codes électriques, locaux et nationaux.

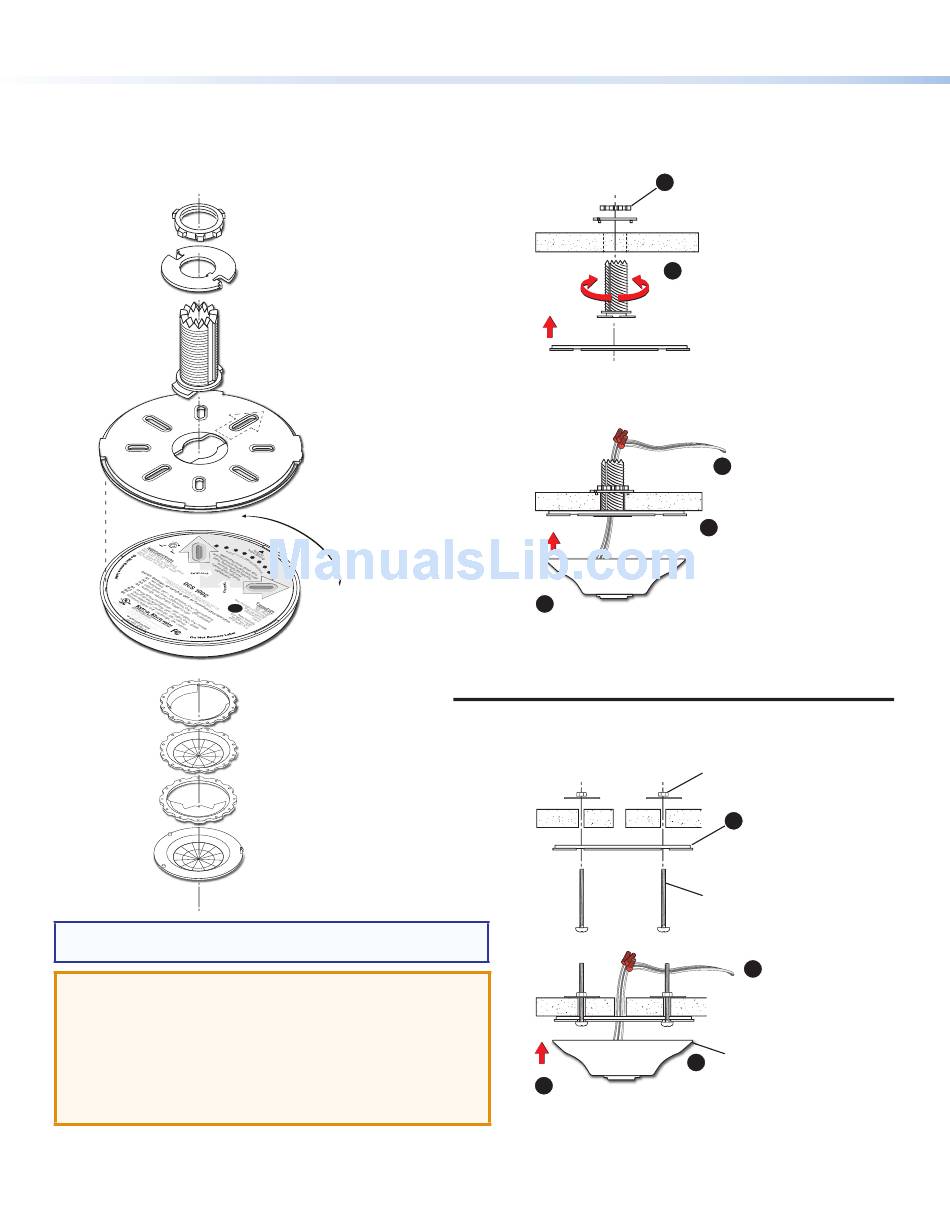

Figure 4.
Installation Diagram
4
Washer
C Cover Plate
30˚ Adjustment
S Sensor Body
*
Conference Room
Mask
*
Full Mask
*
180º Mask
Infrared Lens w/
Retainer Ring
Installation Method 1
Ceiling
Mounting
Post
Cover Plate
Ceiling
Cover Plate
Sensor Body Body
5
Attach sensor body to cover plate
by aligning arrows and twist lock
into place.
Installation Method 2
Ceiling
Ceiling
2
Insert wiring through
cover plate.
2
Secure mounting
post to the ceiling tile with
nut and washer.
1
Twist and lock threaded
mounting post into the
cover plate. Drill into
ceiling tile.
4
Connect building wiring to
wiring harness with wire nuts.
3
Insert wiring through
mounting post.
Nut and Washer (2 ea)
1
Secure cover
plate to the ceiling.
Mounting Bolts (2)
3
Connect building wiring to
wiring harness with wire nuts.
Sensor Body
4
Screw and mount the
twist-lock cover plate.
