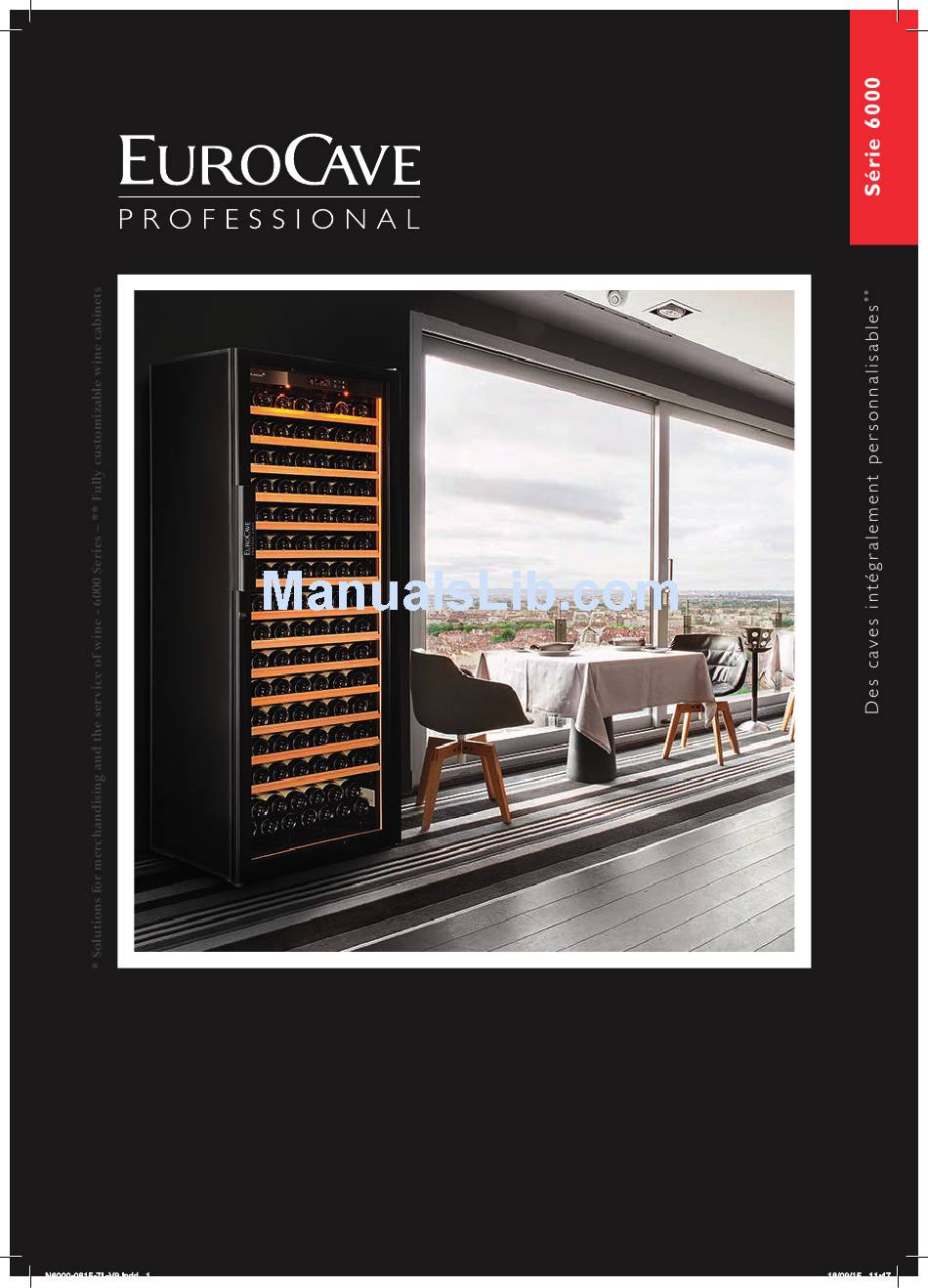

- Page 1 Solutions pour la mise en valeur & le service du vin Mode d’emploi • Technical Manual • Gebrauchsanweisung Modo de empleo • Mode d’emploi • Technical Manual Gebruiksaanwijzing • Modo de empleo • Mode d’emploi • Istruzioni per l’uso • Gebrauchsanweisung N6000-0815-7L-V9.indd 1 18/09/15 11:47...
- Page 2 N6000-0815-7L-V9.indd 2 18/09/15 11:47...
- Page 3 EuroCave Professional offers no guarantee for this appliance when it is used for purposes other than those for which it was designed. EuroCave Professional shall not be held responsible for any errors contained in this manual or for any damage linked to or resulting from the supply, performance or use of this appliance.
- Page 4 WoRld oF RoFessionAl Our priority is helping you to find the best solutions for your wine storage needs…To do so, EuroCave Professional has drawn on its considerable expertise to combine the 6 essential criteria for serving wine: Temperature The two enemies of wine are extreme temperatures and sudden fluctuations in temperature.
-
Page 5: Table Of Contents
II- Adding or changing the position of a storage shelf AXUH2 III- Assembly and use of shelf labels 6 - Commissioning your wine cabinet I Connection and powring up II-A Description (1 temperature model 6074V, 6182V) II-B Temperature setting III-A Description (2 temperatures model (6170D) III-B Temperature setting... -
Page 6: Description Of Your Wine Cabinet

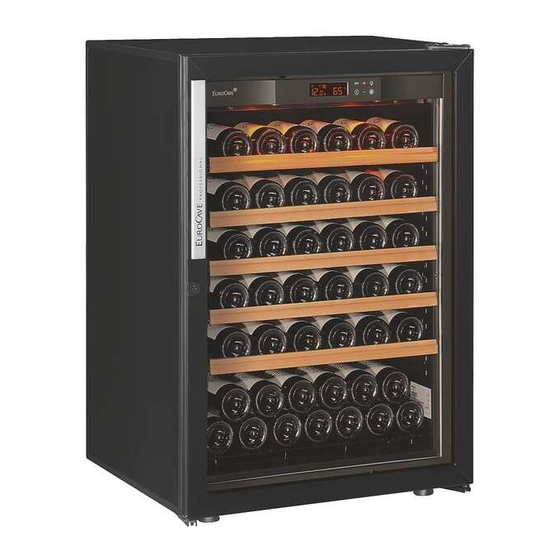

1 - d esCRiPtion oF youR Wine CABinet Cabinet body Grill Setting and control panel Humidity cartridge - 1-temperature model only Lighting (2 LEDs or 4 LEDs on 6170D model) 2 adjustable feet for levelling Light strip (optional extra - except 6170D model) Lower hinge (x2) Breather hole + Active charcoal filter except 6170D Product identification label... -
Page 7: Power Supply
Contact your usual EuroCave Professional retailer to change the power lead if it is damaged. It must be replaced by a EuroCave Professional original manufacturer’s part. If you are moving to a foreign country, check that the supply characteristics of the cabinet If you are moving to a foreign country, check that the supply characteristics of the cabinet correspond to the country (voltage, frequency). - Page 8 4 - i nstAlling youR Wine CABinet • Precautions (Continued) Take the lead and plug it into the connector, located at the back of the • cabinet, on the bottom left-hand side. For 1-temperature models only, place the humidity cartridge (located in •...
-
Page 9: I - Door Reversibility
nstAlling youR Wine CABinet I. Door reversibility (Full Glass only) Upper hinge Door pin Caps Door pin cap Caps Torx screw Hex screw Door catch Lower hinge This allows you to change the direction in which the door opens. Follow Mount the door catch on the desired opening side, using screws. - Page 10 4 - i Côté face Cadre de porte nstAlling youR Wine CABinet avant View from above Seal Door frame Handle Front Lock Lock As the door has turned 180 degrees, reposition your handle above Position the handle on the specially designed groove on the door the lock (Full Glass doors only): Unscrew the three screws placed frame.
-
Page 11: Layout - Storage
5 - l – s Ayout toRAge Your EuroCave Professional cabinet was designed to be adaptable. Its storage equipment adapts to your requirements and can be added to over time. Different types of storage Standard storage equipment Universal storage shelf... -
Page 12: I- Adding Or Changing The Position Of A Sliding Shelf
5 - l – s Ayout toRAge I. Adding or changing the position of a sliding shelf If the sliding shelf is already in place in your cabinet: • Completely unload the sliding shelf. • Then remove the sliding shelf by sliding it towards you whilst lifting the front section. •... - Page 13 5 - l – s Ayout toRAge TAC ! Place your shelf on the left and right runners and start by locking the back section of the shelf. Slide the shelf along until the back fasteners of the shelf lock into Then place the front studs of the shelf into the slots provided in the slots provided in the runners.
-
Page 14: Ii- Adding Or Changing The Position Of A Storage Shelf Axuh2
5 - l – s Ayout toRAge II. Adding or changing the position of a storage shelf AXUH2 back wall Note: to install a storage shelf the back section of which rests on the ledge, located at the back of the cabinet, fit 2 rack support pins at the front to support the front section of the shelf (pins supplied in the accessories bag). -
Page 15: Commissioning Your Wine Cabinet
Have your plug checked (presence of fuses, amps and 30 mA circuit breaker). Do not plug several cabinet into a multi-socket. II-A. Description (1-temperature 6074V, 6182V model) The tactile keys are very sensitive. There is no need to apply force, only a light touch is required to register the command. -
Page 16: Iii-A Description (2 Temperatures Model (6170D)
6 - C ommissioning youR Wine CABinet III-A. Description (2-temperature model) 6170D The tactile keys are very sensitive. There is no need to apply force, a light touch is sufficient to register the command. Remember to remove your finger from the panel between presses. Lighting mode Setting and selection keys Open door alarm... -
Page 17: Iv-A Description (Multi Temperatures Model (6074S, 6182S)
6 - C ommissioning youR Wine CABinet IV-A. Description (multi-temperature model) 6074S, 6182S The tactile keys are very sensitive. There is no need to apply force, a light touch is sufficient to register the command. Remember to remove your finger from the panel between presses. Lighting mode Lighting mode access and confirmation key Open door alarm... -
Page 18: Relative Humidity Level Display
6 - C ommissioning youR Wine CABinet V. Relative humidity level display (1-temperature model only) Your wine cabinet has a function for measuring humidity levels, allowing If you want to increase the level of relative humidity in your cabinet, pour you to see the level of relative humidity inside the appliance, when the the equivalent of one glass of water into the duct of the tray located on setting is 9 - 15°... -
Page 19: Everyday Maintenance
All traces of cleaning product must be removed from the seal. EuroCave Professional only recommends using a mild soapy solution. If this proves insufficient, it is possible to occasionally use an ethanol-based solution, provided that the concentration used is less than 10% and that the seal is then rinsed thoroughly with clear water. -
Page 20: Operating Faults
Temperature sensor Contact your EuroCave Professional retailer. pictogram is displaying fault alarm If your appliance does not seem to be working correctly, contact your EuroCave Professional retailer. 9 - e neRgy And teChniCAl FeAtuRes 6000 Height Width... -
Page 21: Energy And Technical Features
EN60335-1: Version 5 - 2010 +A1 + A2 + A11 + A12 + A13 EN60335-2-89 2- eMC - Directive 2004/108/CE R600a Standard EN55014-1/2 3- e - Directive 2010/30/EU nvironMent Depending on the country, EuroCave Directive 2010/30/EU wine cabinets may contain flammable Regulation 1060/2010 refrigerant gas (R600a: ISO BUTANE). N6000-0815-7L-V9.indd 21 18/09/15 11:48... - Page 22 otes ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ N6000-0815-7L-V9.indd 22 18/09/15 11:48...
- Page 23 This document is the property of Eurocave company and cannot be comunicate without written agreement. Ce document est la propriété de la société Eurocave et ne peut être communiqué sans autorisation écrite. in configurazioni di fabbrica con bottiglie bordolesi tradizionali.
- Page 24 This document is the property of Eurocave company and cannot be comunicate without written agreement. Ce document est la propriété de la société Eurocave et ne peut être communiqué sans autorisation écrite. calcolate in configurazioni di fabbrica con bottiglie bordolesi tradizionali.
