Summary of Contents for Pocketbook 602

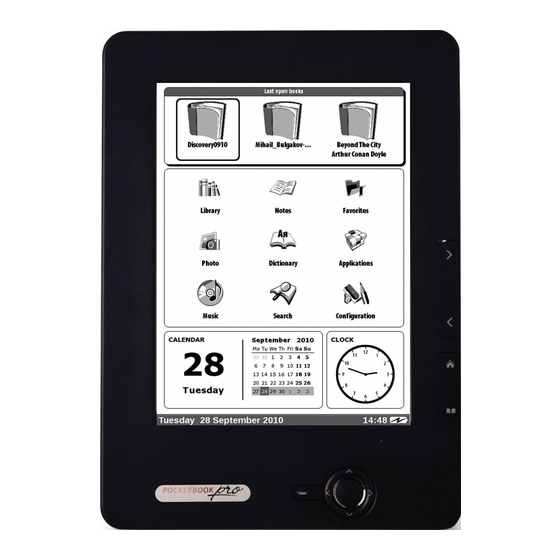

- Page 1 PocketBook eReader User's Manual for Pocketbook 602 DRAFT. NOT PRINTING EDITION. ...
-
Page 2: Table Of Contents
CONTENT PRECAUTION MEASURES……………………………………………………………………………………….…………………………… 2 DEVICE DESCRIPTION …………………………………………………………………………………………………………..……………. 3 GETTING STARTED WITH POCKETBOOK 602……………………………………………………………………………………… 4 USING THE DEVICE……………………………………………………………………………………………………….……………………. 5 MAIN MENU ……………………………………………………………………………………………………………………......5 LAST OPEN BOOK …………………………………………………………………………………………………………………………...6 WIDGETS………………………………………………………………………………………………………………………………………..6 LIBRARY…………………..…………………………………………………………………………………………………………………….7 ONLINE LIBRARY BOOKLAND ………………………………………………………………………………………………………. 8 FAVOURITES……………………………………………………………………………………………………….………………………… 8 NOTES ……………………………………………………………………………………………………………………….………………..…9 SEARCHING …………………………………………………………………………………..………………………….………………….…9 APPLICATIONS ……………………………………………………………………………………….…………………………………….10 MUSIC ……………………………………………………………………………………………………………….……………………….…10 PICTURES ………………………………………………………………………………………………………………………………….…11 DICTIONARY………………………………………………………………………………………………………………..……………….12 CONFIGURATION………………………………………………………………………………………………………………..……….. 12 READING WITH E‐BOOK…………………………………………………………………………………………..……………………..…17 PRELIMINARY ACTION …………………………………………………………………………………………………………………17 PAGING ……………………………………………………………………………………………………………….……………………..…18 CHANGE THE FONT SIZE …………………………………………………………………………………………………………….…18 GO TO THE LINKS IN THE BOOK …………………………………………………………………………….…………………...…18 SHORTCUT MENU ……………………………………………………………………………………………………………………...………19 OPEN PAGE IN THE BOOK …………………………..…………………………………………………………………………………19 TURN BOOKS……………….……………………………………………………………………………………………………………..…19 SCALE …………………………………………………………………………………………………………………………………………..19 BOOKMARKS …………………………………………………………………………………………………………….….…………….…20 NOTES ……………………………………………………………………………………………………………………..…..…………….…20 ACTIVE CONTENT …………………………………………………………………………………………………………………………21 SEARCH …………………………………………………………………………………………………………………….….……..…..……21 DICTIONARY ……………………………………………………………………………………………………………...…..…………..…21 CONTENTS ……………………………………………………………………………………………………………...……..………..……22 SETTINGS …………………………………………………………………………………………………………………..….……….……22 TEXT TO SPEECH ……………………………………………………………………………………………………………………….…22 WORKING WITH KEYBOARD ………………………………………………………………………………………………..……………23 POSSIBLE PROBLEMS AND SOLUTIONS FOR THEM …………………………………………..……………….…….…………23 TECHNICAL SPECIFICATIONS…………………………………………………………………………………………..…………………24 ... -
Page 3: Precaution Measures
PRECAUTIONARY MEASURES 1. Do not expose to direct sunlight, very high or very low temperature. Remember! Operating temperature for this device from 0 ° C to 40 ° C. 2. Keep the liquid away from the device. Do not store the device in high humidity. Moisture in the device may cause shortcircuiting of electronic parts and battery products. In case of contact with liquid, immediately turn it off and remove the battery! Take the device to a service center. ... -
Page 4: Device Description
DEVICE DESCRIPTION Indicator While charging, the battery indicator blinks orange. The device is charged, if the indicator changes to green. “Power On/Off” button Turn on / off devices (long press), a short press, you can set the action in the device settings in the item "Appointment of keys" he "OK" button hoice confirm, call the shortcut menu. The "Up, Down, Left, Right" buttons Direction buttons. Allows you to navigate through menus and other objects. he “Forward/Back” paging buttons hile reading should go to next / previous page. The "Return" button Return to the previous menu, close the book. Long press ‐ forced closure of the program. The “Menu” button. Exit to the device's main menu. The "Library" button. Calls "Library" section. The “Reset” button The reset button is located on the lower front panel, the extreme left and labeled «RESET». When you push it the device will performs a reset. 3,5 mm headphones jack Designed to connect the headphones to the jack 3,5 mm. Slot for Micro SDcard Slot for external memory card. (micro SD may not be included). ... -
Page 5: Getting Started With Pocketbook 602
Micro USB Connector to a computer or a charger (charger may not be included). peakers speakers by 0,5 W. Designed for listening to music without headphones. GETTING STARTED WITH POCKETBOOK 602 Step 1. CHARGE UNIT For the first time the device must be charged off from 8 to 12 hours. PocketBook 602 can be recharged from a computer through a micro USB cable, or using a network adapter from the network. To charge t he device f or the first time, follow successively the following points: 1. Make sure the power is turned off and the LED is not lit. If it is turned o n, press and hold a few seconds the button "Power". 2. Connect the device with your computer / network, with the right cord. 3. The indicator turns red or orange, as soon as the charge. 4. The indicator turns green or turns off when the device is fully charged. 5. Now you can unplug the device and turn it to the first use. If the device is left on during charging, the screen will PocketBook please choose the type of connection ‐ the battery is charged or data connection. Charging will begin only if you select the appropriate mode. STEP 2. Turn on Press and hold "Power" to turn the device. While inclusion on the screen‐saver image. When the device is eady to work, the image replaced the main menu, which represents the last open book, widgets, and the ain features PocketBook 602. STEP 3. READ THE MANUAL Instructions loaded into internal memory, so you can look at it at any time and find a detailed description of the features that you can use. ... -
Page 6: Main Menu
DEVICE USAGE MAIN MENU After switching on and download the device appears on the screen the main menu: To get to the main menu of the other sections or modes, use the "Menu" button on the front panel or successively press "Return". LAST OPEN BOOK Displays a list of recently opened documents. The number of displayed documents depends on the type of ayout, the main menu. WIDGETS Widget is a single element. The main task ‐ display of relevant / interesting information and a uick transition to full information. Number and type of widgets can be changed depending on the type of layout, the main menu. A standard set of widgets: • Watches (1 module) • Calendar (1 module) • Dictionaries (1 module) ... -
Page 7: Library
• Calculator (1 module) THE MAIN PANEL CONTAINS: • Library. Catalogue of all lite rature is present on the device. • Notes. List of notebooks with notes, bookmarks • Program. List of programs. • Photos and drawings. Catalogue of images on the device. • Settings. • Favorites. What links shortcut. • Dictionary. • Search. Search for the des ired book. • Music. List of music files. LIBRARY To g to the section of the book, then click Lib rary in the main menu: tures: 1. Go to the electronic libr ary Bookland ... -
Page 8: Online Library Bookland
Only the SD ‐card Screen or ientation Sort ing: By name By author o In a serie s o By creati on date Find a book ONLINE LIBRARY BOOKLAND To access the electronic library Bookland, in the Library section, click the item BookLand. PocketBook 602 allows you to view and read books from the library e‐book store BookLand. The device gets access to the library through the Internet connection (via Wi‐Fi connection or via Bluetooth). Note: To access the library BookLand you need to first establish a connection to the Internet via WiFi or lueTooth connection. More information about configuring and activating the connection, see the Configura tion section. Features: • User registration in the library; • Setting up the entrance to the library; • Review and management of bookshelves and books to them; • Access to new / most popular b ooks in the store / free the library; ... -
Page 9: Notes
o List o Thumbnails Detaile d o The nam es on the list Book Title File name o Filter o No o Only the inte rnal memory o Only the SD‐ card Screen or ientation t: By name By author o In a serie s o By creati on date Find a book NOTES ... -
Page 10: Applications
Solitaire "Klondike". Sea fight Best‐selling game of Battleship. Sudoku Japanese puzzle Sud oku. nake he game "Snake" MUSIC To go to the section "Music", click "Music" section in the main menu: Listen to your favorite music in MP3 format directly to PocketBook 602. How o t download audio files from your computer? 1. Connect the device to a computer using a micro USB cable. 2. Once you connect the cable, the screen will Pocketbook please choose the type of connection ‐ the battery is charged or data connection. Select "Connect to the data (there is generally a" Communication with PC) 3. Internal memory device and memory card, micro SD (if it is inse rted into PocketBook) appear on the computer in the form of new discs. Copy the files to a special folder Music. 4. In the main menu, open the "Music" section to open the player. 5. Select a song you want to listen first and then "OK". 6. Select the play mode (1 song, all the songs one by one, all the songs in random order). ... -
Page 11: Pictures
olume and switch between playback (one record, all records and all records sequentially in random rder). PICTURES You can view photos and images (the image would have written) in formats JPG, BMP, PNG and TIFF. Browse photos, you can manually buttons "Right", "Left", "Back", "Forward" or automatically, in the "slide how". Back to the main menu by clicking (pressing would write, as she clicks on something too popular), click "Back" button or "Menu. Menu is displayed: Photo Screen Select the screen if you want to view photos taken from the screen device. To view photos, select the thumbnail im age and click "OK" to expand it to full screen. Context menu section called "Pictures" Open Inform at ion ove View : List Thumbnails Detailed o The nam es on the st Book Title Filen ame o Filter ... -
Page 12: Configuration
Device Information From the section "Settings" you can see a summary and detailed information about the device. The screen displays a device model, serial number, code hardware platform, firmware version, total an d free amount of internal memory and microSD‐memory card. pen the "Settings" and select Device Information. Click "OK" to close the dialog pops up or "More" to iew complete information. gu ge / Language To c an ge the language interface Poc ketBook 602 : 1. Open the "Settings" from the main menu. 2. Select Language / Language. 3. A pop‐up list of available languages. Select your preferred language and click "OK". Changes take effect after you exit the Settings section. Key oa rd To c an ge the keyboard layout: 1. Open the "Settings" from the main menu and select Keyboard. 2. A pop‐up list of available layouts. Select the desired layout and click "OK". Changes take effect after you exit the Settings section. ppearance ... - Page 13 Choose a convenient orientation of the screen utomatic, portrait, landscape 90 °, 270 ° landscape or portrait 180 °. Open the Settings ‐ Appearance, lick on the item screen orientation, and select the desired value from the popup list. Select the screen saver at startup pen the Settings ‐ Appearance, click on the item screen saver at startup and select the desired value rom the popup list. Select the screen saver is turned off pen the Settings ‐ Appearance, click on the item screen saver is turned off and select a value from the opup list. Set the display mode of text pen the Settings ‐ Appearance, click on the item display text and select a value from the popup list: no moothing, with smoothing or saturated. Set the action for each key device o do this, open Settings and click on the destination keys. A list of key devices with different modes of pressing. Click on the row with the desired key and then set the action from the popup list. For sho rt pressing t he On / Off can be assigned the following actions: • Keyp ad • Main Menu • Exit • Last ope n bo oks • Screenshot • Profile ...
- Page 14 • main menu, or • the last opened book. Connection To c on igure settings for the device, open th e section "Settings" and click on the line "Connection" 1. Set the device name a) Click "OK" on the appropriate line; b) appears on‐screen keyboard; c) Enter the name that will be used to connect PocketBook 602 with other devices; d) then click "OK" to save your changes and "Cancel" to turn the onscreen keyboard. 2. Set the mode of access to the network • Click "OK" on the line and select one of following modes: OFF, • Inclusive or • request permission. Select the p referred connection A pop‐up li st will list all available connections. ...
- Page 15 : • Proxy server • Proxy port • Username proxy • Proxy password i) In conclusion, check your connections. To do this, click Test connection. A dialog "Connect". If the wrong combination, you can view the event log. 5. Configure wireless WIFI a) Open the list of wireless connections and select the one that you want to configure. The default is not configured a connection called <a wireless connection №>. b) Click the "Connection Name", will appear on‐screen keyboard, enter the name that will be used to connect PocketBook 602 with WiFi; then click "OK" to save the changes and "Cancel" to turn the onscreen keyboard. c) a simila r "c onnection name" enter the network name (SSID). d) Specify the type of prot ection ‐ select from drop‐down list one of: • no • simple (WE P), • WPA‐Enterprise, •...
-
Page 16: Reading With E-Book
Service To go to the teams se rvice the device, open the Settings section and click on the bar service. Here yo u can: • Clear status • Calibrate gyroscopic sensor • Remove the authorization ADE elect the desired command from the list and follow the instructions on the screen. READING WITH EBOOK The device allows reading books in FB2, FB2.zi p, TXT, PDF, RTF, HTML, PRC, CHM, DJVU, DOC, EPUB, TCR. reliminary steps Download a book in memory PocketBook 602 Connect your device to a computer using micro USB‐cable. The internal device memory and micro SD ard will appear in the computer as two new disk. Using Windows Explorer or other programs, copy books in the correct folder in the device memory or on SD card. View the book in the "Reading" To open the book, go to the "Library". Press the "OK" click on the desired book. In case this is one of the last open book, you can open it from the main menu (I understand that from the Widget "Last open book" in the main menu). If you open a book before, it will be opened on the page on which it closed the last time. At the bottom of the screen will display a page where you are, the total number of pages, the current time and battery power. Immediately after the opening of some formats are counting the number of pages. efore the end of conversion in the bottom of the screen instead of the current page number and number f pages in the book will burn "...", while some functions will be temporarily unavailable. Main Features • Paging ... -
Page 17: Open Page In The Book
• Changing the screen orientation • Search word or phrase in the text books Paging o move forward one page, click "Right" or "Forward". To scroll back ‐ button "Left" or "Back". Long press he buttons allows you to skim in an accelerated mode (10 pages). Change font size While reading, you can switch between the 5‐th available size ont for text books. To do this, press the "Up". More fine‐tune the font can be done in the "Settings" menu hortc uts. Note: For books in a format DJVU change the font size is not available. Instead ou can then use the "Zoom" in the menu shortcuts. For PDF format font size can be changed only in ode "Reflow". Go to the links in the book ome formats allow you to quickly click on links inside the book. To follow a link, click "Down" to select he link, use the buttons "Left, Right, Up, Down" SHORTCUTS he menu is called "OK" in the mode of reading the book. It offers the following items: OPEN PAGE IN THE BOOK This menu item opens a window for selecting pages. Enter the desired page, then "OK", or you can rapidly ove to the first or last page of the book using the buttons "<<" or «>>». ... -
Page 18: Scale
Here you can choose convenient for you to orient the device. The orientation of the device is installed in ccordance with the selected icon. The choice is made by pressing the "Up", "Right", "Down", "Left". "OK" utton includes automatic detection of image orientation. SCALE In the b ooks of the PDF and DJVU You can zoom the page. Use "Right", "Lef t" to select the desired display mode, t he buttons "Up", "Down" adjusted scale. The following optio ns: • «4 pages", "9 pages" ‐ the preview mode, multiple pages per sheet; • "normal" ‐ one page on the screen, with the ability to scale; • "columns" ‐ designed for reading books that contain multiple columns on a page.To navigate the page in the "Columns" buttons "Up", "Down", when reaching the bottom of the sheet will go to the next column; • "arrangement" (Reflow) increases the readability of large format document. In this mode, the text is formatted on the screen width device. You can change the font size of the buttons "Up", "Down". In the "arrangement" can not display tables and some pictures. BOOKMARKS You can create up to 30 bookmarks in each book. Select the "Bookmarks" quick menu. On the right screen will pop up panel, which will have you create a bookmark, and will place the new (marked with an asterisk). To add a bookmark, click "OK", while on the tab marked with an asterisk. To open the bookmark, elect the desired and then click "OK". To delete a bookmark, select delete bookmarks, select it and hold lick "Remove." To cancel and switch to reading the book, click the Left. NOTES Sometimes it is useful to save the selected piece of the book in a separate notebook. To create a new note ... -
Page 19: Active Content
ACTIVE CONTENT Active content includes sections of the book, made during the reading of the book bookmarks and notes (in the content they are in the section where they were created). Use the Up / Down by the transition between paragraphs of the active content. Use the left / right jumps to previous / next page of active content. Pressing the «Home» in the paragraph of the active content, you should see a menu with the following functions: undo, open, rename, edit text, delete, configure, deploy item In the active content by default, all items (sections) are collapsed (in front of them is ""). To Expand / ollapse item, press and hold the button "OK" or press the button «Home», on the shortcut menu, choose " Expand / Collapse item). Selected section unfolds / folds. SEARCH Do you have the ability to quickly find the desired words or parts of words in the text books. On‐screen keyboard pops up, with which you can enter the desired word (see "Working with the keyboard). Once you enter the desired word, including "Search", and in the lower right corner of the screen will light up the Search icon. To move to found the words back, forward, use the button "Left" and "Right", respectively. ound words will be highlighted. To exit the "Search", click "OK". The search is not available for books in a ormat DJVU. DICTIONARY You can translate selected words. Arrow keys are used to select words on the page, "OK" ‐ switching between text window and the window dictionary. Also you can translate any word using the virtual keyboard. The device is pre Anglo‐Russian dictionary N. Queen. You may download additional dictionaries online www.pocketbook.com.ua. Also available converter, with which you can create a dictionary from a variety of free dictionaries available on the Internet. CONTENTS ... -
Page 20: Settings
o to the content of the book. This function is available for books in formats FB2, PDF, CHM, and only if the book is structured content. he tr ansition to structured content (FB2, PDF, CHM) ote: This feature is supported only for books in FB2, PDF, CHM with struct ured content. o access the contents of the book, click on Contents in the menu shortcuts. SETTINGS For books in FB2, TXT, RTF, HTML, PRC, and CHM, and PDF mode "Reflow", you can choose the most comfortable settings for the reader ‐ the type and font size, line spacing, the width of the page margins, and choose an encoding file format for books in TXT and HTML. TEXT TO SPEACH The user can listen to the text to start the feature Listen to the text, then click "OK" on the item "Voice" in the quick menu book. Part of the text is listening will be highlighted. To change the volume / ‐ (not clear here), stop listening ‐ Pause / Play. or cancel the action, press and hold "OK" in the listening text. To exit the main menu, press "Menu" or successively press "Return" ote: To change the language / voice, speed of speech and tone of voice of the text, the user must go to the " Settings" ‐ "Sound of the text" and set the necessary parameters. WORKING WITH TH E KEYBOARD To work with the keyboard buttons "Up", "Down", "Left", "Right" and click "OK". To speed up the work with the keyboard all the characters are divided into 5 zones. The first button executes a rapid transition in the middle of the selected area, then you can select the desired character of this zone. To switch the ... -
Page 21: Possible Problems And Solutions For Them
keyboard to Russian, Ukrainian and English languages, you must use the buttons "RUS", "RBM" and "ENG" ocated on the bottom of the button to switch the language, located on the bottom right. Long press the utton "Left" ‐ erasing the last character, "Up" button ‐ erase all entered text. POSSIBLE PROBLEMS AND SOLUTIONS FOR THEM PROBLE M: THE DEVICE DOES NOT TURN A DEVICE INCLUDE, BUT ARE ONLY UPLOAD SCREEN ossible reasons: Low battery. olution: Recharge the device. PROBLE M: BOOKS DO NOT OPEN SAYS " POSSIBLE THAT YOUR BOOK IS LOST OR PROTECTED" OR JUST NO THING HAPPENS. Possible causes: Damaged file of the book. Solution: If your book is uploaded to the website, boot it up again. If the file is normally called the PC, but refuses to open on the device can often help to save the book in another format. PROBLEM: TH E BOOKS IN HTML OPENS, BUT NOT DISPLAY CORRECTLY. For exam ple, empty pages, part of the te xt is absent, etc. ossible causes: HTML ‐ files may contain non‐text elements (frames, JAVA‐script, flash elements). olution: Save the page in a format TXT. PROBLEM: THE BOOK BEGINS, BUT INSTEAD RUSSI AN LETTERS ON THE SCREEN DISPLAYS VARIOUS CHARAC TERS, QUESTIONS, ETC. Possible causes: Incorrect encoding of the document. Solution: While reading the book, select the menu item "Settings" and change the encoding of the ... -
Page 22: Technical Specifications
b) In the background, runs a music player. It is the most energy‐intensive application device. On its activity can be found on the icon note at the bottom right corner. olution: Turn off the player. To do this, from the main menu, open the "Music" section and click "Stop" or " Pause" TECHNICAL SPECIFICATIONS Display 6'' E‐Ink® Vizplex 600x800, 166 dpi, b/w Processor Samsung® S3C6432 (533MHz) RAM: 256MB Memory Fixed: 2GB Operational system Linux® 2.6.28 Communications Wi‐Fi® (b/g); Bluetooth® 2.1; Micro USB (480 Mb/s) Memory Slot Micro SD to 32GB 3,5 mm audio jack; Audio Output speakers 2 x0.5W Accelerometer Available PDF (ADOBE DRM), EPUB (ADOBE DRM), PDF, EPUB, FB2, TXT, DJVU, RTF, Book formats HTML, CHM, DOC, TCR , FB2.ZIP Image formats JPEG, BMP, PNG, TIFF Audio formats MP3 Battery Li‐Polymer, 3.7V, 1530 mAh Size 132x182x10.6 mm ... -
Page 23: Safety Information
SAFETY INFORMATION 01. The EUT should be supplied by USB port from complied Limited Power Source of personal computer or notebook; 02. The EUT should be supplied by Adapter from complied Limited Power Source. AC Power: Manufacturer FLEET Model FCC050100U Rated output voltage DC 5V 1A Important: Changes or modifications to this product not authorized could void the EMC and...
