Trust START-LINE ACD-200 User Manual

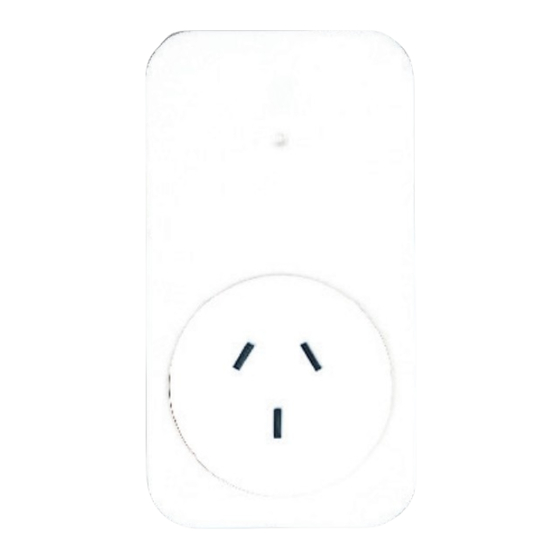

Mains socket dimmer, receiver
Hide thumbs Also See for START-LINE ACD-200:

Advertisement

Quick Links

Download this manual
START-LINE
SMART Home
Receiver ACD-200
USER MANUAL
Version 1.0
Visit www.trustsmarthome.com
for the most recent user manuals
MAINS SOCKET DIMMER

Advertisement

loading
Need help?

Need help?

Do you have a question about the START-LINE ACD-200 and is the answer not in the manual?

Questions and answers

Related Manuals for Trust START-LINE ACD-200

Summary of Contents for Trust START-LINE ACD-200

  • Page 1 START-LINE SMART Home Receiver ACD-200 USER MANUAL Version 1.0 Visit www.trustsmarthome.com for the most recent user manuals MAINS SOCKET DIMMER...

  • Page 2: Technical Specifications

    ACD-200 MAINS SOCKET DIMMER COMPATIBILITY FUNCTIONALITY This receiver works with all Mains socket dimmer to dim lights wirelessly. trust smart h transmitters. TECHNICAL SPECIFICATIONS Power supply input 220-240 VAC 50 Hz RF frequency 433,92 MHz RF range Up top 30m indoor/ 70m outdoor (optimal conditions)

  • Page 3: Maximum Load

    LIFE-SUPPORT Never use ome products for life- HANDLING trust smart h support systems or other applications in which Do not drop, knock, or shake the device. Rough equipment malfunctions can have life-threatening handling can break internal circuit boards and fine consequences.
  • Page 4 ACD-200 MAINS SOCKET DIMMER 1 sec. 1. Connect lamp and place receiver 2a. Assign transmitter code First check if the lamp is turned on. Then Press the learn-button on the receiver for 1 plug the lamp into the receiver and plug second.
  • Page 5 ACD-200 MAINS SOCKET DIMMER Send an ON-signal with any trust smart h The receiver will switch on/off 2 times to con- transmitter while the learn-mode is active, to firm the code has been received. The receiver assign the code to the receiver’s memory.

  • Page 6: Important Note

    Therefore, you should always first. Immediately afterwards, the lights are set to set the correct dimming range for the connected the dim-level that you have chosen. lamps. First, switch on the lamp with a trust smart ome transmitter (for example: a remote control).
  • Page 7 ACD-200 MAINS SOCKET DIMMER stand 8 stand 7 stand 6 stand 5 ç stand 4 ç stand 3 stand 2 stand 1 Press the connect button 3 times in quick Send an off-signal with the transmitter. Again, the succession. The LED indicator will flash and the lights will switch to the maximum light level first.
  • Page 8 ACD-200 MAINS SOCKET DIMMER stand 8 stand 8 stand 7 stand 7 stand 6 stand 6 stand 5 stand 5 ç ç stand 4 stand 4 ç ç ç stand 3 stand 3 stand 2 stand 2 stand 1 stand 1 Each time you send an off-signal, the dim-level To increase the dim-level with 1 step, press the on- will be decreased with 1 step.
  • Page 9 ACD-200 MAINS SOCKET DIMMER A4. Save the correct dimming range Now, press the connect button 3 times in quick succession to exit the dimming range mode. The dim-level that you have chosen will be saved and the connected lights will switch on and off twice.
  • Page 10 ESL or dimmable LED) has a different dimming range. Therefore, you should always set the correct dimming range for the connected lamps. First, switch on the lamp with a trust smart ome transmitter (for example: a remote control). dimmable ESL...
  • Page 11 ACD-200 MAINS SOCKET DIMMER stand 8 stand 7 stand 6 stand 5 ç stand 4 ç stand 3 stand 2 stand 1 Press the connect button 2 times in quick Send an off-signal with the transmitter. succession. The LED indicator will flash and the Immediately afterwards, the lights will switch to light will switch to a certain dimming value (this is a lower level (1 step less bright).
  • Page 12 ACD-200 MAINS SOCKET DIMMER stand 8 stand 8 stand 7 stand 7 stand 6 stand 6 stand 5 stand 5 ç ç stand 4 stand 4 ç ç ç stand 3 stand 3 stand 2 stand 2 stand 1 stand 1 Each time you send an off-signal, the dim-level To increase the dim-level with 1 step, press the on- will be decreased with 1 step.
  • Page 13 ACD-200 MAINS SOCKET DIMMER B4. Save the correct dimming range Now, press the connect button 2 times in quick succession to exit the dimming range mode. The dim-level that you have chosen will be saved and the connected lights will switch on and off twice.
  • Page 14 ACD-200 MAINS SOCKET DIMMER 5. Manual operation with a transmitter 1. Press ON once to switch the receiver on. 2. Press ON again to activate the dim-mode. The light will slowly dim. 3. Press ON a third time to set the desired light intensity. 4.
  • Page 15 ACD-200 MAINS SOCKET DIMMER 1 sec 1 sec. Single code delete (1) Switch the receiver to stand-by (2) Press the learn-button for 1 second. The learn-mode will be active for 15 seconds and the LED-indicator will blink slowly. (3) While the learn-mode is active, send an OFF-signal with a specific transmitter to delete that code.
  • Page 16 ACD-200 MAINS SOCKET DIMMER 8 sec. 1 sec. Full memory delete 1. Switch the receiver to stand-by 2. Press and hold the learn-button on the receiver (approx. 8 sec.) untill the LED-indicator starts blinking fast. The delete mode will be active for 15 seconds. 3.
  • Page 17 ACD-200 MAINS SOCKET DIMMER Trust International B.V. declares that this product is in compliance with the essential requirements and other relevant provisions WEEE: If possible, dispose of this product at a recycling center. Do not dispose of this product with the household waste.
  • Page 18 ACD-200 MAINS SOCKET DIMMER Declaration of conformity Trust International B.V. declares that the product: trust smart h model: ACD-200 MAINS SOCKET DIMMER item number: 75092 intended use: indoor is in compliance with the essential requirements and other relevant provisions of the following directives: EMC Directive, Low Voltage Directive and R&TTE Directive.
