Bunn Soft Heat Installation & Operating Manual
1.5 gallon
Hide thumbs
Also See for Soft Heat:
- Use & care instructions (2 pages) ,
- Illustrated parts catalog (12 pages) ,
- Installation and operating manual (4 pages)
Table of Contents
Advertisement
Quick Links

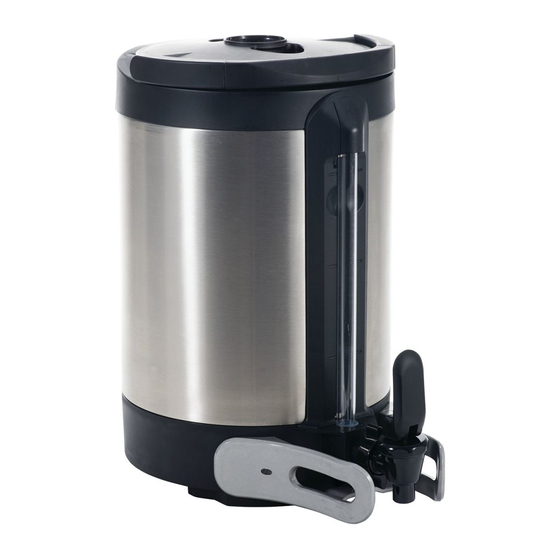

Soft Heat
®
Server
1.5 Gallon
INF SERIES
INSTALLATION & OPERATING GUIDE
BUNN-O-MATIC CORPORATION
POST OFFICE BOX 3227
SPRINGFIELD, ILLINOIS 62708-3227
PHONE: (217) 529-6601
FAX: (217) 529-6644
To ensure you have the latest revision of the Operating Manual, Illustrated Parts Catalog, Pro-
gramming Manual, or Service Manual, please visit the Bunn-O-Matic website, at www.bunn.com.
This is absolutely FREE, and the quickest way to obtain the latest catalog and manual updates.
For Technical Service, contact Bunn-O-Matic Corporation at 1-800-286-6070.
53431.0001D 01/18 ©2017 Bunn-O-Matic Corporation
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Bunn Soft Heat
Summary of Contents for Bunn Soft Heat
- Page 1 To ensure you have the latest revision of the Operating Manual, Illustrated Parts Catalog, Pro- gramming Manual, or Service Manual, please visit the Bunn-O-Matic website, at www.bunn.com. This is absolutely FREE, and the quickest way to obtain the latest catalog and manual updates.
- Page 2 AS SPECIFIED HEREIN, TO REPAIR, REPLACEMENT OR REFUND. In no event shall BUNN be liable for any other damage or loss, including, but not limited to, lost profits, lost sales, loss of use of equipment, claims of Buyer’s customers, cost of capital, cost of down time, cost of substitute equipment, facilities or services, or any other special, incidental or consequential damages.
- Page 3 CE REQUIREMENTS • This appliance must be installed in locations where it can be overseen by trained personnel. • For proper operation, this appliance must be installed where the temperature is between 5°C to 35°C. • Appliance shall not be tilted more than 10° for safe operation. •...

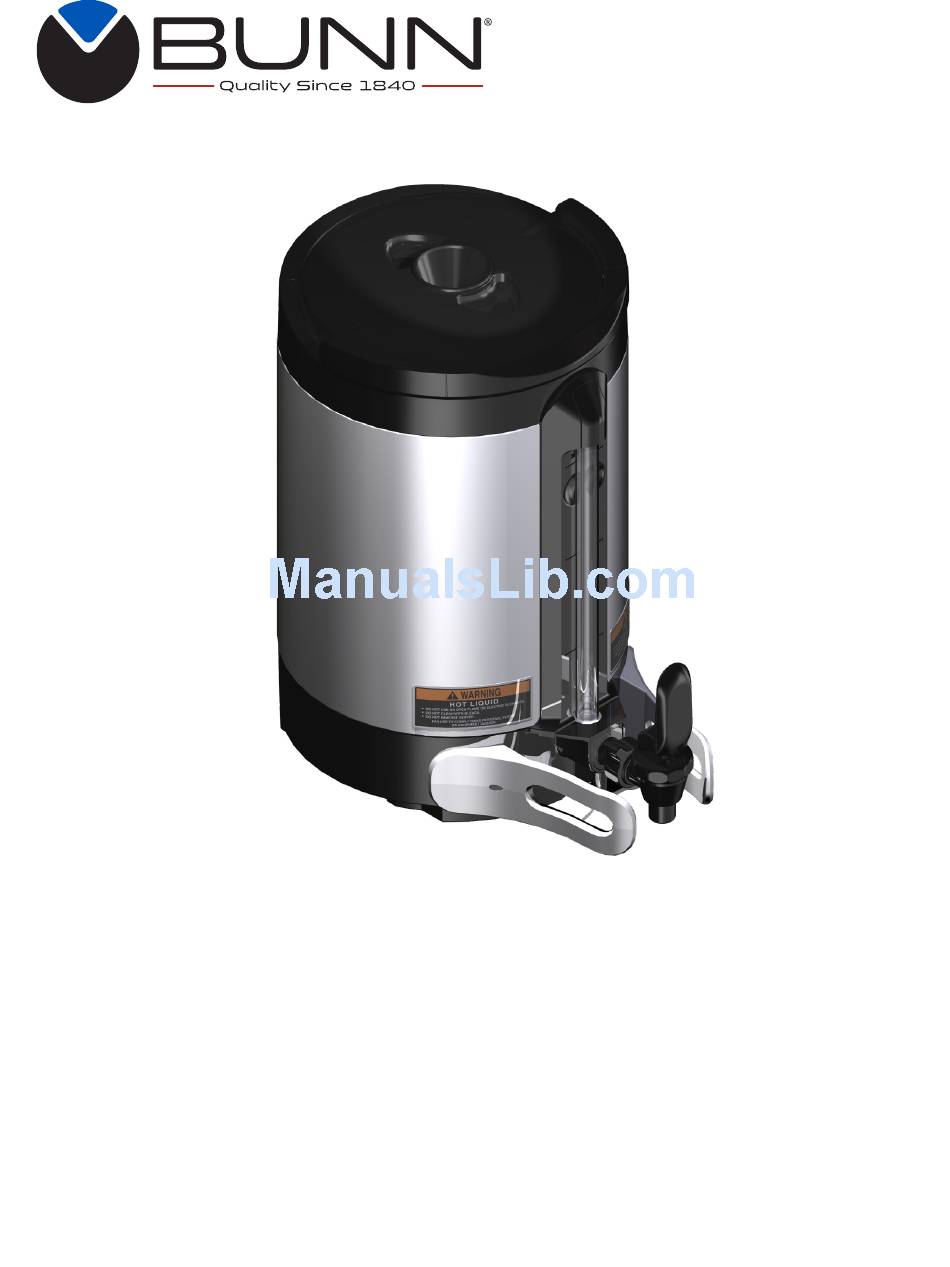

- Page 4 INTRODUCTION This server allows portable storage and dispensing of up to 1½ gallons of hot beverage at remote locations. Coffee can be brewed directly into the server without removing the cover when used with a BUNN INFUSION ® SH brewers. The spill-resistant design lessens the chance of hot beverage burns and splashes.
- Page 5 CLEANING - continued 5. Clean the inlet tube with the supplied brush (00675.0000) using the cleaning product solution. 6. Press down on the sight gauge top (as shown) to release the sight gauge tube. 7. Remove sight gauge tube and bottom seal. 8.
- Page 6 CLEANING - continued 11. Using supplied brush, thoroughly scrub the faucet body. 12. Allow the parts to soak in the sanitizer solution for a minimum of five (5) minutes. Remove the faucet parts from the sanitizer solution, and allow to air-dry overnight. 13.
-
Page 7: Circuit Board
SCHEMATIC WIRING DIAGRAM FOR SH SERVER WHITE BLACK GREEN LIQUID PROBE CIRCUIT BOARD BLACK TANK ORANGE TEMP SENSOR BLACK WHITE WHITE 72W 24VDC HEATER BLACK – 24VDC 24VOLTS DC 53431.1 030617...
