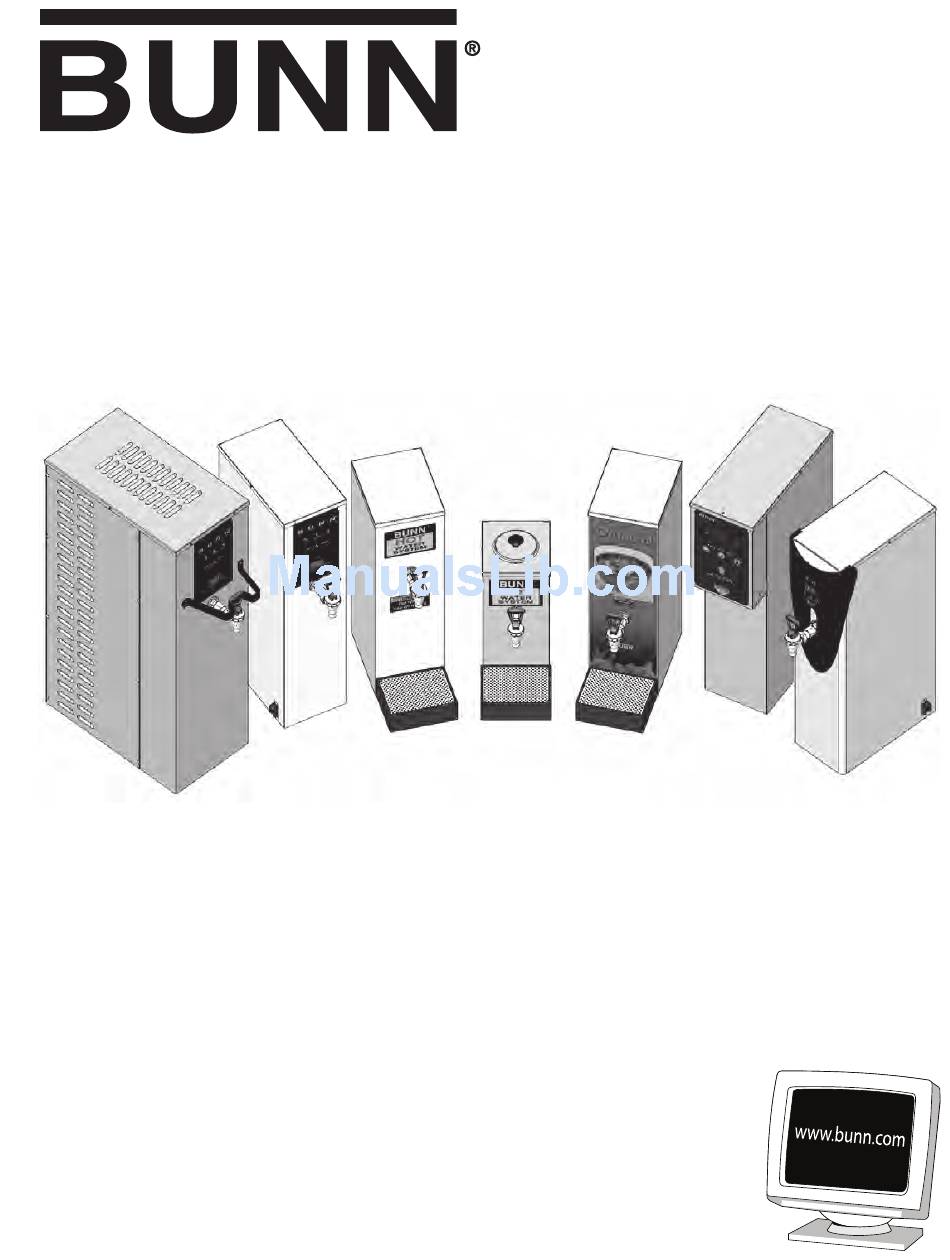

INSTALLATION & OPERATING GUIDE

BUNN-O-MATIC CORPORATION OF CANADA

To ensure you have the latest revision of the manual or to obtain the illustrated parts catalog, please visit

the Bunn-O-Matic website, at www.bunn.com. This is absolutely FREE, and the quickest way to obtain

the latest catalog and manual updates. Contact Bunn-O-Matic Corporation at 1-800-263-2256 to obtain

a paper copy of the required Illustrated Parts Catalog mailed via Canada Post.

280 INDUSTRIAL PARKWAY SOUTH,

AURORA, ONTARIO, L4G 3T9

PHONE: (905) 841-2866 FAX: (905) 841-2775

Hot Water

Dispensers

Supercedes

10052.7000; 10010.7000; 10267.0000

10420.7000; 10889.7000; 39338.7000

39338.7001; 44306.7000

Table of Contents

Summary of Contents for Bunn H5E

Page 1 To ensure you have the latest revision of the manual or to obtain the illustrated parts catalog, please visit the Bunn-O-Matic website, at www.bunn.com. This is absolutely FREE, and the quickest way to obtain the latest catalog and manual updates. Contact Bunn-O-Matic Corporation at 1-800-263-2256 to obtain a paper copy of the required Illustrated Parts Catalog mailed via Canada Post.
Page 2: Warranty
BUNN’S SOLE OPTION AS SPECIFIED HEREIN, TO REPAIR, REPLACEMENT OR REFUND. In no event shall Bunn be liable for any other damage or loss, including, but not limited to, lost profits, lost sales, loss of use of equipment, claims of Buyer’s customers, cost of capital, cost of down time, cost of substitute equipment, facilities or services, or any other special, incidental, consequential or punitive damages.
Page 3: Table Of Contents
USER NOTICES ...................... 4 ELECTRICAL REQUIREMENTS ................5 PLUMBING REQUIREMENTS ................. 6 INITIAL SET-UP (H5E, H5X, H5-PC, H5 ELEMENT, H10X) ........6 INITIAL SET-UP H5M, HW2, OHW ................. 7 OPERATING CONTROLS (H5-PC ONLY) ..............8 ADJUST DISPENSE VOLUME (H5-PC ONLY) ............8 PROGRAMMING (H5E, H5X, H5-PC, H10X) ............
Page 4: User Notices
BUYING OR USING THIS PRODUCT. OU D'UTILISER LE PRÉSENT PRODUIT. THIS EQUIPMENT IS ENERGIZED AT ALL TIMES UNLESS L' ÉQUIPEMENT EST TOUJOURS SOUS TENSION ELECTRICALLY DISCONNECTED. LORSQU'IL N'EST PAS DÉBRANCHÉ. 00831.0002K 17/11 © 1984 BUNN-O-MATIC CORPORATION 00831.0002 37881.7002 46819 061212...
Page 5: Electrical Requirements
ELECTRICAL REQUIREMENTS WARNING - The dispenser must be disconnected from the power source until specified in Initial Set-Up. Refer to Data Plate on the Brewer, and local/national electrical codes to determine circuit requirements. 120 volt ac models 230 volt ac models 208 &...
Page 6: Plumbing Requirements
½˝ water supply line. At least 18 inches of an FDA approved flexible beverage tubing, such as reinforced braided polyethylene or silicone, before the dispenser will facilitate movement to clean the countertop. Bunn- O-Matic does not recommend the use of a saddle valve to install the dispenser. The size and shape of the hole made in the supply line by this type of device may restrict water flow.
Page 7: Initial Set-Up H5M, Hw2, Ohw
NOTE - Due to the tank capacity and heater size, this product should be used only for dispensing a few cups of hot water at a time. (Larger capacity Bunn-O-Matic hot water dispensers are available.) 46819 043012...
Page 8: Operating Controls (H5-Pc Only)
NOTE: The dispenser should be at operating temperature before setting dispense volumes. 1. Press and hold the hidden programming button (c) located under the ® next to the BUNN logo on the front of the dispenser until the 3 LED's begin flashing from the left to the right. Release the button.
Page 9: Programming (H5E, H5X, H5-Pc, H10X)
PROGRAMMING - H5-E, H5-PC, H5X, H10X When power is applied to the dispenser, the display located on the bottom of the main circuit board will show the software version for 5 seconds, and then it will show the model number (see chart below) it will then go to (-).
Page 10 PROGRAMMING - H5-E, H5-PC, H5X, H10X Continued LEVEL 2 PROGRAMMING H1 - DISPENSE TEMPERATURE LOCKOUT - PORTION CONTROL ONLY (WILL NOT DISPLAY ON OTHER MODELS) 1. To enter Level 2 Programming, press and hold the center button until H1 ap- pears on the display (approximately 6 seconds) then release button.
Page 11: Programming (H5 Element)
4. Install top cover, connect dispenser to power TEMP source. ENERGY SAVER MODE ÉCONOMISEUR D’ÉNERGIE WARNING CAUTION Hot Water Eau Chaude Step backward Programming the dispenser: 1. Press and hold upper hidden button (bottom center of “BUNN” logo) until “P1” is displayed. Continued 46819 061212...
Page 12 PROGRAMMING - H5-ELEMENT Continued 2. The display will now show the model number. (H5H) 5 Gallon High Voltage Unit (200-240V) (H5L) 5 Gallon Low Voltage Unit (100-120V) Now scroll with the (+/-) buttons through the models listed above until the display matches the model you are working with.
Page 13 PROGRAMMING - H5-ELEMENT Continued LEVEL 2 PROGRAMMING H2 - F° OR C° SELECTION 1. To enter Level 2 Programming, press and hold the upper hidden button until H2 appears on the display. Release the upper hidden button. The display will show either FAH (Degrees in Fahrenheit) or CEn (Degrees in Centigrade).
Page 14: Draining The Dispenser
CLEANING The use of a damp cloth rinsed in any mild, non-abrasive, liquid detergent is recommended for cleaning all surfaces on Bunn-O-Matic equipment. WALL MOUNTED INSTALLATION - 5 GALLON MODELS ONLY If the dispenser is wall mounted, the bottom of the dispenser should be at the same height as a counter or table top.
