Brewing Coffee
Soft Heat
Use & Care Instructions
Brewing Coffee

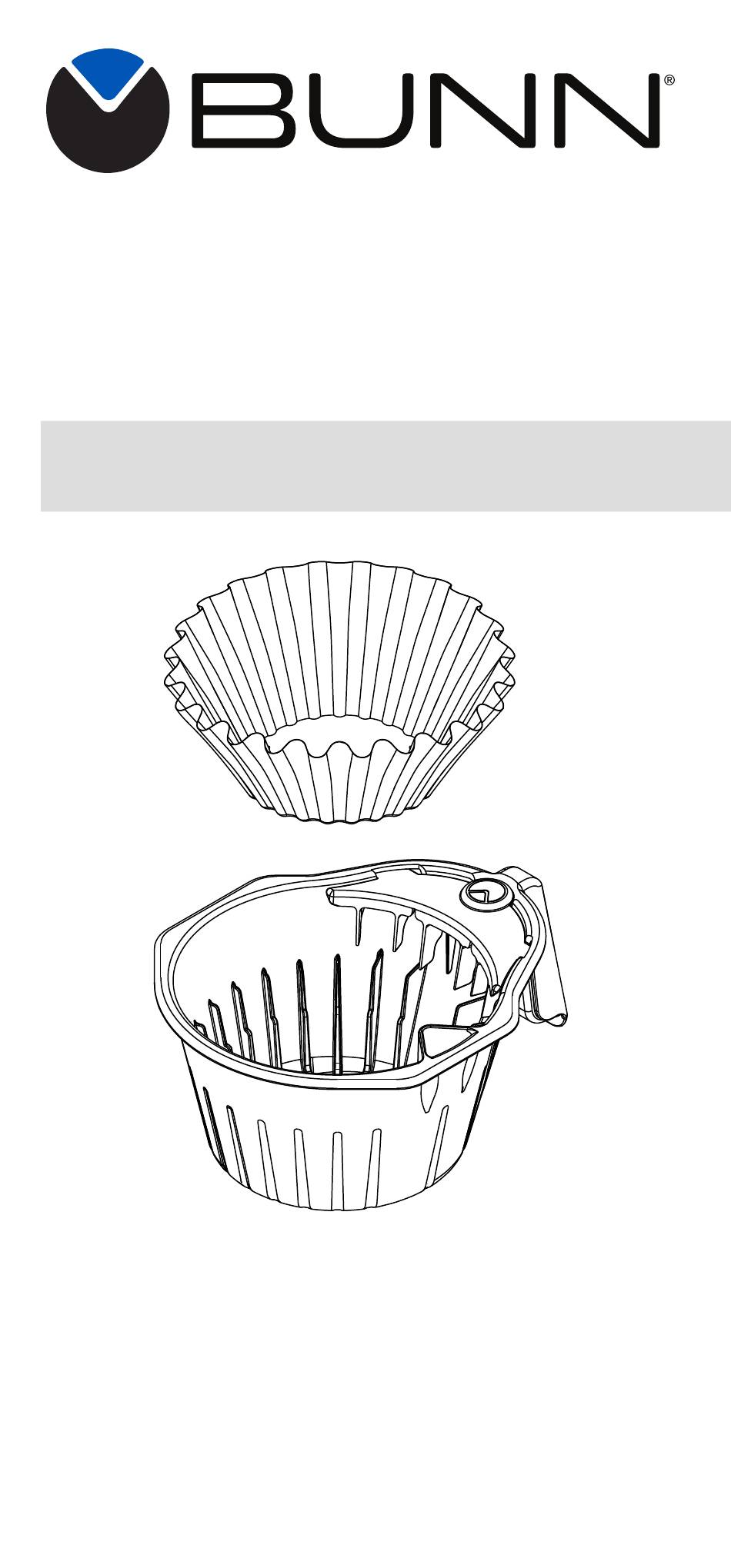

Insert a BUNN filter into a
clean brew funnel.
For two hopper grinders,
select coffee type by
pressing "RIGHT" or
"LEFT" hopper.
Gently shake funnel to
spread the grounds evenly.
Press and release the
Insert a BUNN filter into a
te
"ENABLE BREW" button.
clean brew funnel.
Press the assigned BREW
button (A, B, or C).
®
Brewer & Server
If using pre-ground coffee,
simply pour fresh coffee
into filter.
Slide the funnel into the
funnel rails of the brewer.
The
NOW BREWING with the
remaining brew time.
Press the GRIND button to
fill the funnel.
Press the Batch Size button
according to the amount of
coffee in the filter.
display
will
If grind
place fu
Place a
under
handle
the lid.
read
The wo
read on

Advertisement

loading
Need help?

Need help?

Do you have a question about the Soft Heat and is the answer not in the manual?

Questions and answers

Related Manuals for Bunn Soft Heat

Summary of Contents for Bunn Soft Heat

  • Page 1 Brewing Coffee ® Soft Heat Brewer & Server Use & Care Instructions Brewing Coffee If using pre-ground coffee, Insert a BUNN filter into a If grind simply pour fresh coffee clean brew funnel. place fu into filter. For two hopper grinders,...
  • Page 2 If using pre-ground coffee, simply pour fresh coffee into filter.
  • Page 3 If grinding fresh coffee, place funnel in grinder.
  • Page 4 For two hopper grinders, select coffee type by pressing “RIGHT” or “LEFT” hopper.
  • Page 5 Press the GRIND button to fill the funnel.
  • Page 6 Gently shake funnel to spread the grounds evenly.
  • Page 7 Slide the funnel into the funnel rails of the brewer.
  • Page 8 Place an empty server under the funnel. Rotate handle forward to lock the lid.
  • Page 9 Press and release the “ENABLE BREW” button.
  • Page 10 Press the Batch Size button according to the amount of coffee in the filter.
  • Page 11 Press the assigned BREW button (A, B, or C).
  • Page 12 display will read NOW BREWING with the remaining brew time.
  • Page 13 The word DRIPPING will read on the display.
  • Page 14 When dripping has stopped, discard the used grounds and filter.
  • Page 15 Clean and Sanitize the funnel.
  • Page 16 Every Day: Wipe the damp cloth. spreayhead panel and the entire outside surface of 54503.0000A 09/17 ©2017 Bunn-O-M the brewer with a clean damp cloth.
  • Page 17 Once a week: Remove the sprayhead by turning in a counter-clockwise direction.
  • Page 18 Disassemble and thoroughly rinse the sprayhead. The holes must be open and clear of any mineral deposits.
  • Page 19 Use the long end of the sprayhead cleaning tool to clean the sprayhead outlet fitting.
  • Page 20 Re-assemble the sprayhead and install it onto the brewer.
  • Page 21 Cleaning the Lid A Cleaning the Lid Assembly Completely drain the server. Grasp the lid by the Rotate handle back to finger holds and lift the release the lid lock. lid assembly straight u Cleaning the Faucet and Sight T Completely drain the server.
  • Page 22 Grasp the lid by the finger holds and lift the lid assembly straight up.
  • Page 23 Clean the inlet tube with the supplied brush (00675.0000) using a mild soap solution. Rinse lid assembly thoroughly with clean water.
  • Page 24 CAUTION: DO NOT submerge the server in water. Damage to internal components may result.
  • Page 25 Cleaning the Faucet a Cleaning the Faucet and Sight Tube sight gauge tube bottom seal Press down on the sight gauge top Turn the faucet wingnut to release the sight gauge tube. clockwise to remove the Remove the sight gauge tube and faucet from the dispense sight gauge tube bottom seal.
  • Page 26 Turn the faucet wingnut clockwise to remove the faucet from the dispenser.
  • Page 27 Unscrew the faucet cap and disassemble all the faucet parts.
  • Page 28 Transfer the sight gauge and faucet parts to a sink with a soap solution using a mild, non-citrus, non-abrasive, liquid detergent.
  • Page 29 Using supplied brush scrub the faucet body and sight gauge tube.
  • Page 30 Rinse all parts in the second sink with clean hot water.
  • Page 31 min. Transfer the parts to a sink filled with non-chlorine sanitizing solution. Allow the parts to soak in the sanitizing solution for a minimum of five (5) minutes.
  • Page 32 MIN. Remove the faucet parts from the sanitizing solution, and allow to air-dry overnight. Reassemble faucet.
  • Page 33 Cleaning the Se Cleaning the Server Clean the faucet shank Fill server wi using the supplied solution, and brush (00675.0000) clean inside and cleaning solution. using a SOFT cloth or brus Clean the faucet shank thoroughly ri fresh water. using the supplied brush (00675.0000) and cleaning solution.
  • Page 34 Fill server with a wash solution, and thoroughly clean inside of server using a SOFT, Non-abrasive cloth or brush. Drain and thoroughly rinse using fresh water.
  • Page 35 Re-install sight gauge seal and sight gauge tube. Re-attach faucet to server shank. USE CAUTION: Do Not over-tighten faucet wing nut - HAND TIGHTEN ONLY.
  • Page 36 Fill the server with non-chlorine sanitizing solution, and let server sit for five (5) minutes, then drain through fully open faucet.
  • Page 37 Clean the outside surface of the server using a clean damp cloth.
