Check Required Hardware
Step 1 — Check Required Hardware
Item
1 MS-Connect 5100
2 Microscan Reader (one per Multidrop address)
MS-Connect 5100 Power Supply (24VDC)
3
Reader Power Supply (24VDC; one required per reader)
4 Programming Cable, USB, Type A to Type B, 6 ft.
5 RS-232 Host Cable, 9-pin to RJ12, 6 ft.
6 MS-Connect 5100 Concentrator Cable, 25-pin to RJ45, 10ft., gender changer
7 IC-332 Adapter (5-volt readers only)
8 IB-131 Interface Box
9 IB-150 Kit, with reader cable, 6 ft.
10 Multidrop Cable, 10 ft. (Gender changer required to connect IB-131 and IB-150)
11 Object Detector (optional)
Note: The Multidrop configuration shown above is just one example of configuration options. Any
combination of Microscan readers and interface boxes can be used in the Multidrop network. See
Step 7, Set Up Software, for more specific information about the cabling for each MS-Connect
5100 port.
1-2
Description

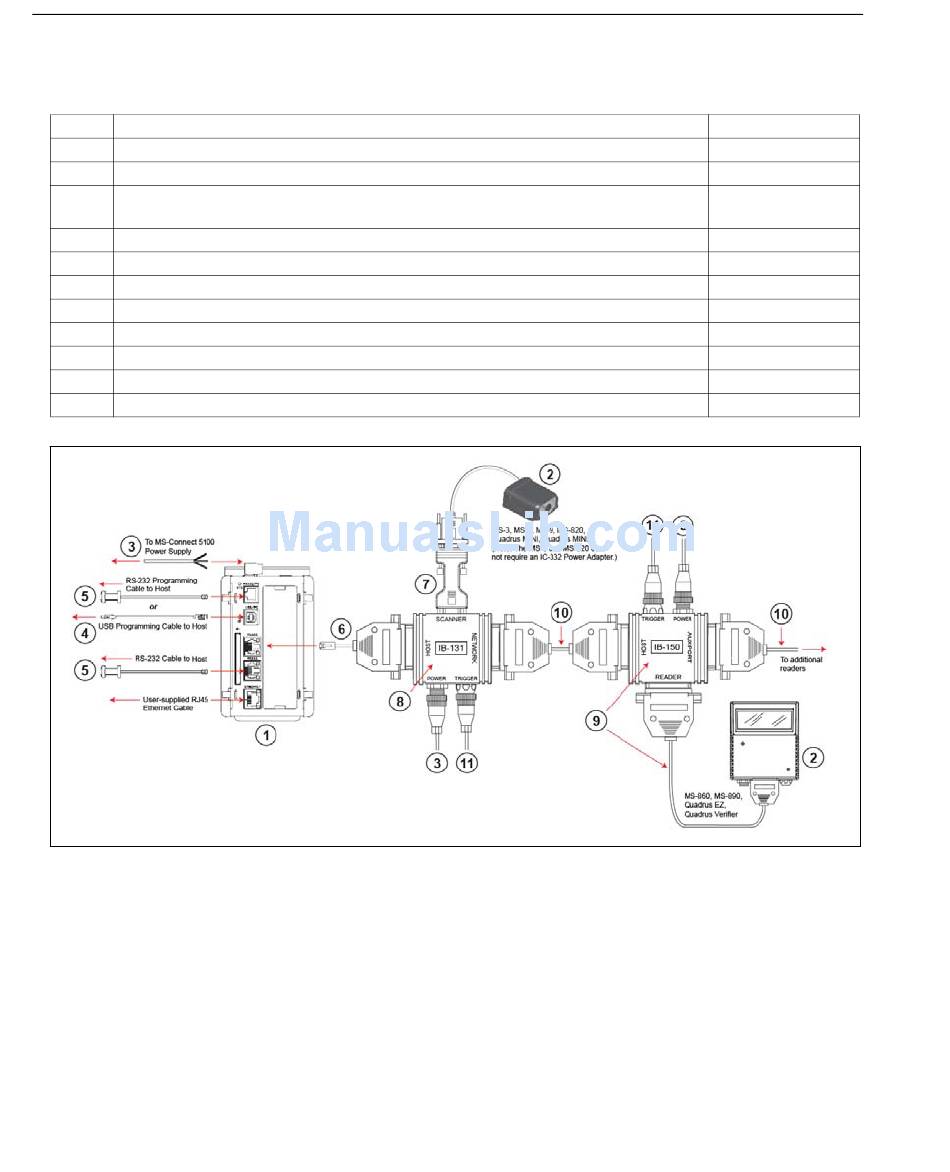

Multidrop Network Hardware
Part Number
FIS-5100-0001G
FIS-XXXX-XXXXG
97-100004-15
61-000112-01
61-000108-01
61-000113-01
FIS-0001-0035G
99-000018-01
98-000040-02
61-100030-03
99-000017-01
MS-Connect 5100 User's Manual
