Install the MS-Connect 5100 Unit
Step 2 — Install the MS-Connect 5100 Unit
Mount the MS-Connect 5100 to a DIN Rail
The DIN rail should be positioned horizontally so that the unit's ventilation holes are vertical
in relation to cabinet orientation.

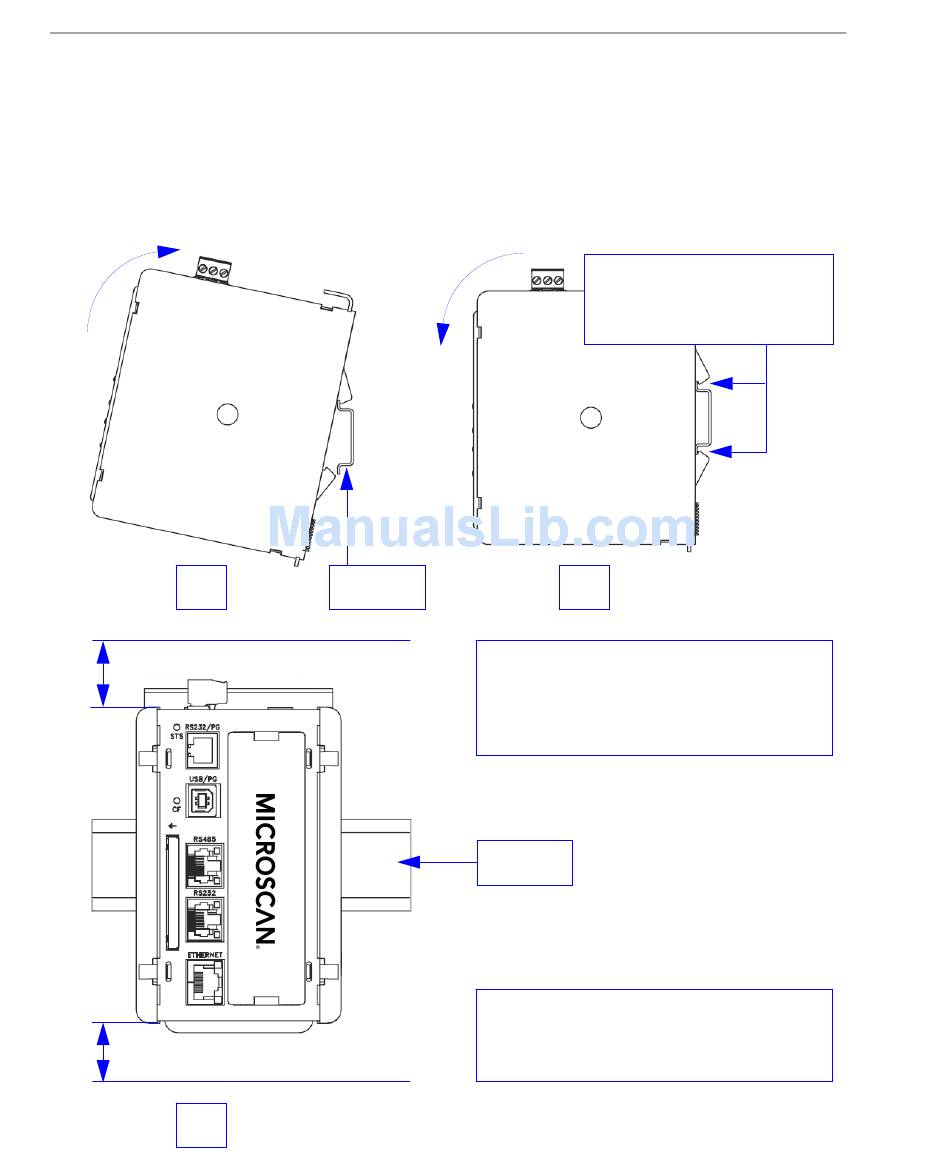

Attach the MS-Connect 5100 to the DIN rail as shown below.
1
1.00" min. clearance
1.00" min. clearance 1.00" min. clearance
3
1-4
DIN rail
Note: A minimum clearance of 1 inch
(25.4 mm) should be maintained above
and below the unit in order to ensure
proper thermal regulation.
DIN rail
Note: For an alternate mounting option,
see
page A-8.
The clamps at the back of
the unit should snap
securely onto the DIN rail.
2
Mounting to Flat Surfaces
MS-Connect 5100 User's Manual
on
