Set Up Software
Add Devices

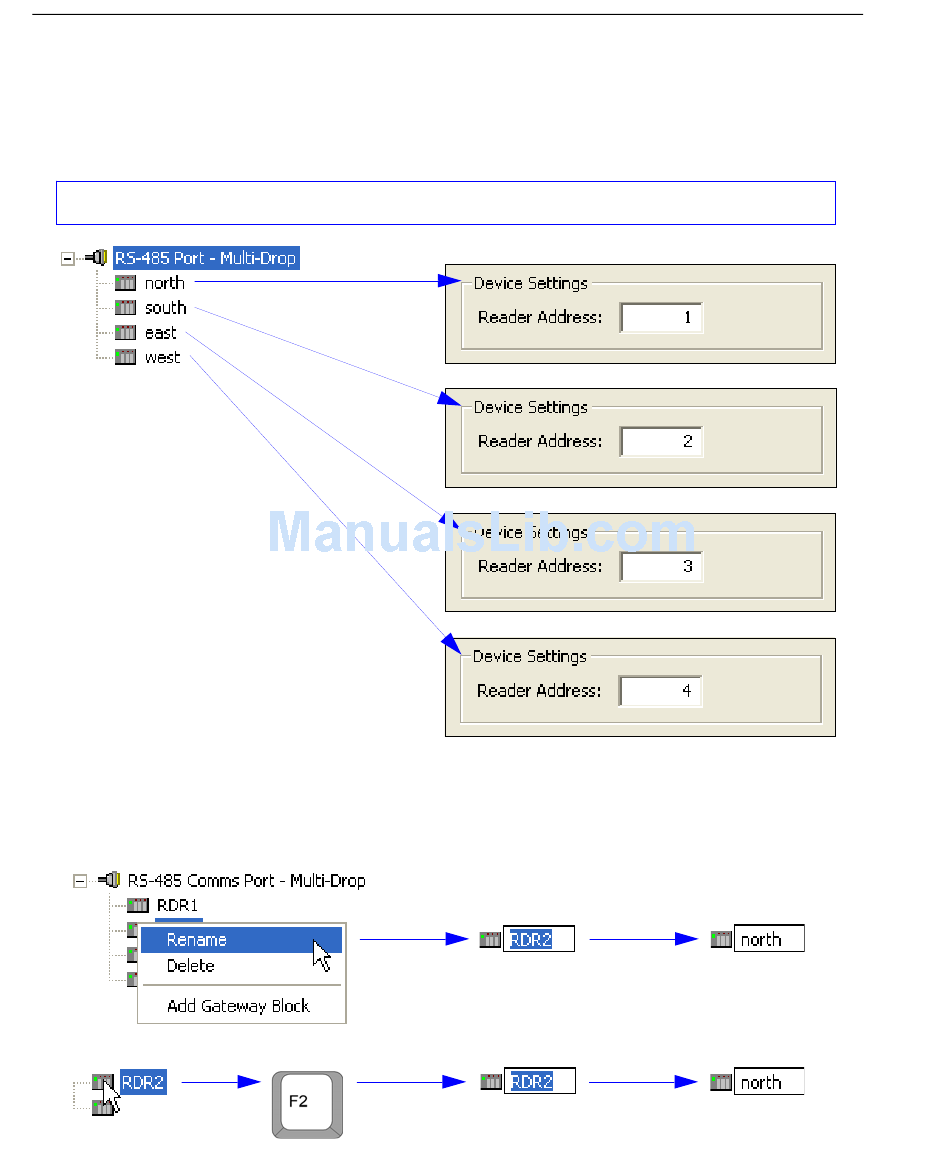

The MS-Connect 5100 supports up to 32 Microscan readers in a Multidrop network. After
all devices (readers) in the network have been added, you must assign a station number
(Multidrop address) to each.
Each reader must be assigned its own Multidrop address when it is added to the network.
Renaming a Device
You can rename each device shown in the tree control to reflect specific characteristics of
your application, as in the example shown below. There are two ways to rename a device:
• Right-click the device icon and select Rename, then type the new name.
• Or, select the device and press the F2 key, then type the new name.
